High Power LED Street Light 150w 4000k 17700Lm
| Power: | 150 W |
| LED efficiency: | 120 Lm/w |
| Color Temperature(CCT): | 4000 K |
| Luminous Flux (LM): | >17700 LM |
| Certification: | CE, Rohs, SAA, C-Tick, UL |
| Warranty: | 5 Year |
Product benefits
- Industry leading optical control and adjustable output
- Good corrosion resistance
- Independent power design
- Hurricane resistant level 16
- All aluminum whole lamp radiator, air duct design innovation
- A compact lightweight construction
- Provides additional benefits of energy savings
- Significantly reduced relamp maintenance costs.
Areas of application
- Municipal Lighting
- Roadway Lighting
- Government Facilities Lighting
- Recreation & Public Venue Lighting
- Airport Lighting
- Petroleum & Convenience Lighting
Product features
- Very bright and functional outdoor LED luminaires
- Efficacy up to 130 LPW
- Input Voltage: 85-265VAC
- Meanwell Driver
- Cree or Bridgelux chip
- Type of protection: IP65
| Attribute | Value |
|---|---|
| Item No.: | OS-SML-150W |
| Product Type: | Street Light |
| Warranty: | 5 Yrs |
| Certificates & standards: | SAA, C-tick, CE, Rohs, UL |
| Energy efficiency class: | A+ |
| IP65 | |
| Yes | |
| Temperature range in operation: | -20…+50 °C |
| Temperature range at storage: | -20…+80 °C |
| Attribute | Value |
|---|---|
| Body material: | Aluminum |
| Product color: | Grey |
| Cover material: | Polycarbonate (PC) lens |

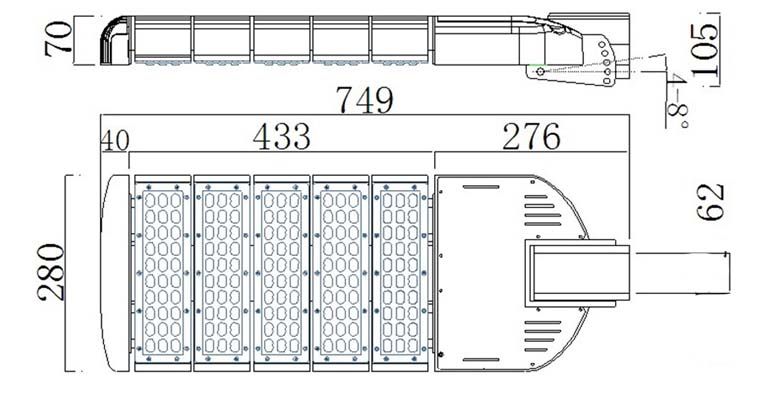

| Length: | 749 mm |
| Width: | 280 mm |
| Depth: | 105 mm |
| Mounting Hole Size: | D62mm |
| Weight (Unpackaged Single Unit): | 9.35 kg |
| Attribute | Value |
|---|---|
| Power Consumption: | 150.0 Watts, Max 200W |
| Voltage Range: | 85-265 V |
| Type of current: | AC |
| Nominal current: | 4500 mA |
| Frequency Range: | 50/60 Hz |
| Power Factor: | >0.95 |
| Dimming: | Non-dimmable |
| LVD Certified: | Yes |
| EN: | EN-60598 |
| Attribute | Value |
|---|---|
| Luminous flux | 15000-19500 lm |
| Lumens per Watt: | 120.0 lm/W |
| Correlated Colour Temperature (CCT): | 2700-6000 K |
| Colour Temperature: | Natural White |
| Colour Rendering Index (CRI): | >=80 Ra |
| Beam Angle: | 140º |
| Adjustable Angle: | 32º |
| LED Manufacturer: | Cree, OSRAM, Philips, Nichia or Bridgelux |
| LED Type: | LED |
| Lifetime: | 50000 h |
| Number of switching cycles: | 200000 |
| Attribute | Value |
|---|---|
| Unit of 1 | |
| Dimensions (L x W x H): | 795*340*180 mm |
| Gross weight: | 11.25 kg |
| Volume: | 48.65 dm³ |
