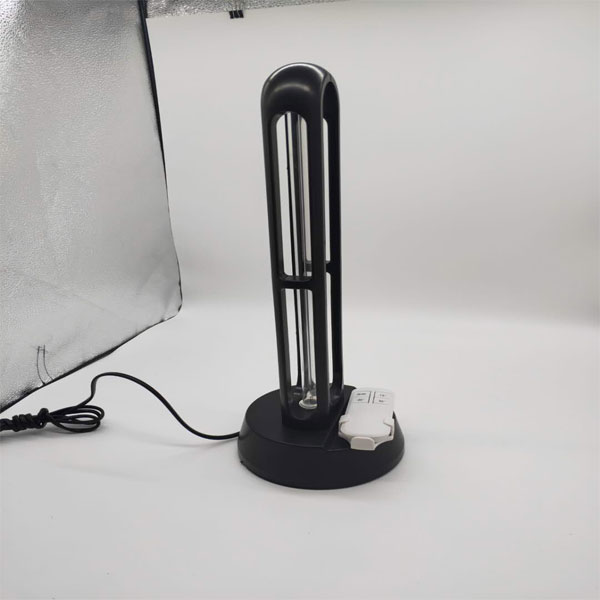

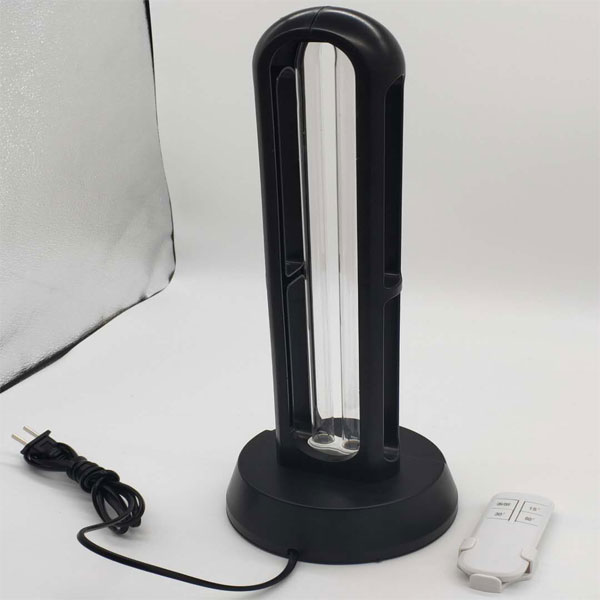

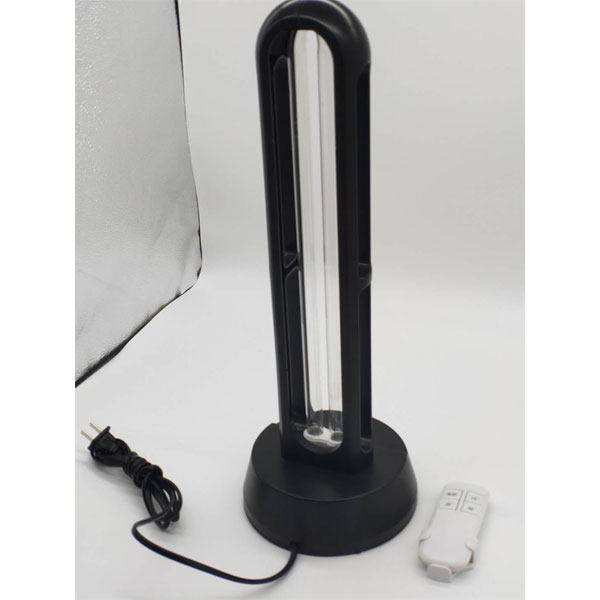

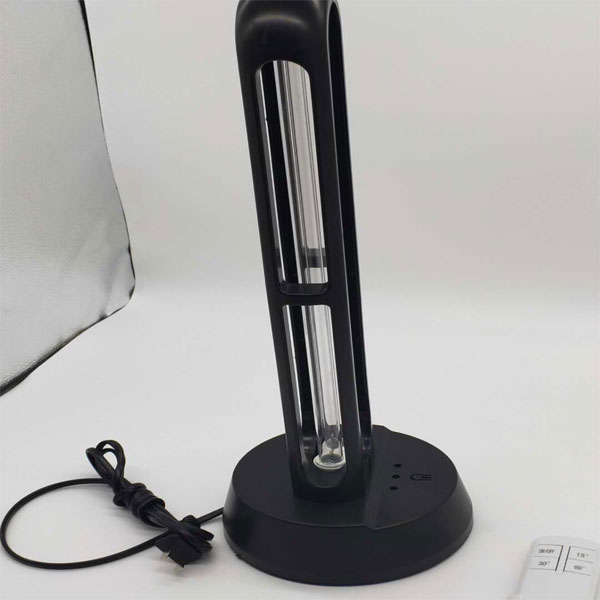

38W Portable Black UVC Germicidal Lamp For Home Or Office

• Product Parameters :

◆  Model: OS-UV02-38

◆  Ozone：yes or not(Customer choice ）

◆  Rated Voltage ：220V/110v

◆  Emitting Color：BLUE

◆  Rated Power：38w

◆  Material ：ABS+Quartz tube

◆  Rated frequency ：50Hz/60Hz

◆  NW： 0.53KG

◆  GW：0.58KG

◆  Color : black

◆  Product Dimension: 16cm*45cm

◆  Carton Size：25*19*44cm

◆  Timing mode：Remote control

◆  Applicable area ：40㎡

◆  Usage：home and office

Remark:
1) Please don’t look directly at the UV light source, should use it without humen locality. Because UV irradiation will affect skin erythema, Eye conjunctival irritation and easy to tried.
2)In the use of the process, keep the surface of the tube clean, such as the discovery of dust, please shut down for cleaning. otherwise affect the sterilization effect.
3) When sterilizing the pet shed, please make sure that the pet leaves the scene to avoid injury.
4)If there are antique calligraphy and painting collectibles in the space, please use a cloth or paper to block the light of collectibles.
5) After sterilizing, it should be collected to avoid damage and personal injury caused by rabbit children’s misuse of sterilizer.
6)After using the sterulizing lamp with ozone ultraviolet light, open the window for ventilation for at least 30 minutes and wait for ozone. After decomposing can enter disinfection place.

Usable area and disinfection time:
A) 38W is fitted for less 60m² room, `
B）thing is disinfected, please directly irradiate it within 1m and with 15minutes.
C) space disinfect
38W: 15min.—–appr. 30㎡ 30min.—— appr. 40㎡ 60min.—-appr.60㎡
(kindly reminder: disinfected time is longer, the effect is better).

Product parameter:
Rated input: 220VAC
Rated frequency: 50hz
Power: 38W
Time terms: Electronic timer
Excute standard: GB19258-2012

Usage method:

1)Press the switch button, and the indicator light corresponding to the 15′ time on the operation, panel starts to flash(when sterilization is started )inter-selection mode. If the indicator light flashes for 5 times without operation,it wll automatically enter the starting state.

2)Press the switch button again,then the timing indicator will switch to 30′; press the switch button again,then switch to 60′. The timing indicator switches from 15’to 30′ to 60′ to close to 15′. Please select kill according to your specific sterilization space Bacteria in time. After the time is selected, the corresponding indicator light enters the flashing state. After the indicator light flashes for 5 times,it is always on and buzzes The device emits a warning sound that is more and more rapid for 30s,. indicating
to leave the sterilization place, and the disinfection lamp starts to work after 30s. In this state,press the power button to turn off the disinfection lamp.

3) After disinfection at the selected disinfection time, the uv lamp will automatically turn off and return to the
shutdown state.

4) Instructions for remote control(applicable for purchase of remote control device): press the power button of the remote control, and the indicator light on the operation panel will turn on, start flashing, select the appropriate sterilization time, and then press the power button on the remote control to confirm, that is to enter 30S countdown Disinfection lamp buzzer long sound, into the sterilization mode.

Warning!!

This product in the ultraviolet irradiation process, prohibit the presence of human or animals. In order to Rabbits are protected from damage from uv rays that reach directly into people’s eyes and skin.

Common problems:
1. the principle of ultraviolet sterilization?
Answer:use the energy of ultraviolet ray photon, penetrate microbial cell membrane, destroy all sorts of germ,bacterium, parasite with And other pathogenic DNA structures that destroy the molecular bonds of their nucleic acids, rendering them inactive and deadly, thereby killing them The function of bacteria disinfection.
2.Does your lamp really work?
Answer: yes,the disinfection inside the hospital USES completely is ultraviolet ray sterilization disinfection.This uv lamp is for The sterilization effect is very good, and no pollutants produced. There is a stream of sunlight after disinfectionThe smell of the sun. You can feel it.
3.Disinfection features of ozone lamp tubes:(applicable to customers who purchase ozone lamp tubes)
The lamp tube simultaneously emits ultraviolet bactericidal band and ozone bactericidal band ultraviolet radiation along a straight line,lf the object is covered,there is no disinfection where the line does not illuminate.Ozone,on the other hand, is a gas The whole room,not affected by obstacles,ozone has sterilization,formaldehyde to odor and other functions. Note:ozone over a certain concentration will cause harm to human body, in the air at least 30 minutes to release decomposition, in the home of the elderly, children, pregnant women are recommended to use
ozone-free kill lights.
4.How often do you use it?
Answer:use 2 times a week commonly enough.
5.How long can the lamp be used? What kind of after-sale service do you offer?
A:the normal service life of the lamp tube is 8000 hours, and our product is guaranteed for one year.
(except for man-made damage)

Common faults:
Fault one: the light doesn’t work
Rule 1: operate on the host panel, press the power button, and the indicator light at 15min
starts flashing, press the button again to select the sterilization time, and the selected time
indicator flashes(the others go out).After 5s,The selected timing indicator light will turn on
and enter the countdown (30S)to start the lamp tube,and the buzzer will sound at the same
time.
Exclude 2: after the shutdown, plug the lamp tube tightly in the lamp holder,may be the lamp
tube contact in place caused by contact Bad and cause the lamp tube not to light.

Fault two: after following the steps,the lamp tube will flash when it is not lit and tapped by hand
Exclude: shut down after the lamp tube inserted in the lamp holder, may be the lamp tube did not rotate
in place caused by the contact Good causes the lamp tube not to light.If the problem persists,
check the filament carefully to see if it is broken Please change the lamp tube
