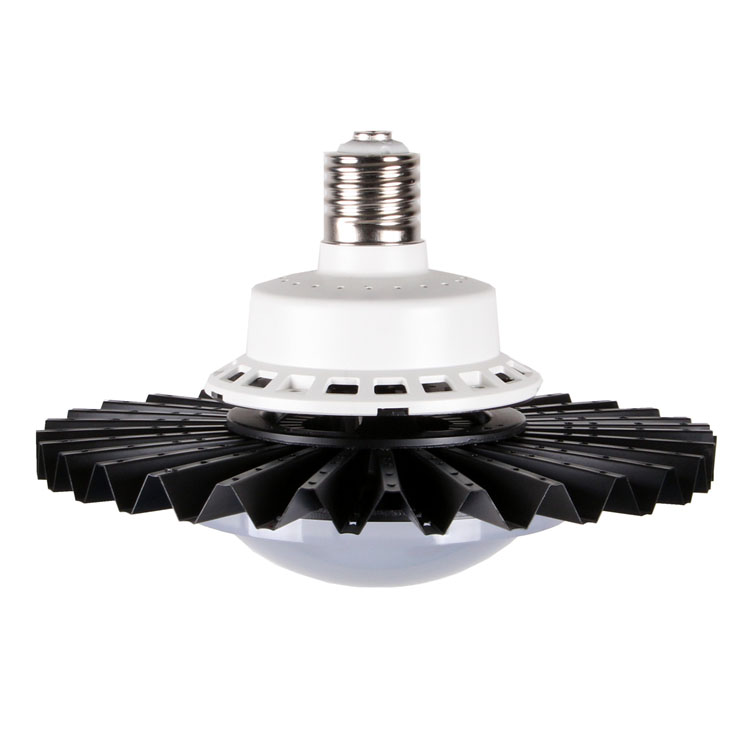

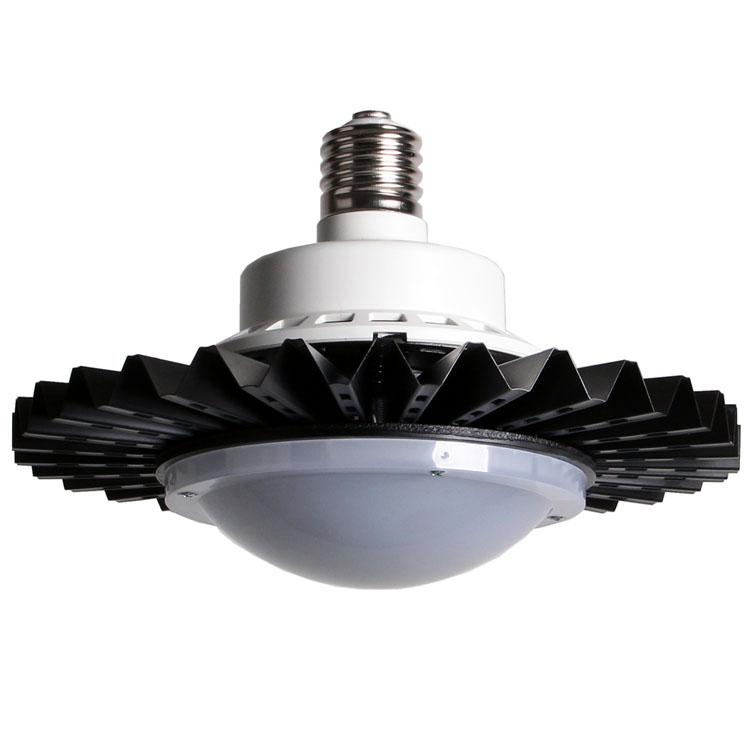

Round UFO-Series E40 Thread 50-100W Philips LED High Bay Light
| Power: | 50W 60W 100W |
| Color Temperature(CCT): | 2700K-6000K |
| Luminous Effective | 120Lm/W |
| Certification: | CE, Rohs |
| Warranty: | 5 Years |
Item No.and Power
| Item No.and Power: | Size (mm): |
|---|---|
| OS-HBL112-50W | Φ265*H40 |
| OS-HBL112-60W | Φ265*H40 |
| OS-HBL112-100W | Φ310*H40 |
Product benefits
- Functional design
- High light output thanks to high-power LED
- Quick and simple installation
- With exceptional rated lifetimes
- Zero restrike time
- A compact lightweight construction
- Provides additional benefits of energy savings
- Significantly reduced relamp maintenance costs.
Areas of application
- For over 20 ft. (6 meter) applications
- Education Facilities Lighting
- Industrial & Warehouse
- Recreation & Public Venue Lighting
- Retail & Grocery Lighting
- assembly lines
- inspection areas
- production bays
- storage areas
- commercial and retail areas
Product features
- Very bright and functional outdoor LED luminaires
- Lighting effect: 120 lm/w
- Input Voltage: AC 85-265V
- Build-in (CE, Rohs)Driver
- Philips SMD3030
- Type of protection: IP65
| Attribute | Value |
|---|---|
| Item No.: | OS-HBL112 |
| Nominal Valtage: | AC85-265V |
| Mains Frequency: | 50/60Hz |
| PF: | ≥0.95 |
| IP65 | |
| Over-voltage, Over-current,Over-Temp.,OVP, OCP,OTP | |
| CE,RoHS |
| Attribute | Value |
|---|---|
| Chip Brand: | Philips |
| Product color: | Red or Black |
| Chip Type: | SMD3030 |
| Color Temperature: | 2700K-6000K |
| Luminous Effective: | 120Lm/W |
| Color Rendering Index: | ≥Ra80 |
| Attribute | Value |
|---|---|
| Temperature range in operation: | -20°C~+55 °C |
| Temperature range in Storage: | -20°C~+80 °C |
| Attribute | Value |
|---|---|
| Beam Angle: | 120° |
| Housing Material: | Al |
| Housing Finish Color: | Black or Red |
| Cover Material: | PC |
| Warranty: | 5 Years |
| Attribute | Value |
|---|---|
| NO.1 | If the product have a failure occurs under normal usage within warranty period, we will provide free new products or components based on the proof documents. |
| NO.2: | If Failure or damage due to incorrect operation, wire connection, or anything other do not follow our instruction, we will provide paid maintance within warranty period |
| NO.3: | Details refer to Warranty Policy from OSLEDER. |
