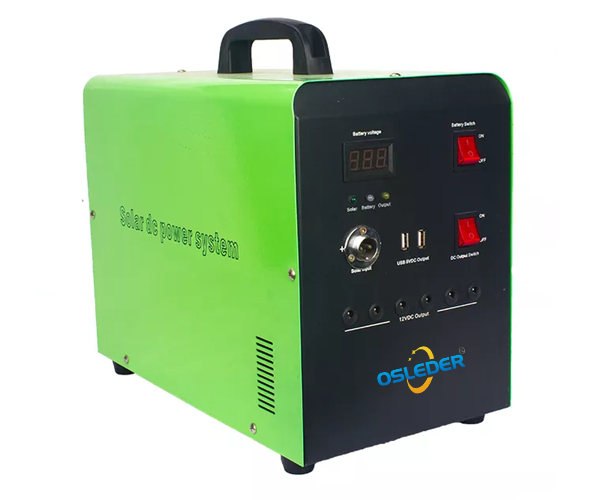

Portable Solar Power Generator for Home Use and Outdoor Travel (10w to 100w)
This product uses portable design. Supplying power for small power load,it has a built-in battery and a built-in solar controller,With an efficient PWM charge mode,the battery can operate in the best status and have a long life.The system has a 12VDC and 5VDC output terminal.
| Solar panel: | Mono or poly panel of class A |
| Battery tpye: | Deep -cycle maintenance -free lead -acid battery |

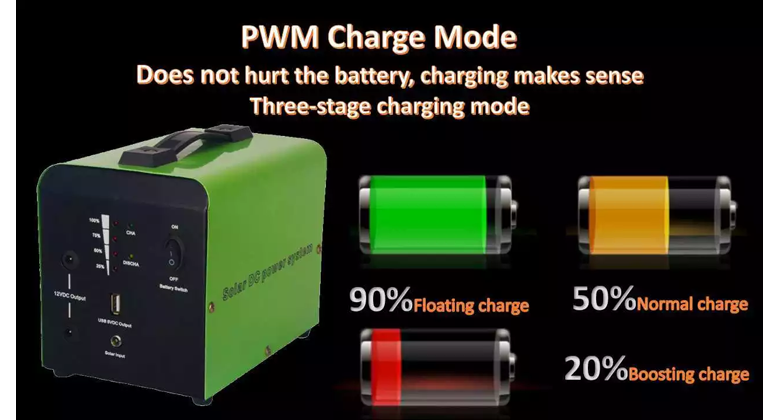

| Charging Type: | Efficient PWM |
| System Voltage: | DC12V |
| DC output: | DC5VUSB and DC12v |
| LED indication: | Charge, load, battery |
| Display of nixie tube: | Current voltage of the battery |
Key Features of Portable Solar Power Generator:
- Compact and Light Weight, You can take it anywhere.
- Plug and Play, You can install the Small Solar Home System within 2 Miniutes.
- 2 ways Charging, You can charge the Solar Power System by Solar Panel or AC Adaptor.
- USB output, You can use this small Solar Home System to charge your phone, or other digital products.
- Short circuit protection, Overload protection, Overdischarge protection, Unique reverse connection prevention.
- Automatic shutoff upon full charge.
- Detailed charge indication.
- Battery status indication, Load indication, Fault indication.
This Small Solar Home System, also called Solar Power Bank, is the best choice for remote locations, OSLEDER developed this small Solar Home System to offer an ECO solution that provides reliable, safe, quiet, and maintenance-free off-grid power.

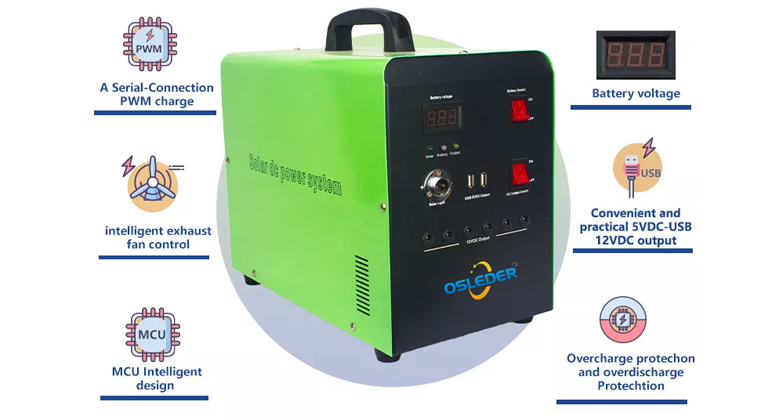

OSLDER Solar Power System Unit is built-in Solar Controller with full system protection, Over-charge and Over Discharge Protection, Short Circut Protect, Battery reverse connection protection, Solar panel reverse connection protection, Prevent discharging from battery to solar panel, Battery low voltage protection.
Technical Specifications of Portable Solar Power Generator:
| Model: | PSG-10W | PSG-20W | PSG-30W | PSG-50W | PSG-100W | |
| Solar panel: | Monocrystalline dilicon or polycrystalline silicon panel of class A | |||||
| Rated power： | 10w | 20w | 30w | 50w | 100w | |
| Battery tpye: | Deep -cycle maintenance -free lead -acid battery | |||||
| Battery capacity | 12V/7AH | 12V/12AH | 12V/24AH | 12V/50AH | 12V/100AH | |
| Controller | Charging Type: | Efficient PWM | ||||
| Charge current: | 5A/12V | 10A/12V | ||||
| Protection function: | overcharge protection,overdischarge protection,electronic circuit short circuit protection,overload protection | |||||
| Voltage of overcharge protection: | 14.3v | |||||
| voltage of boosting charge: | 14.0v | |||||
| Voltage of floating charge: | 13.8V;×2/24V;×4/48V;×8/96V; | |||||
| Display of nixie tube: | Current voltage of the battery | |||||
| voltage of overdischarge protection: | 10.5v | |||||
| Indication of LEDs | charge indication ,load indiction ,and battery indication | |||||
| DC output | maximum output power： | 60W(12V/5A) /120W (12V 10A) | ||||
| DC5VUSB: | 1USB output port (MAX.2A)/2USB output port(MAX .3A) | |||||
| DC12v： | 2 Output port | 4 output port | 5 output port | 6 output port | ||
| Accessories included | 12VDC LED indicator： | A 3w LED and a 5W LED(inculding 2 lamp holders ,a 3M lamp wire and a 5w lamp wire | TWO 3w LEDs and two 5W LEDs (including 4 lamp holders ,two 3m amp wires and two 5w lamp wire ) | |||
| USB charge line： | A universal charge line | |||||
| solar panel bracket： | A set (including 2 pieces) | |||||
| electric wire of the solar panel： | 5M | |||||
| AC charge: | An optional accessory when there is no solar power supply and charging by mains supply | |||||
Production Process of Portable Solar Energy Home System:
Since 2012, OSLEDER has gained rich experience in designing and manufacturing the most efficient and robust hybird solar inverters and the most complete off-grid solar system. A focus on testing, quality control, and traceability ensures our solar power system offers an industry-leading warranty and reliability guarantee. Invest in yourself by going OSLEDER. This will be your most economical long-term investment yet.
