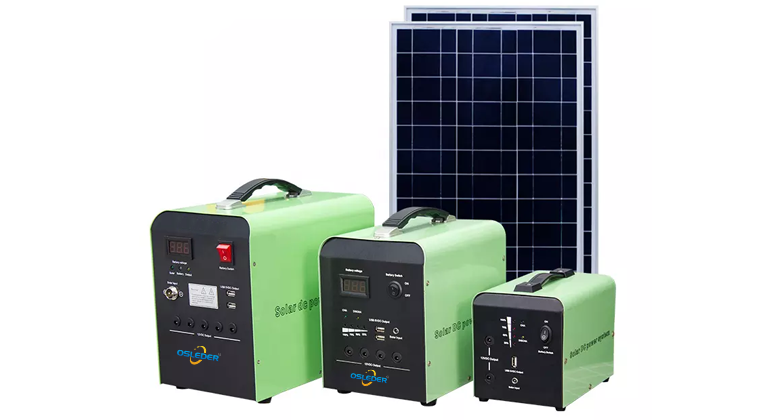

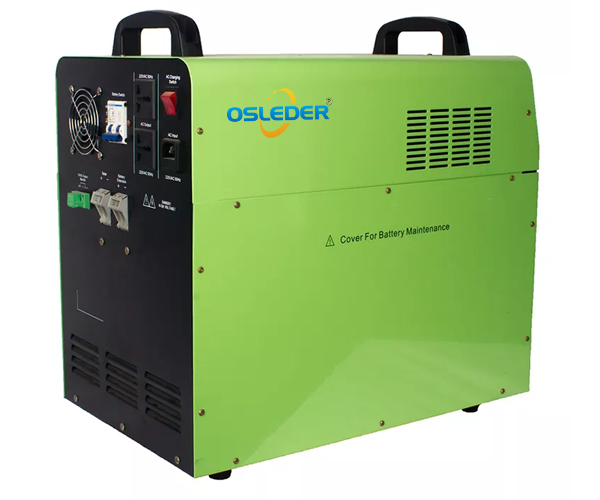

All in One Portable Solar Energy Home System(300w to 1500w)
This product uses portable design. Supplying power for small power load,it has a built-in battery and a built-in solar controller,With an efficient PWM charge mode,the battery can operate in the best status and have a long life.The system has a 12VDC and 5VDC output terminal.
| solar panel: | Mono or poly panel of class A |
| Control mode: | Efficient PWM |
| Charge current: | 5A/12V or 10A/12V |
| DC output: | DC5VUSB and DC12v |
| Battery tpye : | Deep -cycle maintenance -free lead -acid battery |
| Rated charge current: | 30A |
| 5V DC USB output port: | 2/max 2A |
Key Features of All-in-One Off-Grid Solar Energy Storage System:
- All-in-one unit of solar hybrid inverter+LiFePO4 battery or Gel battery pack.
- Configurable AC/Solar in Priority Via LCD seting.
- Smart battery charger design with optimized battery performance.
- Compatible to Grid utility / Generator.
- External WIFI devices Optional.
- Parallel Operation upto 6 units.
- Power for office and home.
- LiFePO4 pack inside with BMS function.
All-in-one solar energy storage system is a great option for people with average power use, such as small offices and homes. They are particularly suited to small families or couples.
Technical Specifications of All in One Portable Solar Energy Home System:
| Model: | APE-300W12V | APE-500W12V | APE-500W24V | APE-1000W24V | APE-1500W24V | |
| Battery rated voltage(vdc)： | 12V | 24V | ||||
| Specification of built-in battery： | 1*55Ah/12V | 2*55Ah/12V | 4*55Ah/12V | |||
| Inverter | Rated power(w): | 300 | 500 | 500 | 1000 | 1500 |
| Output voltage(vac): | 110/220VAC | |||||
| Output frequency(Hz): | 50/60Hz | |||||
| Output wave: | Pure Sine Wave | |||||
| Power Grid input | Rated voltage： | 110/220V AC-*(“*”mean an optional function) | ||||
| Charge current： | 10A(maximum)-*(*means an optional function) | 5A (maximum)-*(*means an optional function) | ||||
| PV input | Maxi PV input voltage： | ≤25V | ≤50V | |||
| Voltage of overcharge protection： | 10-25V | 20-50V | ||||
| Rated charge current： | 30A | |||||
| Maximum power： | 360Wp | 720Wp | ||||
| DC output | 5VDC USB output： | 2 /MAX 2A | ||||
| 12VDC output ports | 2 DC ports + backboard 12V terminal block (maximum 8A) | |||||
| Heat dissipation/Cooling： | Temperature control by intelligent exhaust fan | |||||
| Operating ambient temperature： | -20 – +50℃ | |||||
| Storage ambient temperature： | -25 – +55℃ | |||||
| Operating/Storage ambient： | 0-90% No condensation | |||||
Production Process of Portable Solar Energy Home System:
Since 2012, OSLEDER has gained rich experience in designing and manufacturing the most efficient and robust hybird solar inverters and the most complete off-grid solar system. A focus on testing, quality control, and traceability ensures our solar power system offers an industry-leading warranty and reliability guarantee. Invest in yourself by going OSLEDER. This will be your most economical long-term investment yet.
