Higher Module Efficiency More Power Less Space Shingled Monocrystalline PERC Solar Module
A solar panel manufacturing process that has gotten some traction recently is “shingling.” Not to be confused with “solar shingles” used in building-applied photovoltaics, shingled modules cut solar cells into strips and overlap them inside the framed module. Intercell gaps are removed, and more silicon cells can be crammed into one module, increasing power output and module efficiency.
| Brand: | OSLEDER |
| Order(MOQ): | 1 Pallet |
| Payment: | T/T, L/C, Paypal, Western Union |
| Product Origin: | China |
| Shipping Port: | Guangzhou, Shenzhen, Shanghai |
| Lead Time: | 10-20 Days After Payment Received |
| Warranty: | 25 Years Linear Warranty |

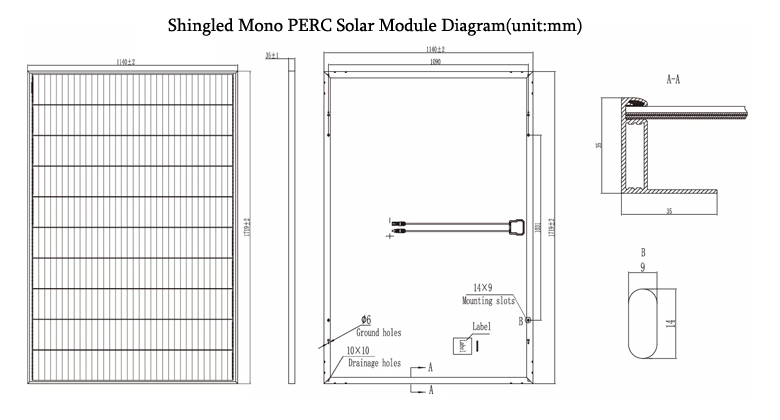

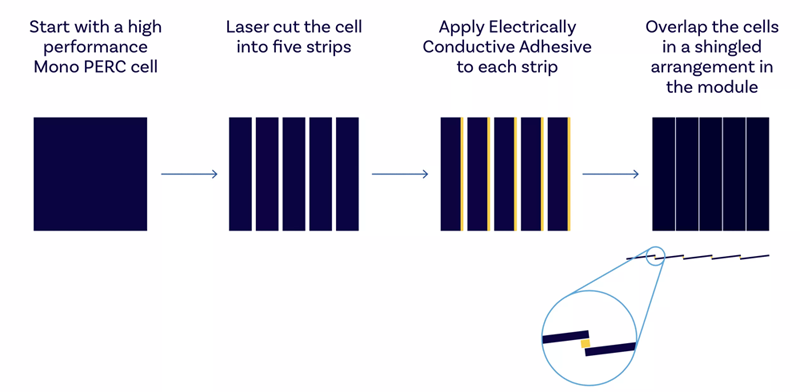

Structure of Shingled Monocrystalline PERC Solar Module:

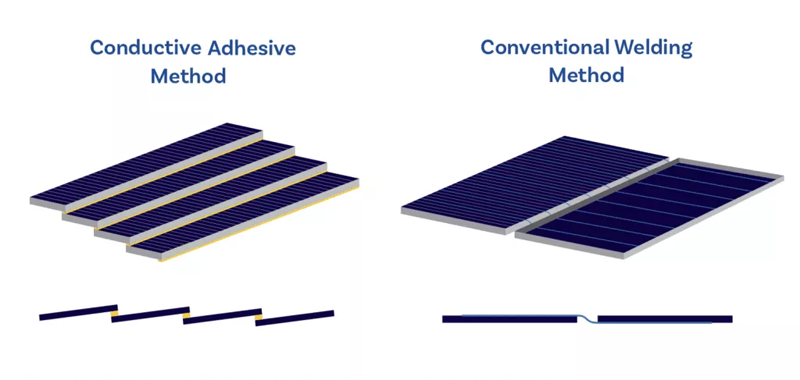

Compared with the normal module technology, the interconnected material of shingled module is different from that of normal module, whose technology is simpler and more reliable, avoiding the defects such as deviation of ribbon and cold soldering.
Details of Shingled Monocrystalline PERC Solar Module:
 |
 |
PERC mono solar cells1.Shingled components of the same area can be packed into more cells
2.Reduce power loss and hot spots caused by shading
|

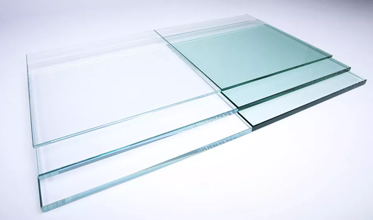

Glass1.Ture clear low iron glass
2.Translucency of normal luminance is increased 2%
3.Module efficiency is increased 2%
|
 |
 |

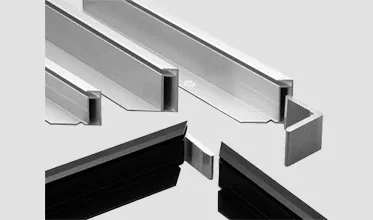

Frame1.Silvery and black
2. Thickness 30/35/40/45/50mm |

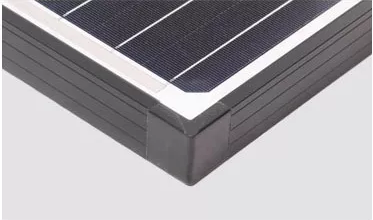

Humanized design1.Prevent the aluminum frame from scratching the hand
2.Using the rain to clean dirt remaining on the solar module |
 |
 |

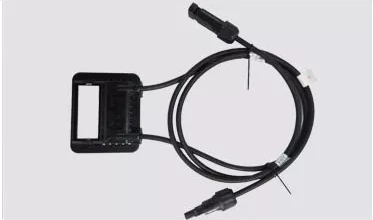

Junction box1.Quality diode ensures module running safety
2. IP68 protection level 3. Long service life |
Back sheet1.Low moisture permeability against snail trail defect
2.Excellent electric insulation for high system voltage up to 1500v 3.Outstanding weatherproof performance |
The Specification of Shingled Monocrystalline PERC Solar Module:
| Power: | Maximum Power Voltage: | Maximum Power Current: | Open Circuit Voltage： | Short Circuit Current | Dimension: | Weight： | Linear Warranty |
| 550W | 38.76V | 14.19A | 45.74V | 15A | 2148*1186*35mm | 28.1kg | 25 Years |
| 500W | 35.34V | 14.14A | 41.70V | 14.96A | 2148*1060*35mm | 25kg | 25 Years |
| 450W | 31.92V | 14.09A | 37.66V | 14.90A | 2148*990*35mm | 23.4kg | 25 Years |
| 400W | 35.34V | 11.31A | 41.70V | 11.96A | 1730*1060*35mm | 20.2kg | 25 Years |
Key Features of Shingled Monocrystalline PERC Solar Module:
Advanced Shingling Technology：
Innovative structure, low-temperature adhesive bonding, high-density layout.
Beautiful Appearance:
Shingled solar modules are evenly arranged, which is very visually pleasing.
Super Safety and Reliability：
No hidden welding crack, low operating temperature, high pressure resistance.
Reduce System Cost:
High module efficiency reduces floor space effectively, BOS, transportation, and maintenance costs
The Production Process of Monocrystalline solar panel:
