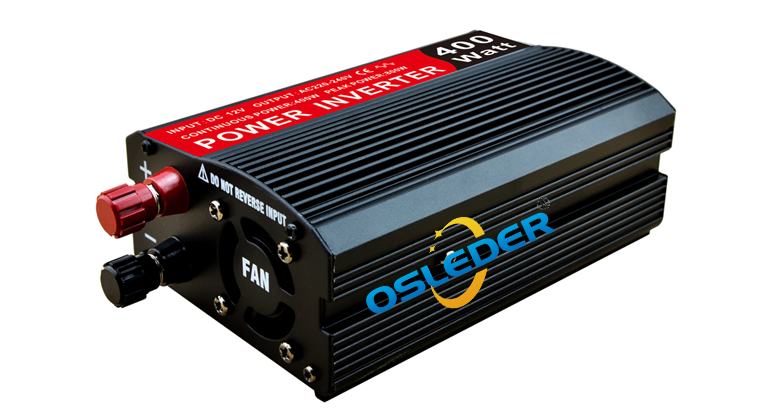

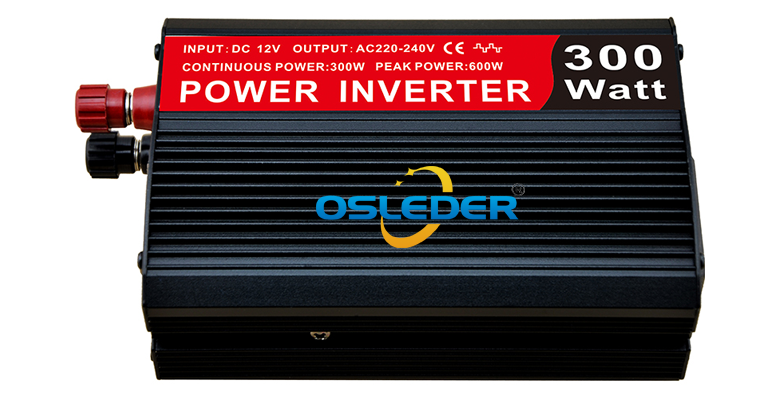

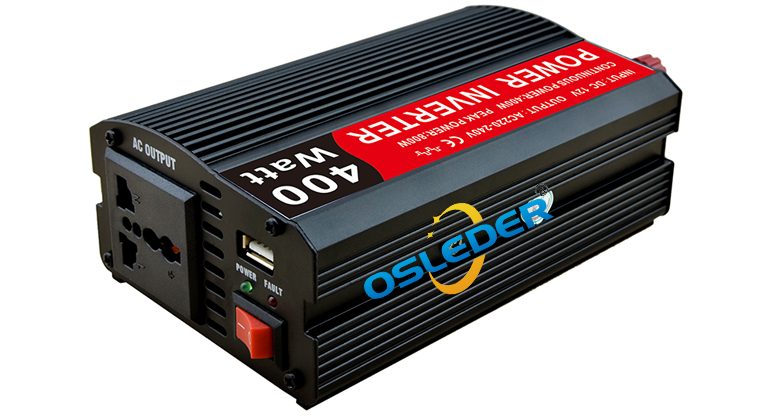

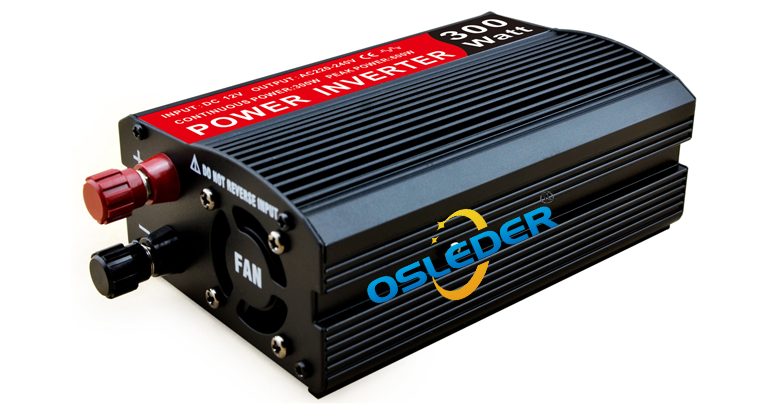

400w and 300w Modified Sine Wave Off-Grid Solar Power Inverter
Modified sine wave switching inverter power supply adopts PWM pulse width modulation technology to produce modified wave output.
| Brand:: | OSLEDER |
| Order(MOQ): | 1 PCS |
| Payment: | T/T, L/C, Paypal, Western Union |
| Product Origin: | China |
| Shipping Port: | Guangzhou, Shenzhen, Shanghai |
| Lead Time: | 10-20 Days After Payment Received |
| Warranty: | 10 Years Linear Warranty |
Key Features of 400w and 300w Modified Sine Wave Off-Grid Solar Power Inverter:

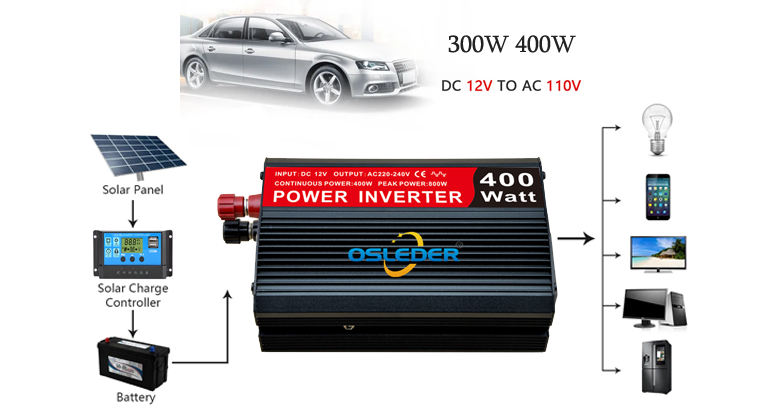

- Suitable for nomial power home appliances and equipments, such as phone, lamp, camera, shaver, CD, fan and so on.
- Strong anti-shock function, especially designed for used in the car.
- Equipped with USB output socket.
- With small, novel structure and appearance.
- Adopting all-mental aluminum shell, making the inverter safer.
- Independent research and development design, adopting the latest high-frequency PWM technology and big IRF high power transistor imported from U.S.A.
- Equipped with national, American, European and Austrakian standard plug.
- With over 90% of conversion efficiency.
- Professional design and many protection functions(overheat, overvoltage, under voltage, overload, over current etc).
- Adopting special process transformer, making the inverters work more stable and reliable, and with more load capacity etc.
The Specification of 400w and 300w Modified Sine Wave Off-Grid Solar Power Inverter:
| Model: | WSWI-300W12V | WSWI-300W24V | WSWI-300W48V | WSWI-400W12V | WSWI-400W24V | WSWI-400W48V |
| Continuous Power： | 300W | 400W | ||||
| Peak Power: | 600W | 800W | ||||
| Input Voltage: | DC 12V | DC 24V | DC 48V | DC 12V | DC 24V | DC 48V |
| Working Voltage: | DC 9.5V-15.5V | DC 20-30V | DC 40-60V | DC 9.5V-15.5V | DC 20-30V | DC 40-60V |
| Input Current: | 25A | 12.5A | 6.3A | 33A | 16A | 8.3A |
| Conversion Efficiency： | >85% | |||||
| Output Voltage： | AC 100V-120V/210-240V | |||||
| Output Current： | 2.7A/1.3A | 3.6A/1.8A | ||||
| Output Frequency: | 50Hz-60Hz | |||||
| Wave Form: | Modified Sine Wave | |||||
| USB Output Voltage: | DC 5V(800mA) | |||||
| Thermal Protection: | ≤70℃ | |||||
| Operating Temperature: | 0℃～40℃ | |||||
| Cooling: | By Intelligent Fan | |||||
| Under Voltage(V): | 10±1V | 20±1V | 40±1V | 10±1V | 20±1V | 40±1V |
| Over Voltage(V): | 15±1V | 30±1V | 60±1V | 15±1V | 30±1V | 60±1V |
| Protections: | Undervoltage: LED red light, buzzer alarm, restart recovery | |||||
| Overvoltage: LED red light, restart recovery | ||||||
| Overload、high temperature: LED red light, restart recovery | ||||||
| Reverse connect: Blown fuse | ||||||
| Pure sine wave | ||||||
| Net Weight: | 700g | 700g | ||||
| Gross Weight: | 900g | 900g | ||||
| Size: | 185*102*58mm | 185*102*58mm | ||||
| Carton: | 535*435*310mm 20Pieces/Carton | 535*435*310mm 20Pieces/Carton | ||||
The Production Process of Modified Sine Wave Off-Grid Solar Power Inverter :
Since 2012, OSLEDER has gained rich experience in designing and manufacturing the most efficient and robustpure Modified Sine Wave Off-Grid solar inverters and the most complete off-grid solar system. A focus on testing, quality control, and traceability ensures our solar power system offers an industry-leading warranty and reliability guarantee. Invest in yourself by going OSLEDER. This will be your most economical long-term investment yet.
