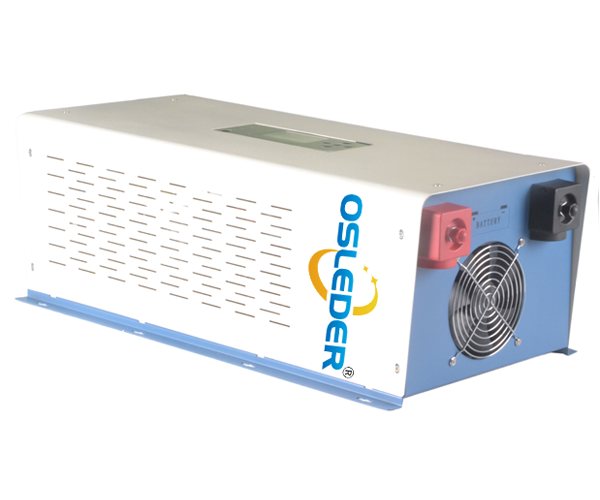

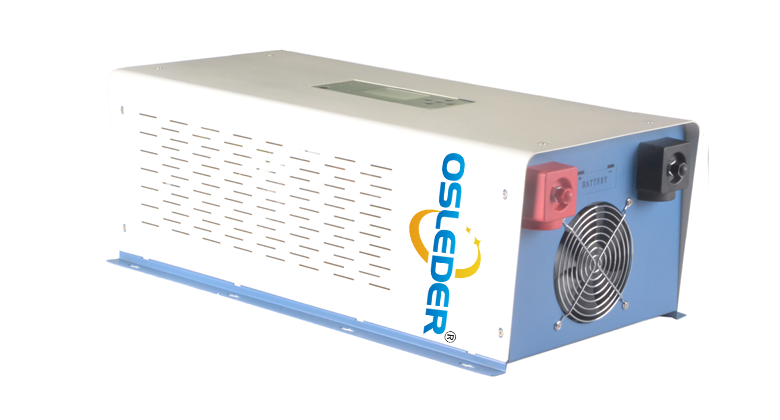

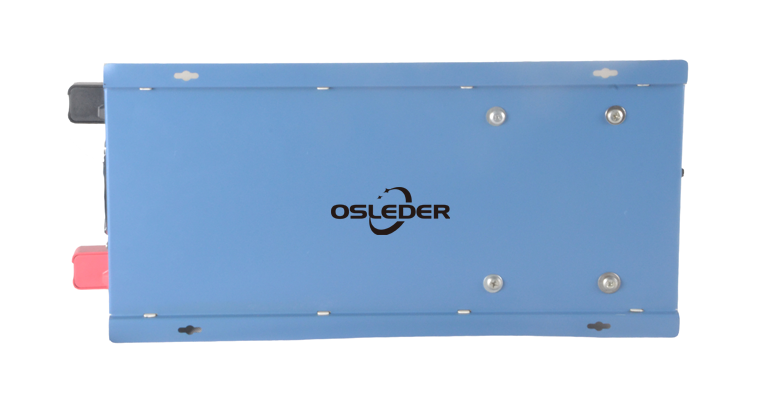

1000W to 2000W Pure Sine Wave Off Grid Solar Inverter
A solar inverter is really a converter, though the rules of physics say otherwise. A solar power inverter converts or inverts the direct current (DC) energy produced by a solar panel into Alternate Current (AC.)
| Brand:: | OSLEDER |
| Order(MOQ): | 1 PCS |
| Payment: | T/T, L/C, Paypal, Western Union |
| Product Origin: | China |
| Shipping Port: | Guangzhou, Shenzhen, Shanghai |
| Lead Time: | 10-20 Days After Payment Received |
| Warranty: | 10 Years Linear Warranty |
Key Features of 1000W to 2000W Pure Sine Wave Off-Grid Solar Inverter:
1. Solar Off Grid Inverter 100% sufficient transformer and advanced wire design to ensure that the inverter can output at full load

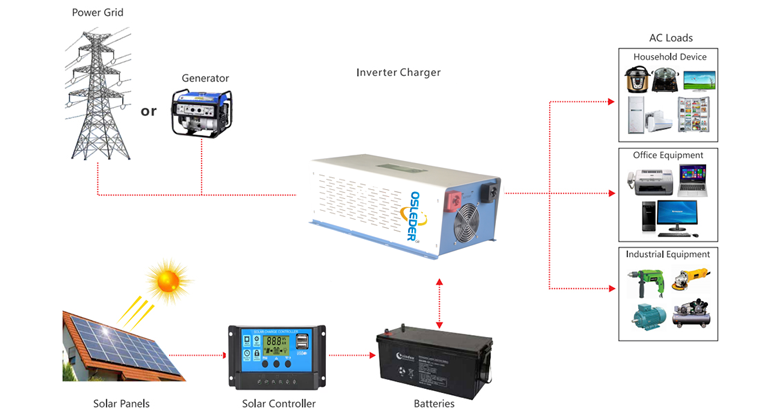

2. Solar Off Grid Inverter has four functions: UPS, voltage regulation, inverter and charging.
3. Support lithium batteries, lead-acid batteries and other batteries.
4. The user can adjust various charging parameters and discharge parameters through the display.
5. There is a mobile phone APP. You can browse the various parameters of the inverter operation through the mobile phone
The Specification of 1000W to 2000W Pure Sine Wave Off-Grid Solar Inverter:
| Model: | PSWI-1KW24V | PSWI-1.5KW24V | PSWI-1.5KW48V | PSWI-2KW24V | PSWI-2KW48V | |
| Rated Capacity： | 1000W(1500VA) | 1500W(2000VA) | 2000W(3000VA) | |||
| Function | Setting | Chinese & English option, Time &Date setting ,Contrast ,lightness, Switch voltage, Grid charge, clear record ,operating parameter, discharge limited setting, Reset… | ||||
| Work Mode： | Grid Priority/Battery Priority（optional） | |||||
| Charge Mode： | PV priority/ PV+Grid（optional） | |||||

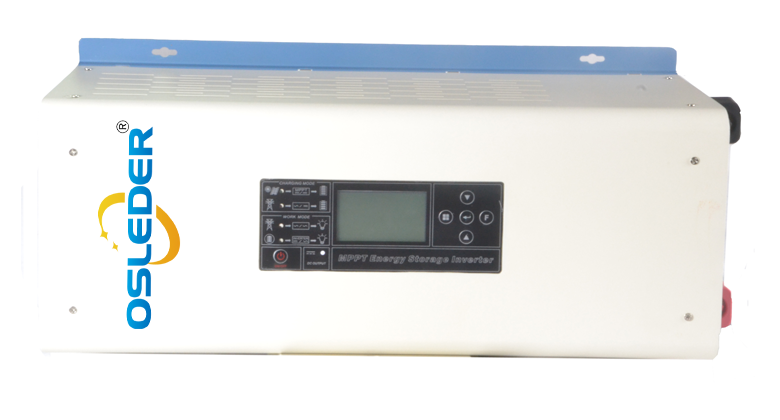

| LCD Display： | Internal and External temperature, record query (fault record), System information query | |||||
| PV Input | Max.PV input voltage(Vdc): | 12V (DC18V~DC150V)；24V(DC34V~DC150V); 48V(DC65V-150V); 96V(DC130-DC180V） | ||||
| Max.PV input power(W): | 420W/840W | 420W/840W | 1700W/3400W | 840/1650W | 1700W/3400W | |
| Solar storage inverter PV input Voltage range(Vdc): | DC65V-150V | |||||
| Grid input | Battery Type: | Lead acid/gel/lithium(optional, factory setting) | ||||
| Charge current: | 0-30A Optional | |||||
| Charge Model: | Improve charge ,direct charge, float charge | |||||
| AC output | AC charge current(A): | Standard:0-30A | ||||
| AC output voltage(Vac): | 110/220/230/240±3% | |||||
| AC output frequency(Hz): | 50/60±3% | |||||
| Conversion Efficiency: | ≥85% | |||||
| Overload Capacity: | 105-120% 30S;120-150% 10S;>150% 5S | |||||
| Output Wave: | Pure sine wave | |||||
| Output power factor: | ≥0.8(＞30% Load） | |||||
| Wave form distortion: | ≤3% | |||||
| Switching time: | ≤4mS | |||||
| Protect funtion | Overload capacity: | 105-120% 30S;120-150% 10S;>150% 5S | ||||
| Over discharge: | 24V/DC21;48V/DC42V Shut down after alarm | |||||
| Over charge: | 24V/DC32;48V64V Shut down after alarm | |||||
| High temperature: | 85° auto shut down after alarm | |||||
| Short circuit: | Auto shut down | |||||
| Others | Switching time: | ≤4mS | ||||

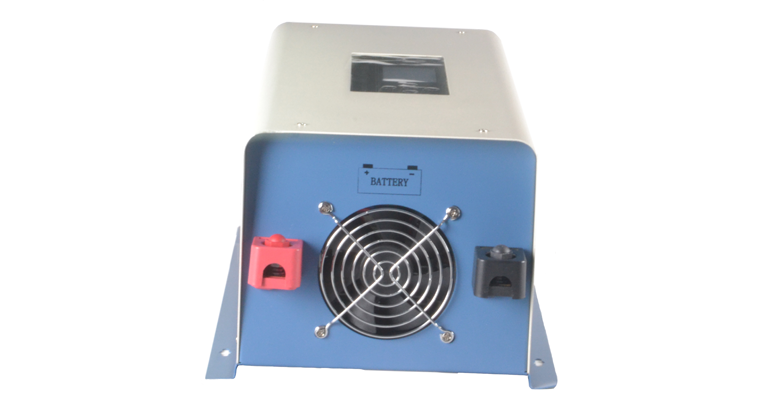

| Cooling method: | Fan cooling | |||||
| Noise[dB]: | <60dB | |||||
| Operating temperature(℃): | -10 ℃～ 50 ℃ | |||||
| Environment humidity: | 10％ ～ 90％(No condensation)solar pv inverter | |||||
| Working Elevation(M): | <5000 (>1000m,Derating) | |||||
The Production Process of Pure Sine Wave Off-Grid Solar Inverter :
Since 2012, OSLEDER has gained rich experience in designing and manufacturing the most efficient and robustpure Sine Wave Off-Grid solar inverters and the most complete off-grid solar system. A focus on testing, quality control, and traceability ensures our solar power system offers an industry-leading warranty and reliability guarantee. Invest in yourself by going OSLEDER. This will be your most economical long-term investment yet.
