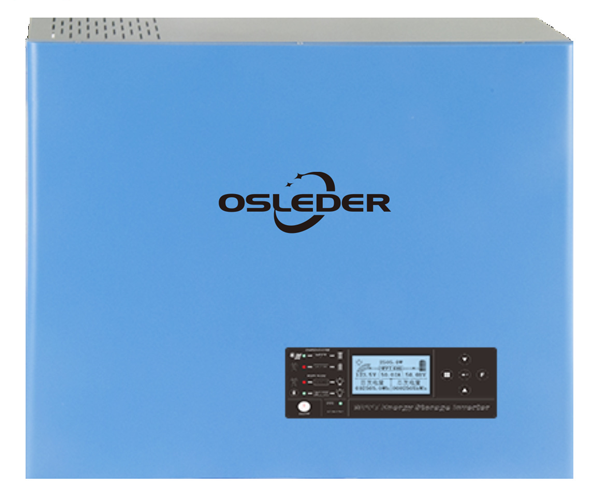

1000W to 2000W Pure Sine Wave Hybrid Solar Inverter For Home Solar System
An inverter is one of the key components of a solar power system that converts direct current (DC) produced by the solar panels into alternating current (AC) for home-based appliances. A solar panel setup with a conventional inverter requires a separate inverter to transform AC to DC, back and forth. However, a solar panel system with a hybrid inverter does not require a separate battery inverter. Interestingly, hybrid inverters can also be installed without batteries.
| Brand:: | OSLEDER |
| Order(MOQ): | 1 PCS |
| Payment: | T/T, L/C, Paypal, Western Union |
| Product Origin: | China |
| Shipping Port: | Guangzhou, Shenzhen, Shanghai |
| Lead Time: | 10-20 Days After Payment Received |
| Warranty: | 10 Years Linear Warranty |
Key Features of 1000W to 2000W Pure Sine Wave Hybrid Solar Inverter For Home Solar System:
1. Constant Power Supply:
2. Optimal Utilisation of the Renewable Resource:
A battery system connected to a hybrid system ensures maximum utilisation of the abundant solar radiation on bright sunny days. Therefore, such a system results in optimal usage of solar radiation by storing energy on sunny days and using the stored power when there is an overcast.
3. Low Maintenance:
The Specification of 1000W to 2000W Pure Sine Wave Hybrid Solar Inverter:
| Model: | HSI-1KW30A | HSI-1.5KW30A | HSI-1.5KW60A | HSI-2KW30A | HSI-2KW60A |
| Rated Capacity： | 1000W(1500VA) | 1500W(2000VA) | 2000W(3000VA) | ||
| Work Mode： | Grid Priority/Battery Priority（optional） | ||||
| Charge Mode： | PV priority/ PV+Grid（optional） | ||||
| LCD Display： | Internal and External temperature, record query (fault record), System information query | ||||
| Max.PV input voltage(Vdc): | 12V (DC18V~DC150V)；24V(DC34V~DC150V); 48V(DC65V-150V); 96V(DC130-DC180V） | ||||
| Max.charge current(A): | 30A | 30A | 60A | 30A | 60A |
| Battery voltage(Vdc): | 12V/24V | 24V/48V | 24V/48V | 24V/48V | 24V/48V |
| Max.PV input power(W): | 420W/840W | 420W/840W | 1700W/3400W | 840/1650W | 1700W/3400W |
| Battery float voltage(Vdc): | 12V(13.75V);24V(27.5V)48V(55V);96V(110V) | ||||
| Battery equalizing charge voltage(Vdc): | 12V(14.2V); 24V(28.4V);48V(56.8V);96V(113.6V) | ||||
| Solar storage inverter PV input Voltage range(Vdc): | DC65V-150V | ||||
| Battery Type: | Lead acid/gel/lithium(optional, factory setting) | ||||
| Charge Model: | Improve charge ,direct charge, float charge | ||||
| AC charge current(A): | Standard:0-30A | ||||
| AC output voltage(Vac): | 110/220/230/240±3% | ||||
| AC output frequency(Hz): | 50/60±3% | ||||
| Conversion Efficiency: | ≥85% | ||||
| Overload Capacity: | 105-120% 30S;120-150% 10S;>150% 5S | ||||
| Output Wave: | Pure sine wave | ||||
| Output power factor: | ≥0.8(＞30% Load） | ||||
| Wave form distortion: | ≤3% | ||||
| Switching time: | ≤4mS | ||||
| Complete protections: | DC&AC overload,under-voltage,SPD,short-circuit,overcharge,over discharge,over-temperature,ect | ||||
| Over discharge: | 24V/DC21;48V/DC42V Shut down after alarm | ||||
| Over charge: | 24V/DC32;48V64V Shut down after alarm | ||||
| High temperature: | 85° auto shut down after alarm | ||||
| Short circuit: | Auto shut down | ||||
| Cooling method: | Fan cooling | ||||
| Noise[dB]: | <60dB | ||||
| Operating temperature(℃): | -10 ℃～ 50 ℃ | ||||
| Environment humidity: | 10％ ～ 90％(No condensation)solar pv inverter | ||||
| Working Elevation(M): | <5000 (>1000m,Derating) | ||||
The Production Process of Hybrid Solar Inverter :
