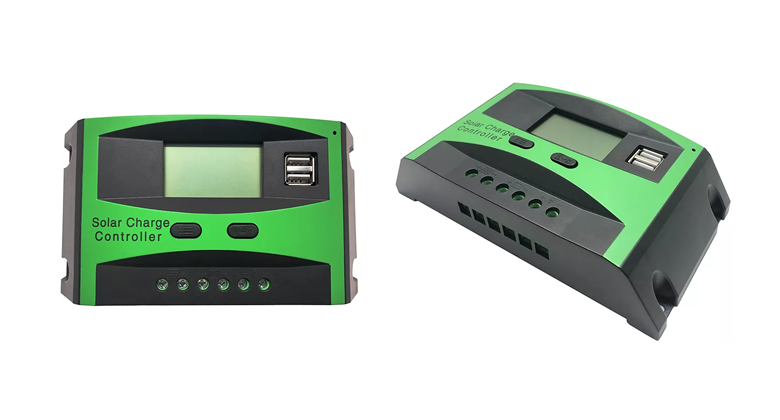

Factory wholesale 12V/24V/48v Intelligent PWM solar charge controller
| System voltage: | 12V/24V Auto adapt and 48V) |
| Suitable Battery type： | Sealed/GEL/Flood |
| Charge Type： | PWM |
| PV Maximum Input Voltage: | 50V |
| USB output：: | 5V/3A |
| Working temperature: | -20°c -+55°c |
12v 24V 48V solar battery charger control system regulator 60A 50A 40A 30A 20A 10A PWM solar charge controller .
Free samples are available, Welcome to contact us for test sample.
Lead acid battery Regulator PWM Solar Charge Controller

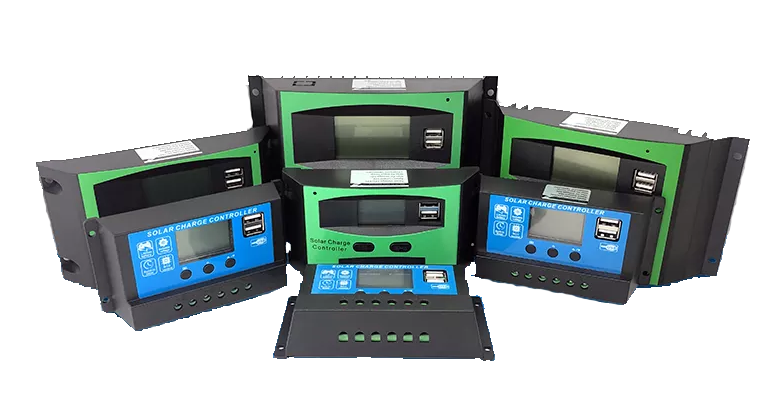

12V/24V/48V Automatically switch, 10A 20A 30A 40A 50A 60A available.
- 【Wide Compatibility】The solar charger controller is compatible with 12V or 24V or 48V system automatically, suitable for lead-acid batteries. Dual USB 5V output ports support mobile phones, tablet PCs or other devices that require 5V voltage.
- 【Reliable Protection】Solar charge regulator provides over-current protection, short-circuit protection, inverse connection protection, low voltage and overcharge protection, a reliable protector for your devices.
- 【Intelligent Controller】Build-in industrial microcontroller for automatical management, memorizing various parameters set by the user and the data won’t be lost when the battery runs out.

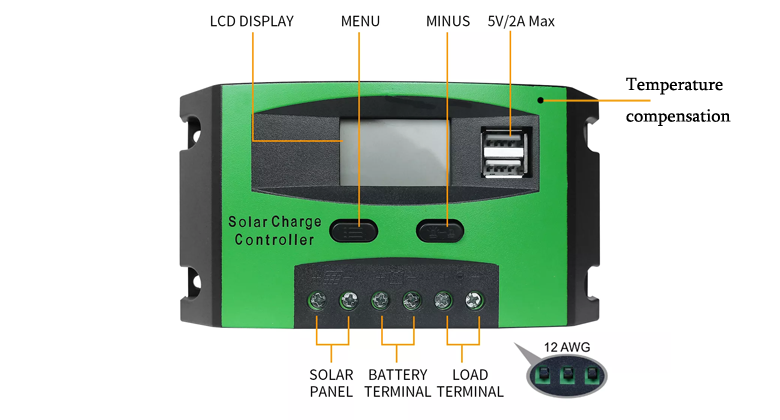

- 【Digital LCD Display】Intuitive LCD display that can clearly indicate the status and data is able to switch modes and aprameter configuration, suitable for home, industrial, commercial, etc.
- 【Easy to Use】The charge controller should connect the battery first, then the solar panel, and finally the load! You can change the settings by the simple one-button operation.
Product parameters：
| Model: | MZC10 | MZC20 | MZC30 | MZC40 | MZC50 | MZC60 |
| System Voltage: | 12V/24V Auto adapt and 48V | |||||
| Rated charging current: | 10A | 20A | 30A | 40A | 50A | 60A |
| Rated discharge current: | 10A | 20A | 30A | 40A | 50A | 60A |
| PV Maximum Input Voltage: | 50V(12/24V) , 100V( 24V/48V) | |||||
| LVD: | 10.5V( 9-11V), 21V(18-22V), 42V(36-44V) | |||||
| LVR: | 12.6V(11-13.5V), 25.2V(22-27V), 50.4V(44-54V) | |||||
| Floating charge voltage: | 13.8V(13-15V), 27.6V(26-30V),55.2V(52-60V) | |||||
| Increase the charge: | 14.4V/28.8V/57.6V The battery voltage is below 12V/24V/48V start extra charge for | |||||
| Battery overpressure protection: | 15V/ 30V/ 60V | |||||
| Input reverse connection protection: | Yes | |||||
| Load over current protection: | Yes, every two seconds to restart | |||||
| Charging mode： | PMW | |||||
| Operating temperature: | -20°c -+55°c | |||||
| Terminal scale: | 28-10AWG | |||||
| Waterproof level: | IP32 | |||||
| product size(mm): | 168*90*46 | 193*110*42 | 201*125*56 | |||
| Packing size(mm): | 182*94*48 | 200*117*44 | 208*128*59 | |||
| Carton Dimension(mm): | 495*380*270 | 430*365*275 | 438*380*285 | |||
| PC/Carton: | 50PCS | 30PCS | 24PCS | |||
| G.W(kg): | 15 | 14.5 | 17 | |||
Production Process of PWM solar charge controller:
Since 2012, OSLEDER has gained rich experience in designing and manufacturing the most efficient and robust hybird solar inverters and the most complete off-grid solar system. A focus on testing, quality control, and traceability ensures our solar power system offers an industry-leading warranty and reliability guarantee. Invest in yourself by going OSLEDER. This will be your most economical long-term investment yet.
