Factory wholesale 10A 20A 30A 12V 24V Auto adapt pwm solar charge controller
| System voltage: | 12/24V Automatic adaption |
| Rated charging current: | 10A 20A 30A |
| Rated discharge current: | 10A |
| PV Maximum Input Voltage: | 12V system < 23V/24V system < 46V |
| USB output：: | 5V/2A |
| Working temperature: | -20~+55℃ |
The most cost-effective solar controller, FACTORY PRICE, OEM service.
Free samples are available, Welcome to contact us for test sample.
Lead acid battery Regulator PWM Solar Charge Controller
12V/24V Auto 10A 20A 30A 40A 50A 60A available.

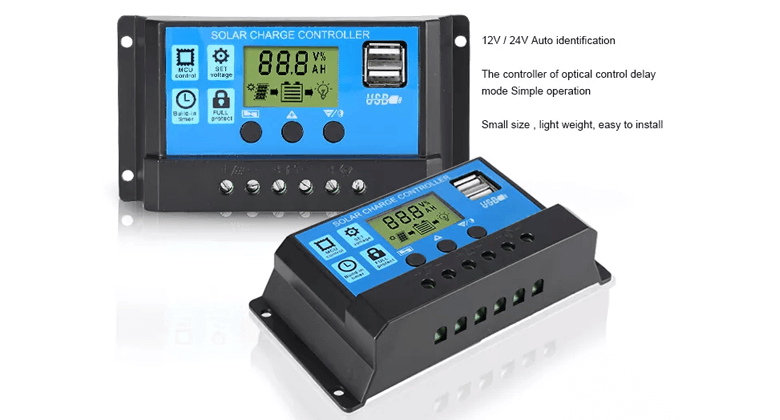

Introduction: 12V/24V 30A 20A 10A Solar Charge Controller Solar Regulator PWM Lithium Battery Charger LCD Display USB Output DC

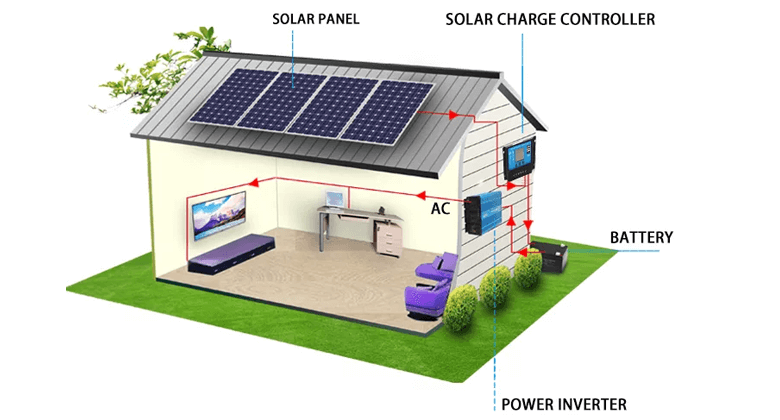

This is very practical type PWM solar controller ,it is small and light ,you can use 12V and 24V Lead acid ,Gel,Sealed,Flooded,AGM Batteries. It can fully meet your home Photovoltaic system(including home lighting system )requirements. There are optional 10A 20A 30A model .
Feature: Solar Charge Controller Solar Panel Controller 12V/24V Adjustable LCD Display Solar Panel Battery Regulator with USB Port
- Build-in industrial micro controller.
- Big LCD display,all adjustable parameter.
- Fully 4-stage PWM charge management.

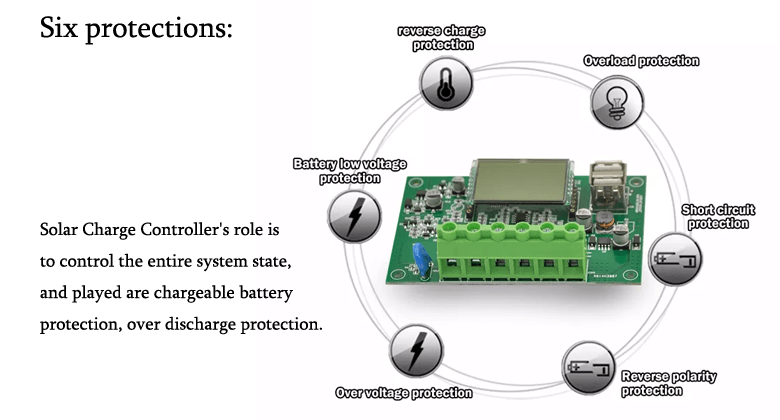

- Build-in short-circuit protection,open-circuit protection,reverse protection,over-load protection.
- Dual mosfet Reverse current protection ,low heat production.
- Double USB Socket.
- Aluminum alloy injection port.
- Plastic shell + iron back plate. 4.12V/24V Auto adapt, small size, easy to operate.
- LCD, programing parameter. Data memory function.
- Using PCB industrial grade chip, harsh environment adapt.
Product Parameters：PWM 30A 20A 10A Solar Charge and Discharge Controller 12V 24V Auto LCD Solar Regulator with Dual USB 5V
| Model: | MZA10 | MZA20 | MZA30 |
| System Voltage: | 12/24V Automatic adaption | ||
| Rated charging current: | 10A | 20A | 30A |
| Rated discharge current: | 10A | ||
| PV Maximum Input Voltage: | 12V system < 23V/24V system < 46V | ||
| Increase charging voltage: | b1 Sealed type | b2 Gel type | b3 Open type |
| 14.4V | 14.2V | 14.6V | |
| Floating charge voltage: | 13.7V,(Adjustable range:12.7V-15V) | ||
| Discharge cut-off voltage: | 10.7V,(Adjustable range: 9V-11.3V) | ||
| Discharge recovery voltage: | 12.6V,(Adjustable range: 11.5V-13V) | ||
| USB output: | 5V/2A | ||
| Standby current: | <10mA | ||
| Working temperature： | -20~+55℃ | ||

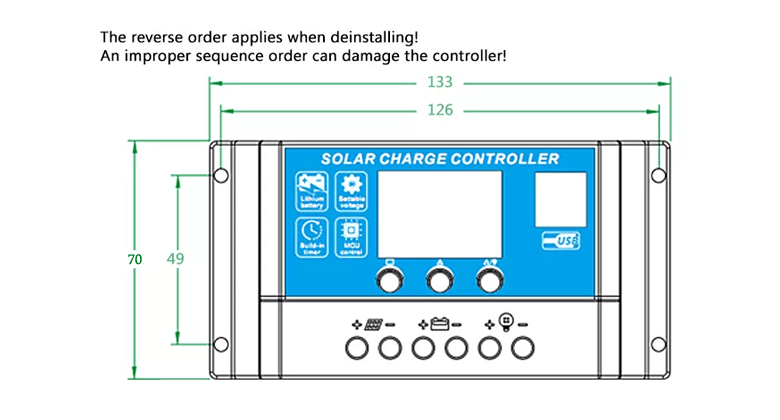

| Size / weight: | 133*70*35mm/133g | ||

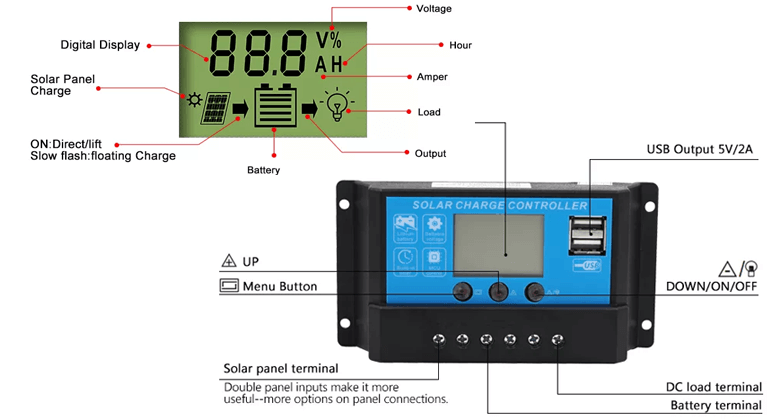

Connection：30A 20A 10A solar regulator 12v 24v pwm solar charge controller solar panel charger battery regulator 5v DC Output
- Connect the battery to the charge regulator – plus and minus.
- Connect the photovoltaic module to the regulator – plus and minus.
- Connect the consumer to the charge regulator – plus and minus.
The reverse order applies when deinstalling!
An improper sequence order can damage the controller!
Recently there are many similar products on the market, they have different prices and many sales, but please note that only OSLEDER-SOLAR’s products are 100% genuine and highest quality, we can provide permanent after-sales service, if you are reseller, We can give you free samples and competitive price !!!
Production Process of 30A 20A 10A Solar Panel Controller 12V/24V Battery Charge Regulator 2USB Photovoltaic Cell Panel Charger Regulator:
Since 2012, OSLEDER SOLAR has gained rich experience in designing and manufacturing the most efficient and robust hybird solar inverters and the most complete off-grid solar system. A focus on testing, quality control, and traceability ensures our solar power system offers an industry-leading warranty and reliability guarantee. Invest in yourself by going OSLEDER. This will be your most economical long-term investment yet.
