Pure Sine Wave Inverter MPPT controller Lead Acid Battery Off Grid Solar System

Pure Sine Wave Inverter MPPT controller Lead Acid Battery Off Grid Solar System

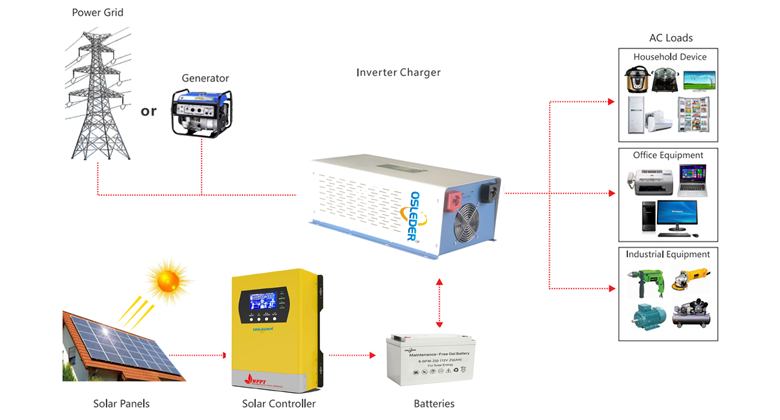

An off-grid solar system allows users to satisfy all their energy requirements using the sun’s power without an electrical grid. Essentially, to make this possible, you must set up a solar power system linked with an energy storage system.

AC Input/Output Phase: Single Phase
AC Input/Output Voltage (V): 220VAC±20%
AC Input/Output Frequency: 50HZ/60HZ±5%
DC Input Voltage(V): 60VDC-150VDC
DC Input Current(A): MPPT Controller 60A
DC Output Voltage: 12VDC*2、5VDC*2
AC Output Waveform: Pure Sine Wave
Have Questions?
click here to contact a support specialist

An Off-Grid Solar System include all the parts and pieces required for setting up a complete off-grid solar power system. Each System includes lithium solar batteries along with high quality, all-in-one inverter options.

We’re on a mission to make solar simple – so we’ve made the off-grid solar kit buying experience easier that meet a wide variety of power needs at price points you’ll love.

Key Features of Hybrid Inverter Lead Acid Battery 5KW to 30KW Off Grid Solar System:

  • It is customized by a professional team according to the actual electricity consumption, and meets more than 90% of the electricity demand.
  • The solar panels use cells with a conversion efficiency of up to 22%. The same number of solar panels will generate more power.
  • Multiple charging methods.
  • Pure Sine Wave inverter and MPPT controller built in.
  • LiFePO4 Battery built in.
  • Easy installtion, plug and play.
  • Modular design & Expandable capacity.
  • Safty & green back up power supply.
  • LCD display,shows the working status and can diagnose the machine fault.
  • Double protection both BMS and charger.
  • Roof mounting and ground mounting both acceptable.

Applications of Pure Sine Wave Inverter MPPT controller Lead Acid Battery Off Grid Solar System:

  • The Power Wall LFP Battery 5KW to 30KW Off Grid Solar System can use for solar power system, light, radio, DVD, TV set, fans, freezer, computers, small hand-drill, communication equipment and the other house appliances.
  • House,Farm,Remote, Island,Mountain…

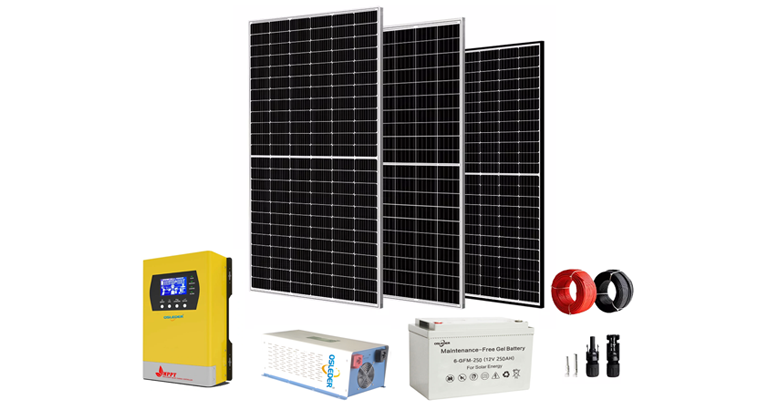

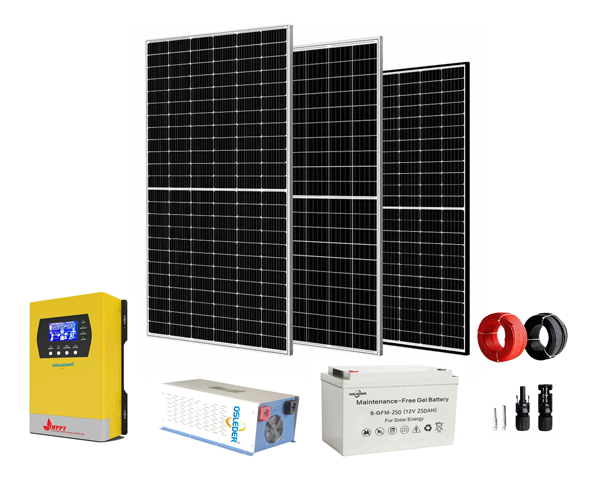

Components of Pure Sine Wave Inverter MPPT controller Lead Acid Battery Off Grid Solar System:

SOLAR PANEL
  1. Rated Power：380W
  2. Rated Current(Imp）：9.52A
  3. Rated Voltage(Vmp)：39.92V
  4. Short Current (Isc)：10.05A
  5. Open Circuit Voltage(Voc)：48.57V Front Glass: 3.2mm,high transmission,low iron, tempered glass Junction Box: IP68
  6. Rated Cables: 4mm * 1160mm Frame: Anodized aluminium-alloy
  7. Dimension（mm）：1956 * 992 * 40 Weight： 22.5kg

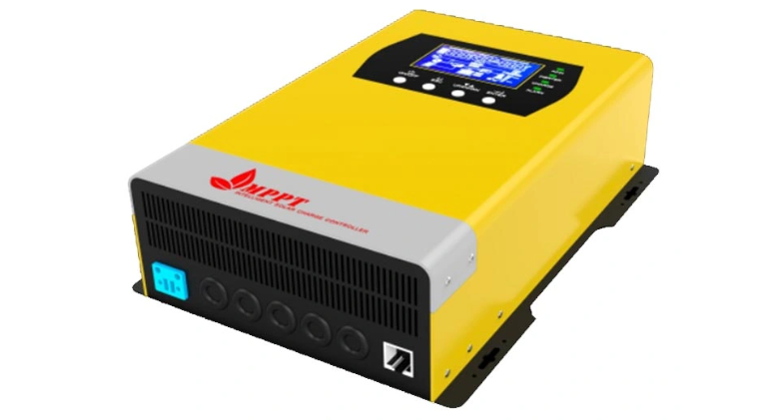

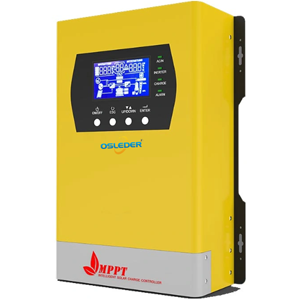

MPPT Controller
  1. Three-stage smart charging, Adjustable parameters by pressing buttons, 12V/24V/48V adaptive.
  2. Production: High voltage protection,Over load protection,Battery reverse connected protection, Low voltage protection, Overheating protection, Output short-circuit protection.
  3. The maximum utilization rate of solar energy can reach 99%, With super fast charging algorithm, efficiency increased by 30%.
  4. PV input range is wide, users can choose different numbers of solar panels according to actual conditions.

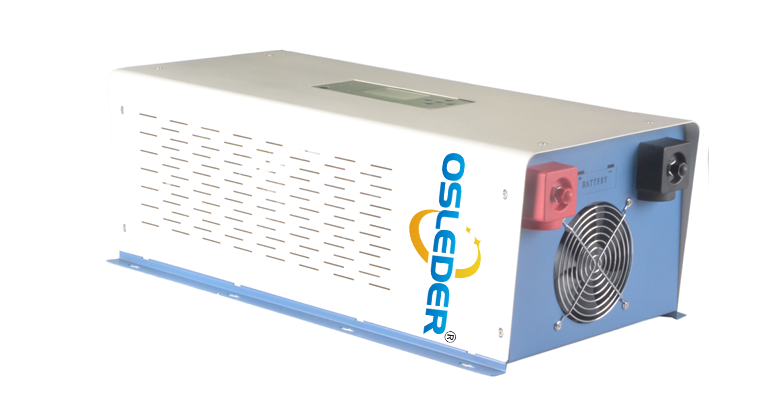

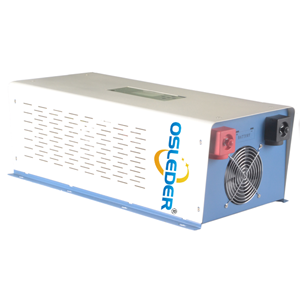

Pure Sine Wave Inverter
  1. Solar Off Grid Inverter 100% sufficient transformer and advanced wire design to ensure that the inverter can output at full load.
  2. Solar Off Grid Inverter has four functions: UPS, voltage regulation, inverter and charging.
    3. Support lithium batteries, lead-acid batteries and other batteries.
  3. The user can adjust various charging parameters and discharge parameters through the display.
  4. There is a mobile phone APP. You can browse the various parameters of the inverter operation through the mobile phone.

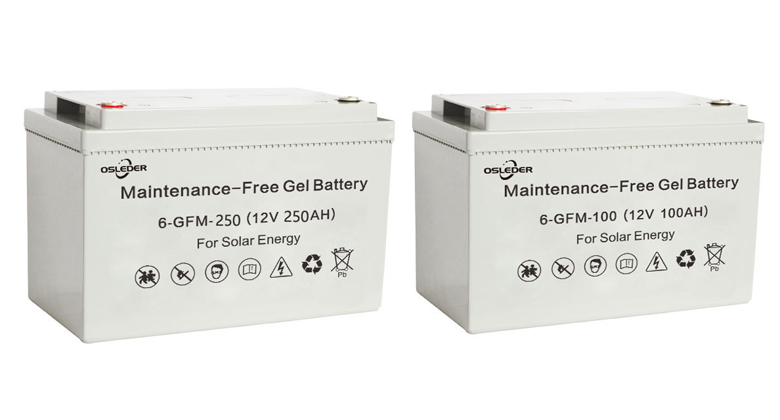

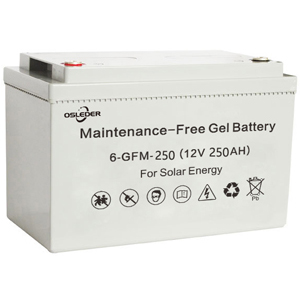

GEL Lead Acid Battery
  1. Maintenance-free, with no need for regular watering.
  2. Spill- and leak-proof.
  3. Can be mounted in any position.
  4. Offer more resistance to extreme temperatures.
  5. Better withstands shock and vibration.
  6. Classified as non-hazardous materials for road transportation.
  7. Offers extremely low self-discharge rates.
PV Combiner Box
  1. Cross Section: 4mm2, 6mm2 Optional.
  2. Rated Voltage:600VDC/1000VDC(TUV).
  3. Rated Current: 55A,70A.
  4. Colors: Black For STD, Red Optional.
PV MOUNTING STRUCTURE(MOUNTING BRAKETS)
  1. Roof type mounting rack.
  2. Including complete fittings.
  3. Aluminum alloy.
  4. Rack can be customized per request.
ACCESSORIES
  1. AC Cable.
  2. AC Breaker.
  3. DC Switches.
  4. PV Cable & MC4 Connector.

Components List of Pure Sine Wave Inverter MPPT controller Lead Acid Battery Off Grid Solar System:

Off Grid Solar Power System Parts 5KW 10KW 15KW 20KW 25KW 30KW Unit
Solar Inveter 1 2 3 4 5 6 PCS
MPPT Controller 1 2 3 4 5 6
12V250AH GEL  Battery 4 8 12 16 20 24
380W PV Panel 12 24 36 48 60 72
PV Panel Mounting Bracket 1 SET
Power Distribution Box 1 2 3 4 5 6 PCS
Cable 1 SET
PV MC4 Connector

Production Process of Pure Sine Wave Inverter MPPT controller Lead Acid Battery Off Grid Solar System:

Since 2012, OSLEDER has gained rich experience in designing and manufacturing the most efficient and robust hybird solar inverters and the most complete off-grid solar system. A focus on testing, quality control, and traceability ensures our solar power system offers an industry-leading warranty and reliability guarantee. Invest in yourself by going OSLEDER. This will be your most economical long-term investment yet.
