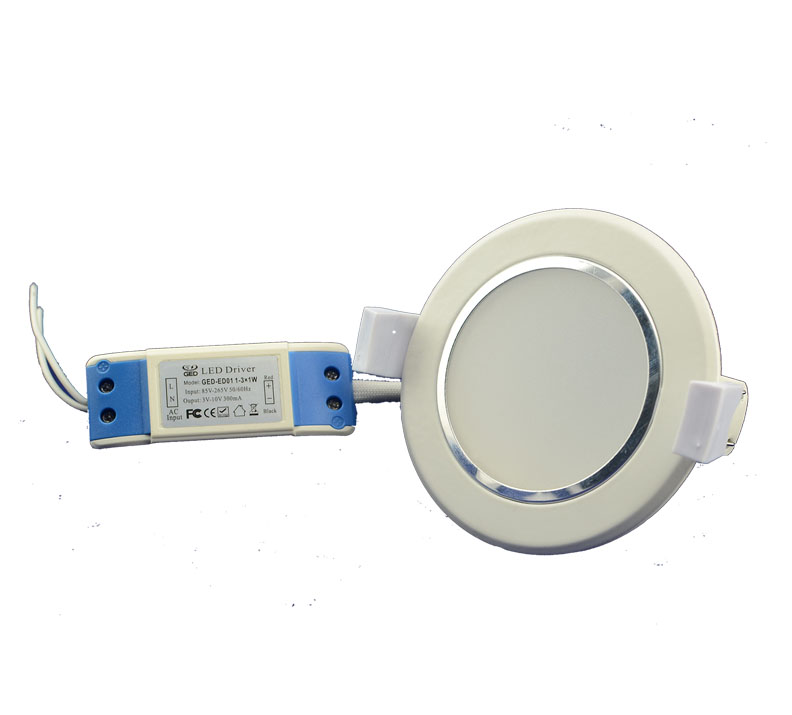

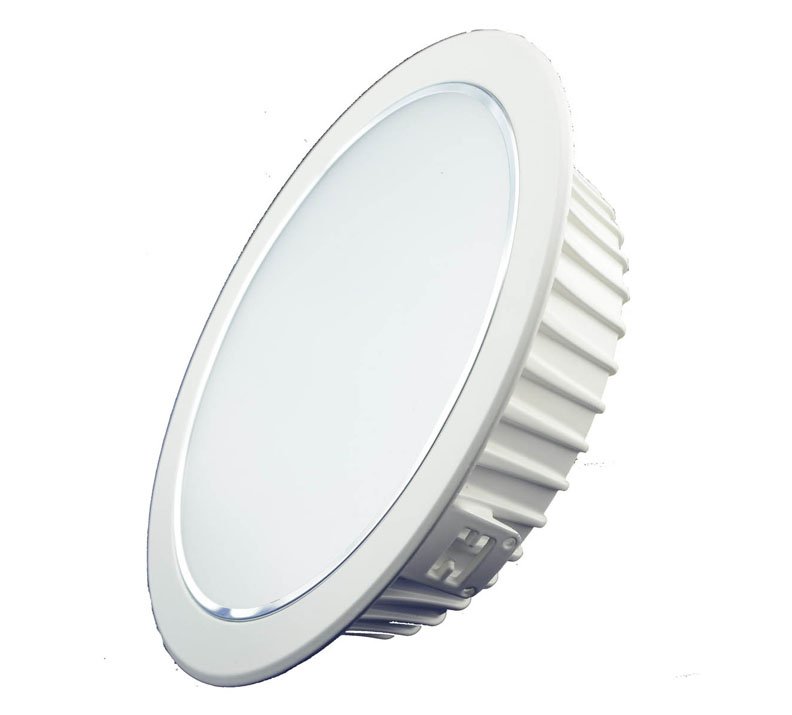

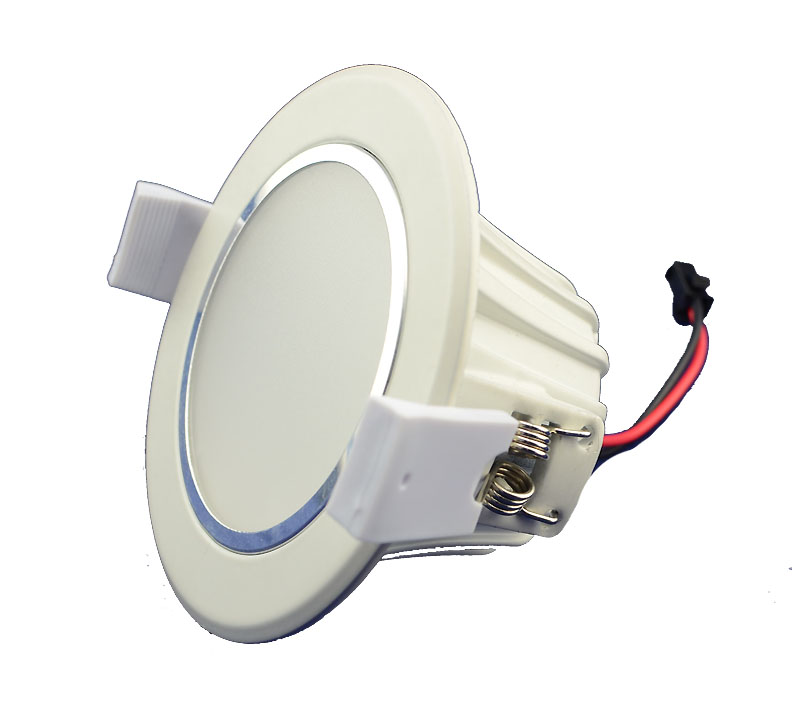

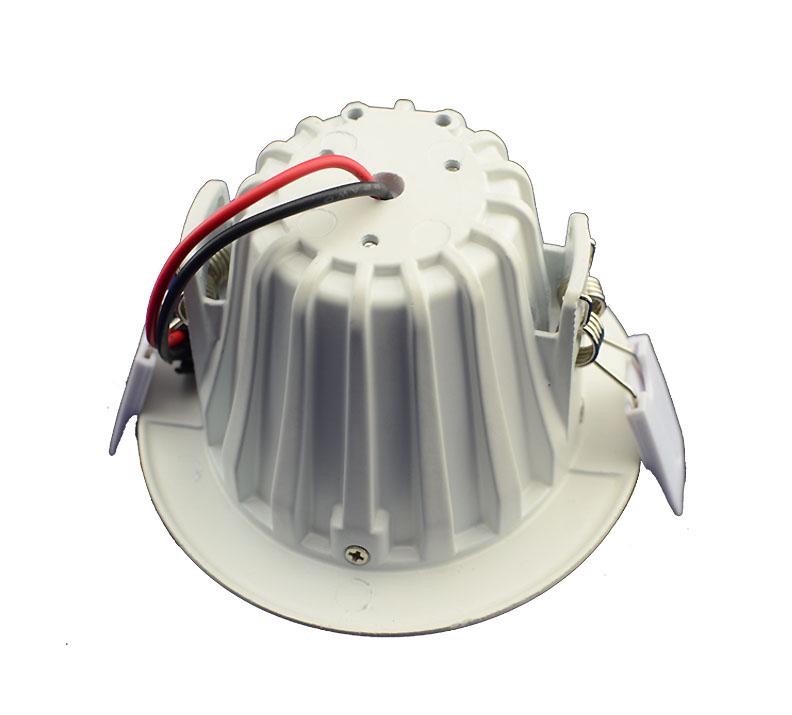

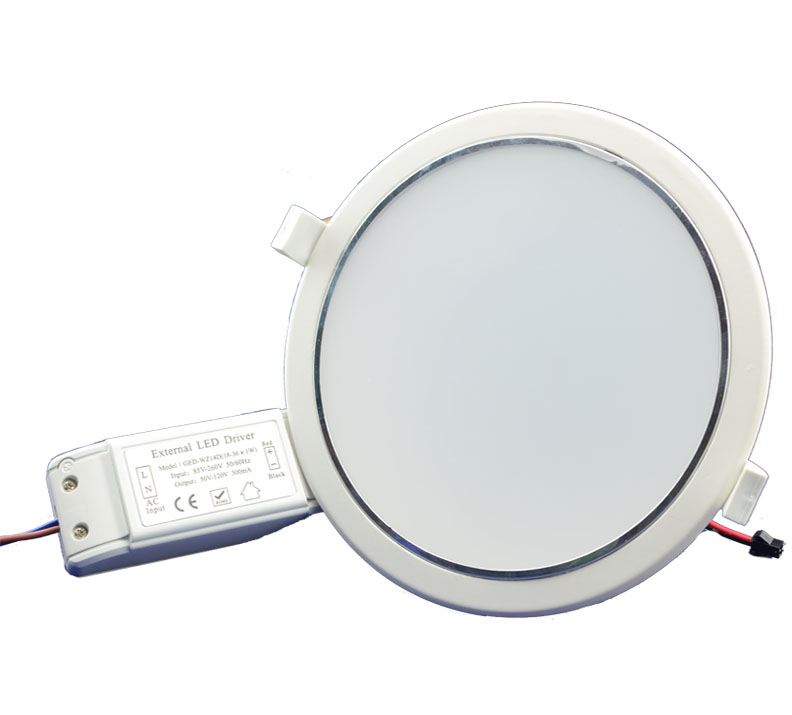

COB/SMD Epistar 5730 LED Downlight Fixtures 3W-20W Series
| Luminous Effi: | 90-100lm/w |
| Power: | 3W-20w |
| LED : | COB/ SMD5730 |
| Input Voltage: | AC85-265V |
| Certifications: | CE/ROHS |
| Warranty: | 3 Years |
| Model | Power | Dimension | Cut-out | Net weight |
|---|---|---|---|---|
| OS-DL3W2.5I-2 | 3W | D95*H53 mm | D78 mm | 0.25kg |
| OS-DL5W3.5I-2 | 5W | D115*H55 mm | D100 mm | 0.3kg |
| OS-DL8W4I-2 | 8W | D140*H60 mm | D120 mm | 0.4kg |
| OS-DL12W5I-2 | 12W | D170*H65 mm | D150 mm | 0.48kg |
| OS-DL15W5I-2 | 15W | D190*H65 mm | D170 mm | 0.6kg |
| OS-DL20W6I-2 | 20W | D230*H50 mm | D190 mm | 0.85kg |
LED Downlight Specification:
| RA: | 》80 |
| Color Temperature: | 2700-6500K |
| Color: | warm white / daylight / pure white/cool white |
| Lighting Angle: | COB:60-80°/SMD:120° |
| Material: | Aluminum alloy frame +PC cover |
| Life-span: | >50,000 hours |
Application:
LED downlight mainly used in shopping malls, hotels, libraries, offices, brand clothing, shoes accessories store surface, galleries, boutiques, homes, restaurants and other indoor lighting.
Benefits:
1. Energy Saving: Saving 80% electricity cost to traditional light.
2. Eco-friendly: No UV, IR, mercury and other harmful materials,supporting the green driver.
3. Long lifespan: >50000 hours.
4. Exquisite small appearance.
5. No flickering & FR interference.
6. No delay on start.
7. Better Heat Sink Technology which cools down the down-lighters quickly.
