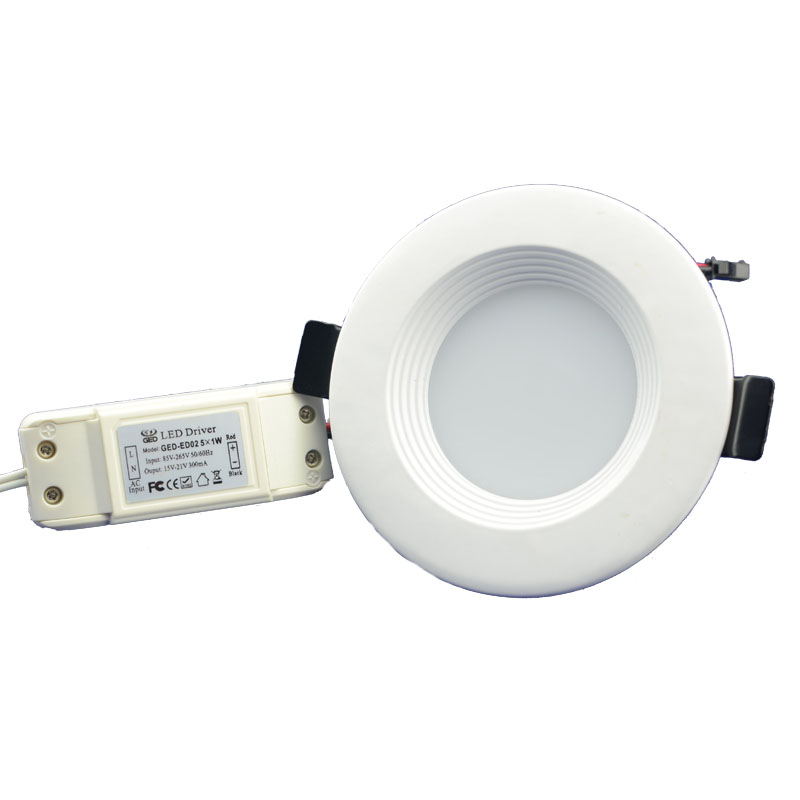

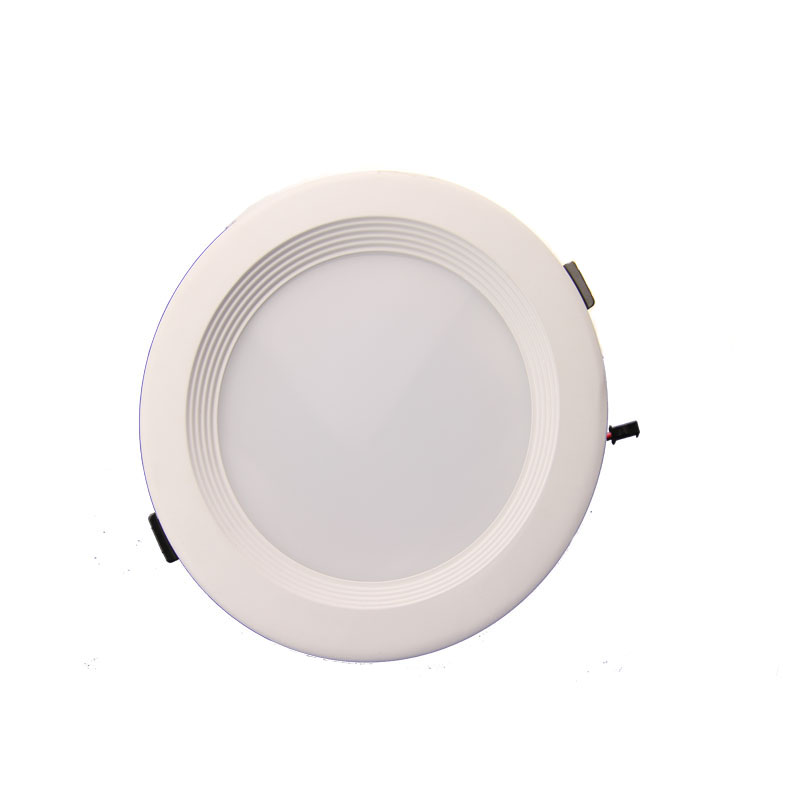

Downlight LED COB/SMD 3W-30W Series
| Luminous Effi: | 90-100lm/w |
| Power: | 3W-30w |
| LED : | COB/ SMD |
| Input Voltage: | AC85-265V |
| Certifications: | CE/ROHS |
| Warranty: | 3 Years |
| Model | Power | Dimension | Cut-out | Net weight |
|---|---|---|---|---|
| OS-DL3W2.5I-3 | 3W | D90*H54 mm | D75 mm | 0.3kg |
| OS-DL9W4I-3 | 9W | D130*H66 mm | D115 mm | 0.4kg |
| OS-DL12W4I-3 | 12W | D160*H65 mm | D140 mm | 0.5kg |
| OS-DL15W5I-3 | 15W | D180*H74 mm | D165 mm | 0.6kg |
| OS-DL18W5I-3 | 18W | D190*H80 mm | D175 mm | 0.85kg |
| OS-DL20W6I-3 | 20W | D190*H83 mm | D175 mm | 0.9kg |
| OS-DL30W7I-3 | 30W | D230*H85 mm | D205 mm | 1.0kg |
LED Downlight Specification:
| RA: | 》80 |
| Color Temperature: | 2700-6500K |
| Color: | warm white / daylight / pure white/cool white |
| Lighting Angle: | 60-90 degree |
| Material: | Aluminum alloy frame +PC cover |
| Life-span: | >50,000 hours |
Application:
LED downlight mainly used in shopping malls, hotels, libraries, offices, brand clothing, shoes accessories store surface, galleries, boutiques, homes, restaurants and other indoor lighting.
Benefits:
1. Energy Saving: Saving 80% electricity cost to traditional light.
2. Eco-friendly: No UV, IR, mercury and other harmful materials,supporting the green driver.
3. Long lifespan: >50000 hours.
4. Exquisite small appearance.
5. No flickering & FR interference.
6. No delay on start.

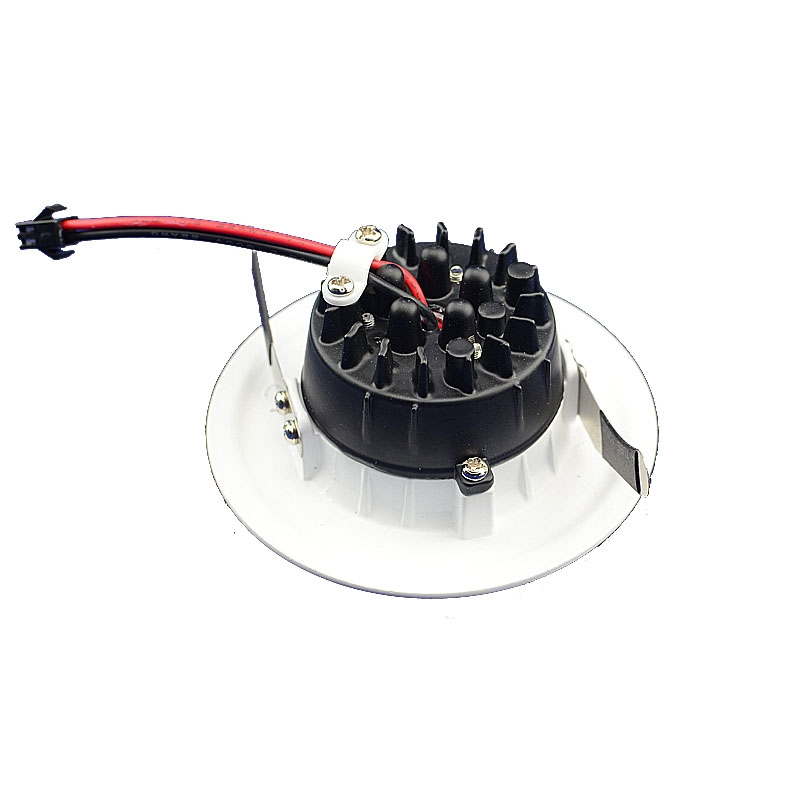

7. Better Heat Sink Technology which cools down the down-lighters quickly.
