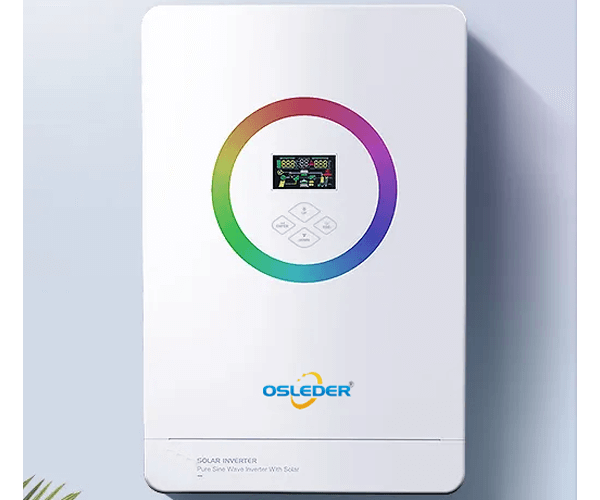

5kw 10kw Off Grid Hybrid Solar Inverter 48VDC to 220VAC All in One Pure Sine Wave Inverter with MPPT Charge Controller, fit for Lead-Acid/Lithium and No Battery

5kw 10kw Off Grid Hybrid Solar Inverter 48VDC to 220VAC All in One Pure Sine Wave Inverter with MPPT Charge Controller, fit for Lead-Acid/Lithium and No Battery

OS-OGSI series is a new upgrade Hybrid Inverter. It adopts DSP control and features high response speed,reliability, and industrial standard through an advanced control algorithm. And more energy saving and lower consumption, high power, more powerful efficiency. Product appearance upgraded, comprehensively improve the sense of user experierce.

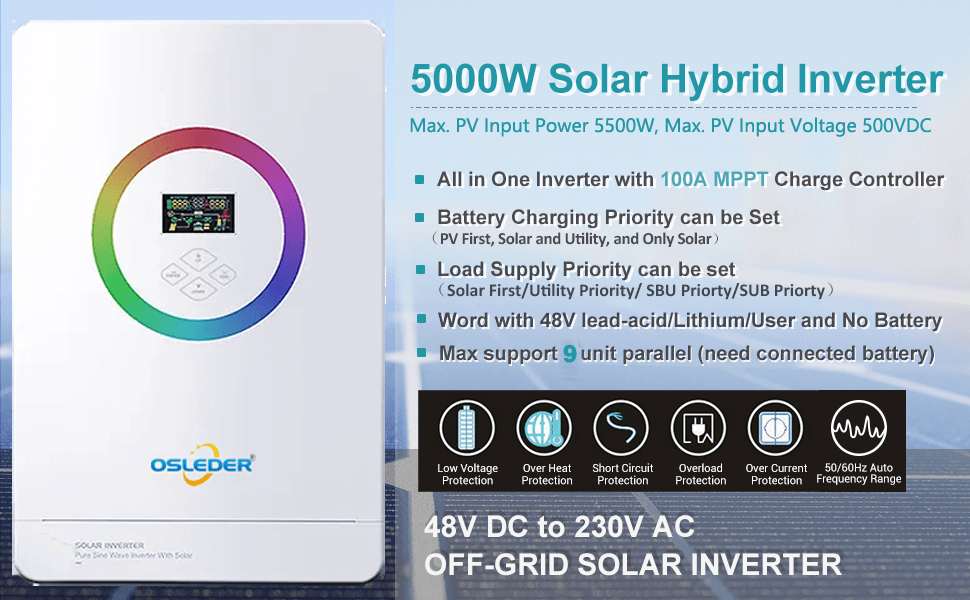

  • 【New Upgrade Hybrid Inverter】5KW Solar Hybrid Inverter Output Voltage Regulation: 230Vac±5%, Max Input Power: 5500W; Max PV Array Open Circuit Voltage: 500VDC, PV Array MPPT Voltage Range: 120VDC~450VDC. 10KW Pure sine Wave Inverter 48V DC to AC240V, built in 200A Mppt charge controller, Max.PV Input Power: 11000W, Voltage range: 120-450Vdc, Max.PV Input VOC: 500V DC. Nominal Input Frequency: 50/60Hz, Output Power: 10000W.
  • 【Multiple Charging Modes】Off Grid Solar Inverter have 4 charging modes are optional, i.e. Only Solar, Mains Frist , Solar Frist and Mains & Solar hybrid charging; and 3 output modes are available, i.e. Solar Frist, Mains Frist and SBU Priority, uninterrupted power supply to meet different application requirements. And compatible to mains voltage or generator power, Auto restart while AC is recovering.
  • 【Precise Touch Control】Durable, responsive, easy to operate.
  • 【Parallel Function】5KW Off-Grid inverter Support parallel function, and can parallel up to 9 inverters in parallel! ! ! ! ! which means it can handle max 5000W*9 solar power and 5000W*9 ac power output system.
Have Questions?
click here to contact a support specialist

This is a multi-function inverter/charger, combining functions of inverter, solar charger, and battery charger to offer uninterruptible power support with portable size.

Its Precise Touch Control display offers user-configurable and easy-accessible touch operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.

Key Features of 5kw 10kw Off Grid Hybrid Solar Inverter:

1. Supports lead acid battery and li-ion battery connections.

2. With a dual activation function when the li-ion battery is dormant; either mains/photovoltaic power supply access can trigger the activation of the li-ion battery.

3. Support Wifi Remote Monitoring.

4. Status indicated by glitzy lights.

5. Built-in MPPT tracking efficiency with 99.5%.

6. Touch control buttons easy to use.

7. Supports two solar inputs and simultaneous tracking of two solar maximum power charging/carrying capacity.

8. 4 charging modes are available: solar only, mains priority, solar priority, and mixed mains/PV charging.

9. 360° protection with complete short circuit protection, over current protection, over under voltage protection, overload protection, backfill protection, etc.



Get started with a free quote

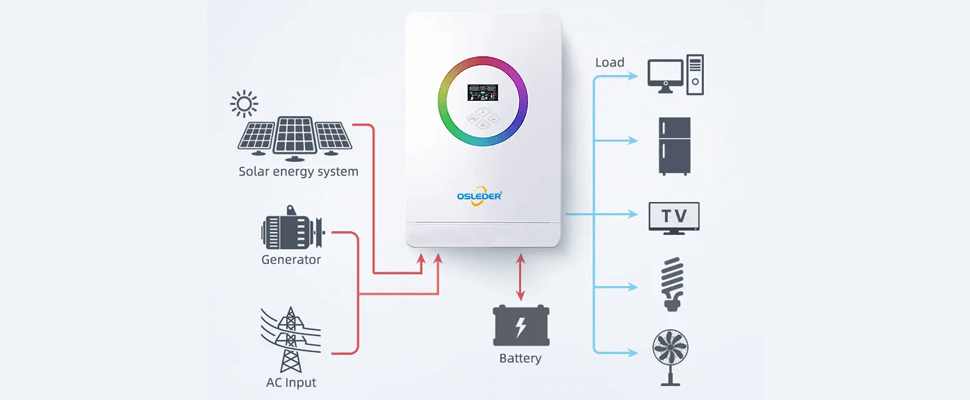

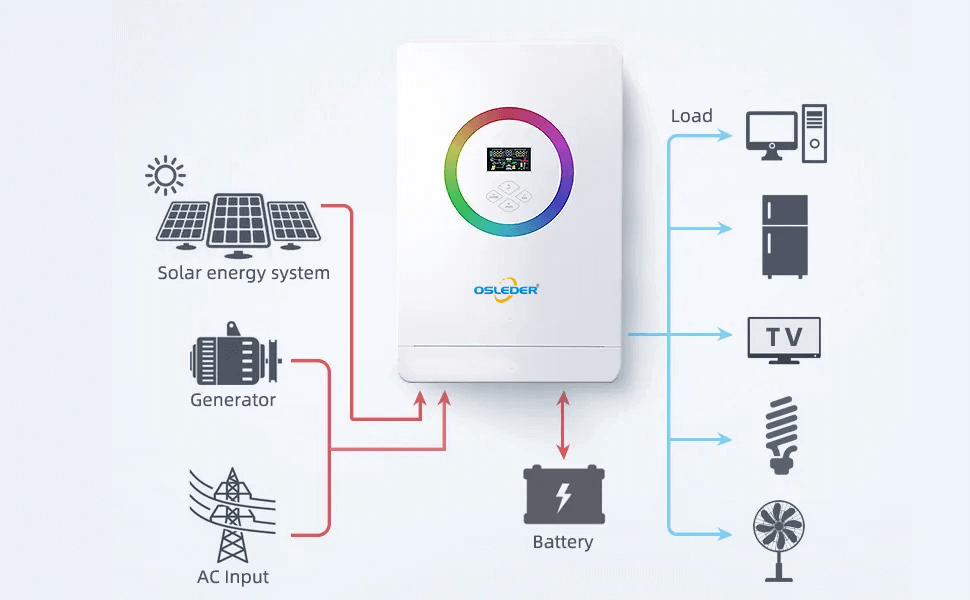

Basic System Architecture: The following illustration shows the basic application for this inverter/charger.




Pure sine wave high frequency inverter, running speed of the load is faster, quieter, stable waveform, more suitable for sensitive electrical or electronic products.


It includes the following devices to have a complete running system:


1.Generator or Utility.


2.PV modules.


3. Inverter


4.Lead-acid/Lithium/User and No Battery.


5. Home load

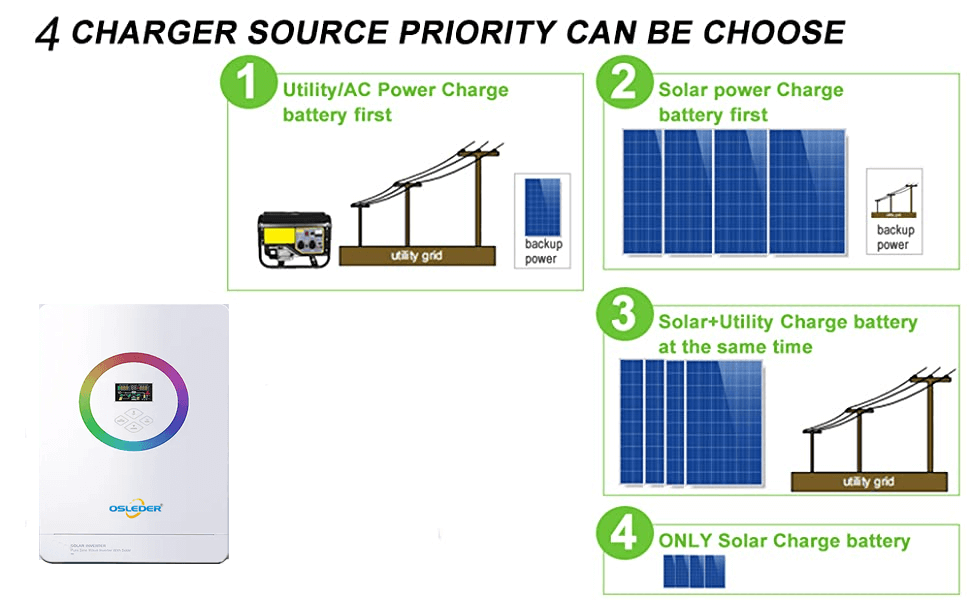

Four modes can be choose when charging battery:




Four modes can be choose when charging battery:


Utility first: Utility will charge battery as first priority source, then Solar Power.


Solar first: Solar will charge battery as first priority source, then Utility Power.


Solar and Utility(default): Solar Power and Utility power will charge battery at the same time.


Only Solar: Solar Energy as the only source charge battery.

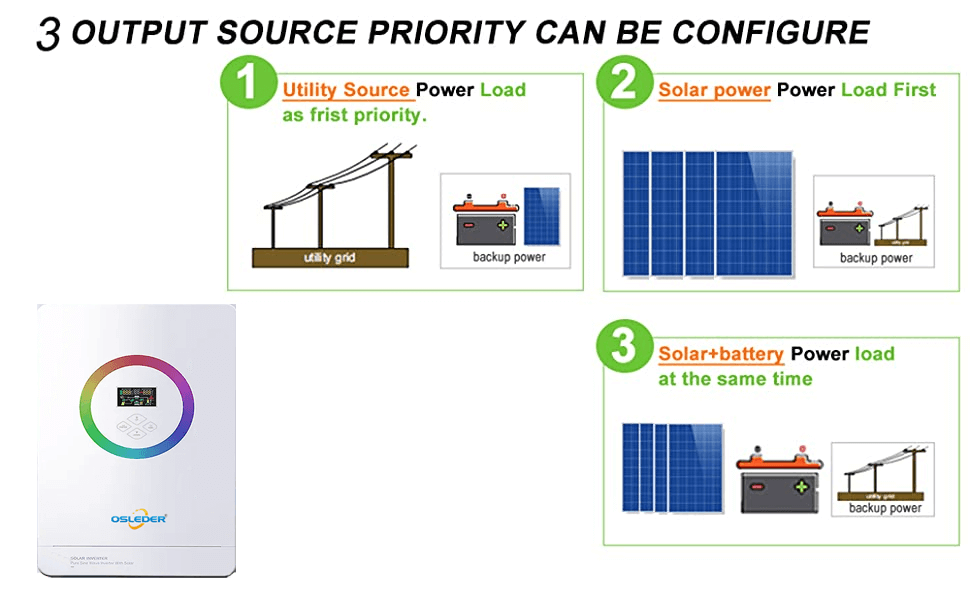

Three Output modes can be choose:




Three Output modes can be choose：


Utility first (default):Utility will provide power to theloads as first priority, Then Solar Power, battery Power


Solar first: Solar energy provides power to the loads as first priority. If solar energy is not sufficient to power all connected loads, utility will supply power to the loads at the same time，then battery power.


SBU Priority: Solar energy provides power tothe loads as first priority. If solar energy is not sufficient to power all connected loads, battery energy will supply power to the loads at the same time

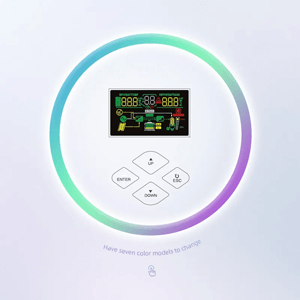

Precise touch control and colorful display


Durable, response, easy to operate. And a variety of colors show different working status, the status is clear and easey to know, fashion with a sense of science and technology.

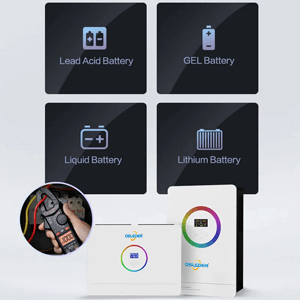

Compatible with a variety of batteries


Automatic adaptive battery charging,charging current is strong, charging current is up to 100A.













APP remote monitoring


One-key query the inverter running status and fault prompt, which is easy and clear.

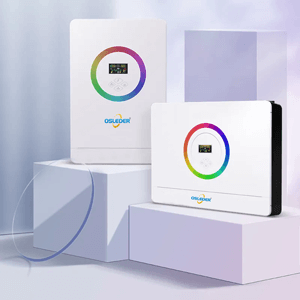

Ultra-thin body


More energy saving and lower consumption, high power, more powerful efficiency. Product appearance upgraded comprehensively improve the sense of user experience.










The Specification of 5kw 10kw Off Grid Hybrid Solar Inverter 48VDC to 220VAC Pure Sine Wave Inverter with MPPT Charge Controller:






Model:
OGSI-5KW
OGSI-10KW




Rated Power：
5000W
10000W




Peak Power:
10000VA
20000VA




Phase：
1 phase




Input Formation:
L+N+PE




Input Voltage:
220VAC




Input Voltage Range：
154-264VAC±3V（Normal Mode), 185-264VAC±3V（UPS Mode）




Frequency range:
50/60Hz+0.1%




Output Voltage:
208VAC 220VAC 230VAC240VAC 5%




Transfer Time:
10ms For Computer Equipment,20ms For Household Equipment




Output Wave:
Pure Sine Wave




Peak Efficiency (Battery Mode):
>94%




Rated Voltage:
48Vdc




Constant Charging Voltage

(Adjustable)
56.4Vdc




Charging Method:
MPPT
Dual MPPT




MAX PV Input Power:
5500W
5500W+5500W




MAX PV Input Voltage:
500Vdc
500Vdc




MAX PV Charge Current:
100A
100A+100A




MAX AC Charge Current:
100A
100A+100A




MAX Charge Current:
100A
100A+100A




MPPT Tracking Range:
120~430Vdc
120~450Vdc




LCD Display:
5PIN / Pitch2.0mm,Baud Rate2400




GENERAL:




Physical:




Dimension DxWxH(mm):
490*312*125mm




Package size: L*W*H(mm):
565*383*188mm




Net Weight(kg):
8.45kg
11.56g




Gross Weight(kg):
9.61kg
13.45kg




Interface:




Communication Port:
RS232/WIFI/Remove LCD/GPRS




Environment:




Operating Temperature:
-10~50℃






OSLEDER can provide you with a battery package.


The battery capacity of the correct matching system is determined according to the specific usage requirements of the load and application scenarios, otherwise, it will easily lead to insufficient battery capacity or excessive waste of power generation. For details, please refer to the manual recommendation or consult us for help.


The Production Process of 5kw 10kw Off Grid Hybrid Solar Inverter 48VDC to 220VAC Pure Sine Wave Inverter with MPPT Charge Controller:


Since 2012, OSLEDER has gained rich experience in designing and manufacturing the most efficient and robust  Off Grid Hybrid Solar Inverter. A focus on testing, quality control, and traceability ensures our solar power system offers an industry-leading warranty and reliability guarantee. Invest in yourself by going OSLEDER. This will be your most economical long-term investment yet.
