New Upgrade Small Size MPPT Solar Charge Controller 12V/24V 30A 40A 50A 60A 100A Current Auto Focus MPPT Tracking Charge with LCD Display Dual USB Solar Regulator Charge Controller Multiple Load Control Modes

OS-BLC series is the strongest current focus tracking MPPT, and has the national solar practical invention certifcate, product appearance certificate and related certification. For a new technology to be recognized by everyone, it needs users to use and compare. This product is to track the current focusing on the highest power point of the MPPT to adjust the internal charging method, so as to maximize the conversion of light energy into electrical energy.

  • 【Multi-function LCD Displays】This controller is 12V/24V automatically adapt,first connect the battery,then connect the solar panels,when you first use it, make sure the battery has enough voltage,so that the controller can recognize the correct battery type.
  • 【Reliable Protection】Overvoltage, Short circuit, Overload, Overcharge, Over discharge protection function; Automatic focusing MPPT tracking charging, high charging efficiency, Non-stop detection during charging, bidirectional focusing tracking.
  • 【Industrial-grade Master Chip】16AD sampling accuracy, temperature Charging current, discharge current accurate real-time display, power generation at a glance.
  • 【Dual USB MPPT Solar Charge Controller】 Using innovative MPPT technology high tracking efficiency up to 99%; Please refer to the information if you are not familiar with Mppt technology:There are many kinds of MPPT technology,Our Solar Controller Mppt technology is to detect the maximum charging current,not the boost type or the automatic charging of the solar panel voltage.
Have Questions?
click here to contact a support specialist

This is a new upgrade small size MPPT solar charge controller with 12V/24V 30A 40A 50A 60A 100A.

There are many kinds of MPPT technology, Our Solar Controller Mppt technology is to detect the maximum charging current, not the boost type or the automatic charging of the solar panel voltage.

Key Features of  30A 40A 50A 60A 100A MPPT Solar Charge Controller:

1. Industrial-grade master chip, 16AD sampling accuracy, temperature, charging current, discharge current accurate real-lime display, power generation at a glance.

2. Automatic focusing MPPT tracking charging , high charging efficiency, non-stop detection during charging, bidirectional focusing tracking

3. Large-screen LCD display, adjustable charging and discharging parameters. Ultra-wide charge and discharge adjustable, as long as you understand the characteristics of the battery set its corresponding charging parameters, you can charge a battery. When the output is off, the time can be adjusted, which is more convenient (on the market, there is no point adjustment)

4. A complete three-phase charge management, effectively protect the battery, the battery is more durable.

5. Built-in overheating, overcurrent, short circuit, open circuit protection , reverse connection protection, when the fault is eliminated, the controller automatically recovers, does not damage the device.

6. Bidirectional MOS tube anti-backflow circuit, high-power charging mode, ultra-low heat.

7. R5.0 solar charging DC plug, R5.0 DC lamp output DC plug, convenient connection.

Get started with a free quote

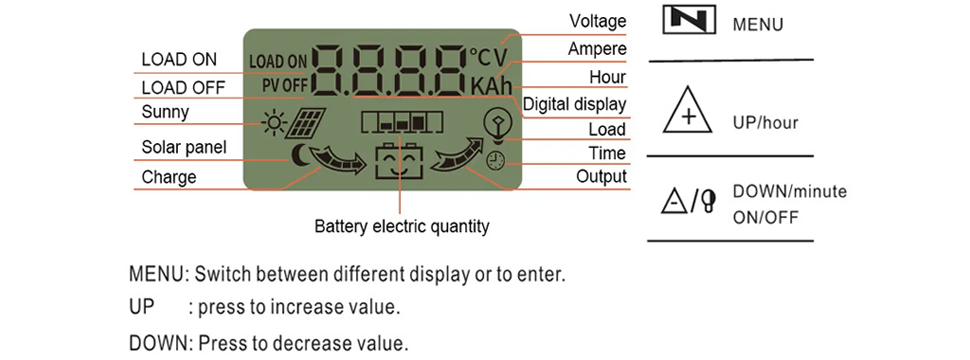

Solar Charger Controller LCD Display and KEY:.

Advantage of  30A 40A 50A 60A 100A MPPT Solar Charge Controller:

1. Dual-wave or multi-peak tracking technology, when the solar panels are shaded or some of the solar panels are damaged, multiple peaks will appear, and the controller can still accurately track the maximum point power；

2. Using advanced digital power technology, the circuit energy conversion efficiency is as high as 98% ；
3. The combination of various tracking algorithms can accurately track the best working point within 1 second, and the MPPT tracking efficiency can reach up to 99.9%；
4. It has a current-limiting charging mode. When the power of the battery panel is too large and the charging current is greater than the rated current, the controller automatically reduces the charging efficiency and makes it work at the rated charging current.

Multiple input methods

R5.0 solar charging DC socket.
R5.0 DC lamp output DC socket.
Easy connection and low heat generation.

Smart large screen console

LCD display, adjustable charging and discharging parameters, more convenient.

Take care of the battery

Complete 3-stage charging management, effectively protect the battery, the battery is more durable.

Multiple layers of security protection

1. Short circuit protection 2. Open circuit protection 3. Overcurrent Protection
4. Overcharge protection 5. Over discharge protection 6. Reverse polarity protection




The Specification of 30A 40A 50A 60A 100A MPPT Solar Charge Controller:






Model:
BLC-30A
BLC-40A
BLC-50A
BLC-60A
BLC-100A




Rated Charging Current:
30A
40A
50A
60A
100A




Rated Discharge Current:
10A
10A
20A
20A
30A




System Voltage:
12/24V  Automatic adaption




Types of Battery Charging:
Lithium Battery, Sealed lead acid battery, GEL lead acid battery, open lead acid battery (can also customize parameters for other types of battery charging




Charging mode:
Three stages: constant current, constant voltage, floating charge




Solar Photovoltaic Voltage:
12V battery with 18V solar panel, 24V battery with 36 solar panel




Full Voltage Value:
B01 Lithium Battery (12.2V) / B02 Colloidal Battery (14.2V) / B03 Open Cell (14.6V)




12V Floating Charge Voltage:
14.2 V ( default, Adjustable ) 12.0V-15.0V




12V Discharge cut-off voltage:
10.7 V ( default, adjustable ) 9.0V-11.5V




12V Discharge recovery voltage:
12.5 V ( default, adjustable ) 11.0V-13.0V




24V Floating Charge Voltage:
28.4 V ( default, Adjustable ) 24.0V-29.0V




24V Discharge cut-off voltage:
19.0 V ( default, Adjustable ) 18.0V-22.0V




24V Discharge recovery voltage:
22.0 V ( default, adjustable ) 22.0V-26.0V




Standby current:
10mA




USB Output:
5V / 2A MAX




Operating temperature:
-35℃ ~+60℃






The Production Process of 30A 40A 50A 60A 100A MPPT Solar Charge Controller:


Since 2012, OSLEDER has gained rich experience in designing and manufacturing the most efficient and robust 30A 40A 50A 60A 100A MPPT Solar Charge Controller. A focus on testing, quality control, and traceability ensures our solar power system offers an industry-leading warranty and reliability guarantee. Invest in yourself by going OSLEDER. This will be your most economical long-term investment yet.








OS-BLC Series MPPT Solar Charge Controller FAQs


Q1. How many watts (W) of solar panels can be connected?


A1. 30A Within 360W, 40A Within 480W, 50A within 600W, 60A within 720W, 100A within 1200W.


Q2. Does this controller support lithium batteries?


A2.  The new controller can be used for lead-acid batteries and lithium batteries. If you charge lithium batteries, you must set the charging parameters after connecting to the power. Please refer to the manual for details.


Q3. My solar panel is 36V 200W, can I charge 12V battery?


A3. To charge a 12V battery, the working voltage of the solar panel can be between 17V and 23V, and for a 24V battery, the working voltage of the solar panel can be between 36V and 46V.


Please make sure that the working voltage of the power supply and solar panels are within this range. If it is too high, the controller will be damaged.


Q4. Can the inverter be connected to the load side of the controller?


A4. Please connect the inverter directly to the battery and not to the load terminal of the controller.


Q5. Does the controller have requirement for battery capacity?


A5. No, as long as the voltage corresponds to it (but the maximum current of the board and the battery capacity should correspond). For example, the current of the solar panel is 5A, the battery capacity is preferably 50 AH, the current of the solar panel is 10A, and the battery capacity is preferably 100 AH. Do not use a large board to charge a small battery, which may be dangerous.

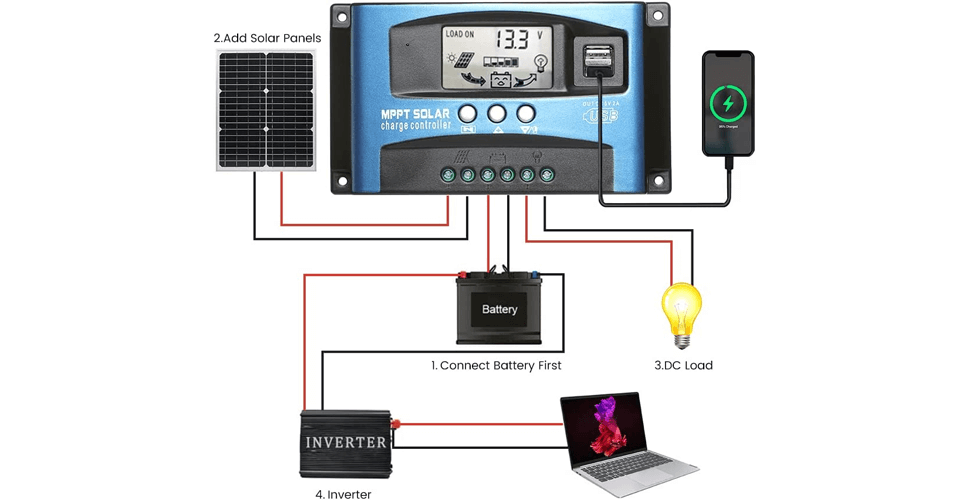

Q6. How do you connect the solar panels, batteries, and controllers?


A6. Please be sure to connect the battery first (to ensure that the battery is fully charged), then connect the solar panel. When disassembling, please remove the solar panel first, then remove the battery, please connect it exactly as this order, otherwise the controller and other components probably damaged.
