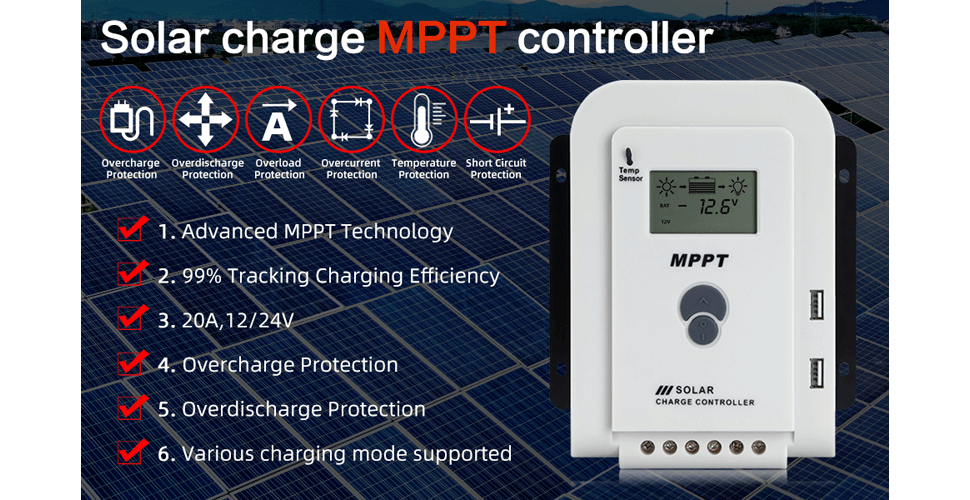

10A-60A MPPT Solar Charge Controller 12V/24V with Multip Circuit Protection

• Specifications

• Graphics and application images

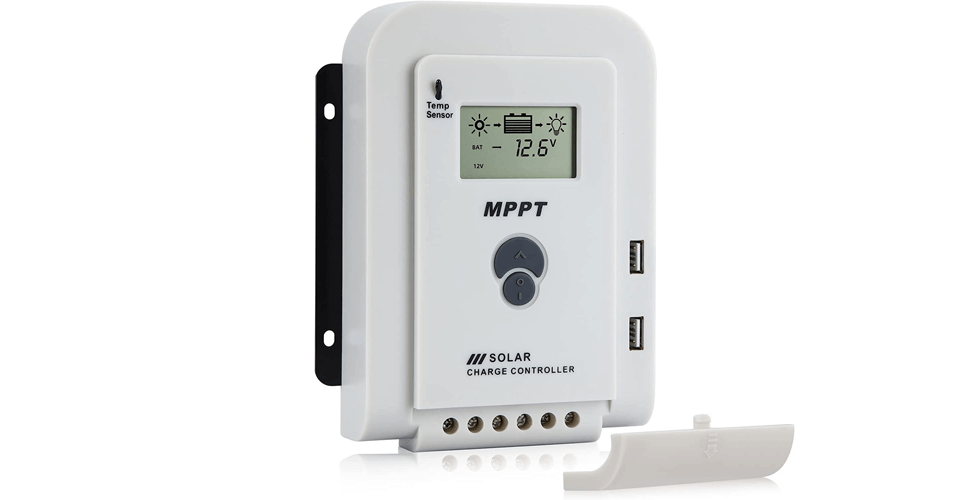

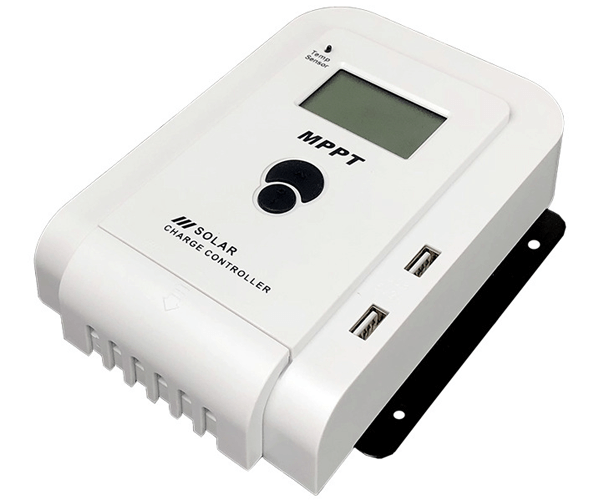

This is a new upgrade small size MPPT solar charge controller with 12V/24V 10A 20A 30A 40A 50A 60A.

There are many kinds of MPPT technology, Our Solar Controller Mppt technology is to detect the maximum charging current, not the boost type or the automatic charging of the solar panel voltage.

Key Features of  10A-60A MPPT Solar Charge Controller 12V/24V with Multip Circuit Protection:

1. Full stage auto recognition at 12/24V.

2. Inverted light control mode, turn off at dark and turn on at dawn.

3. Adjustable charge and discharge control parameters Intelligent three-stage charging mode.

4. With double 5V/2A USB ports.

5. Load overcurrent/short circuit protection.

6. Solar Controllers can be work from the solar panel when the voltage of lithium battery is 0v.

7. Automatic focusing MPPT tracking charging , high charging efficiency, non-stop detection during charging, bidirectional focusing tracking

8. A complete three-phase charge management, effectively protect the battery, the battery is more durable.

Get started with a free quote

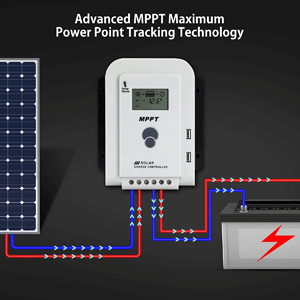

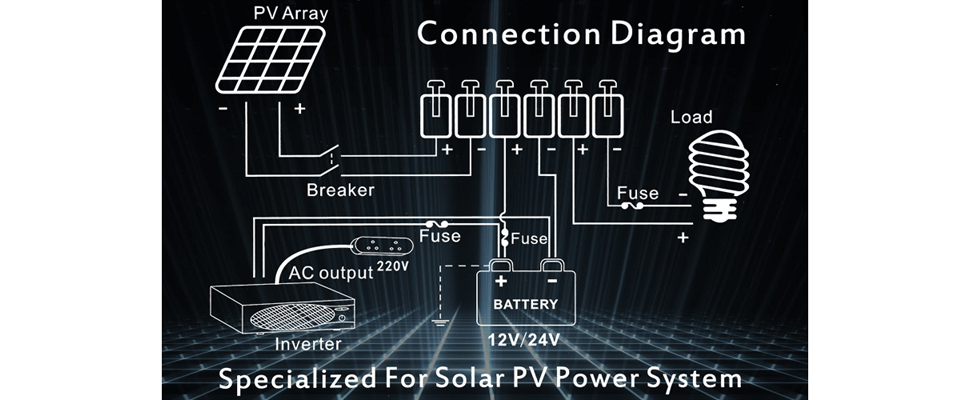

Connection Diagram of 10A-60A MPPT Solar Charge Controller 12V/24V with Multip Circuit Protection:

Advantage of  10A 20A 30A 40A 50A 60A MPPT Solar Charge Controller:

1. Dual-wave or multi-peak tracking technology, when the solar panels are shaded or some of the solar panels are damaged, multiple peaks will appear, and the controller can still accurately track the maximum point power；

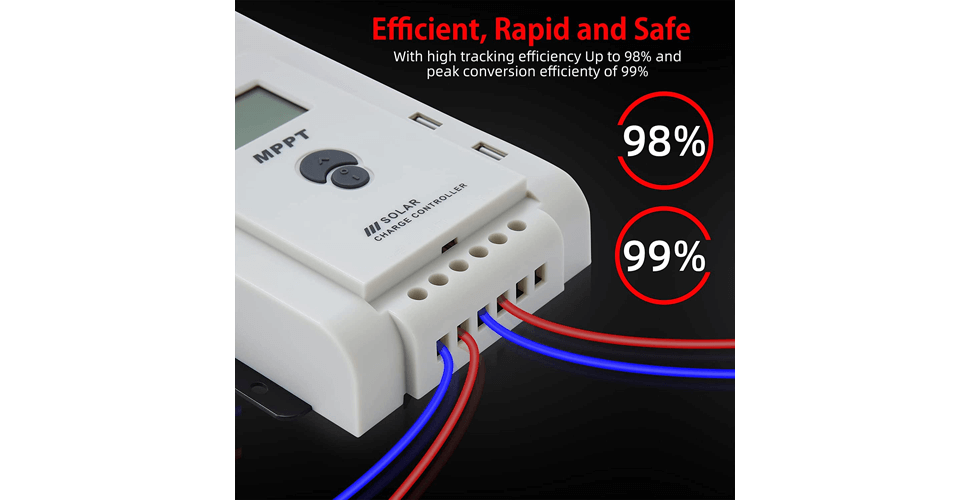

2. Using advanced digital power technology, the circuit energy conversion efficiency is as high as 98% ；

3. The combination of various tracking algorithms can accurately track the best working point within 1 second, and the MPPT tracking efficiency can reach up to 99.9%；

4. It has a current-limiting charging mode. When the power of the battery panel is too large and the charging current is greater than the rated current, the controller automatically reduces the charging efficiency and makes it work at the rated charging current.

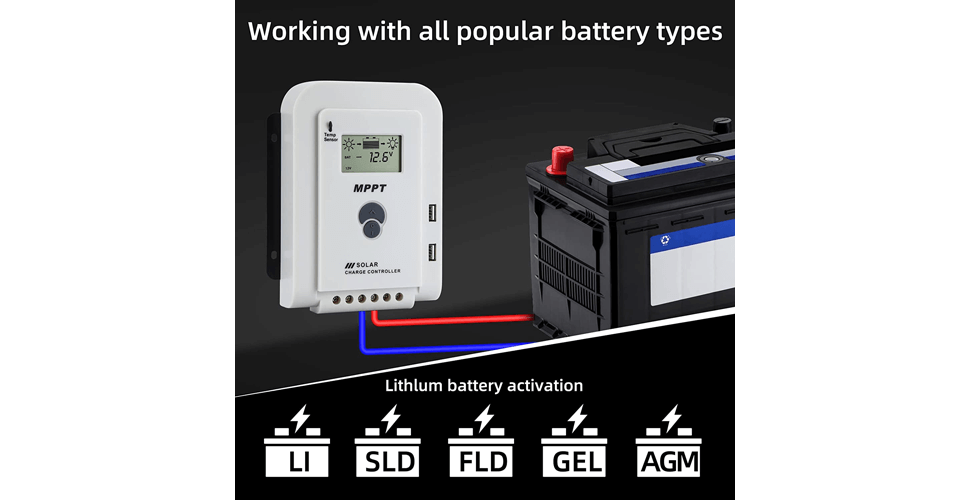

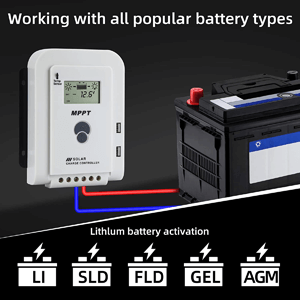

Suitable for a Variety of Batteries Solar Panel Regulator Compatible with various types of sealed, colloidal, open, lithium iron phosphate and ternary lithium batteries, automatic detection and identification of 12V and 24V batteries.	Easy Installation Simply connect the batteries, and the controller will automatically determine the battery voltage. Mounting Location: place the controller on a vertical surface protected from direct sunlight, high temperatures, and water. Make sure there is good ventilation. Power on: always connect battery first.

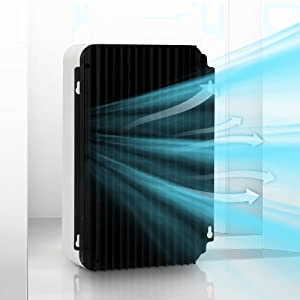

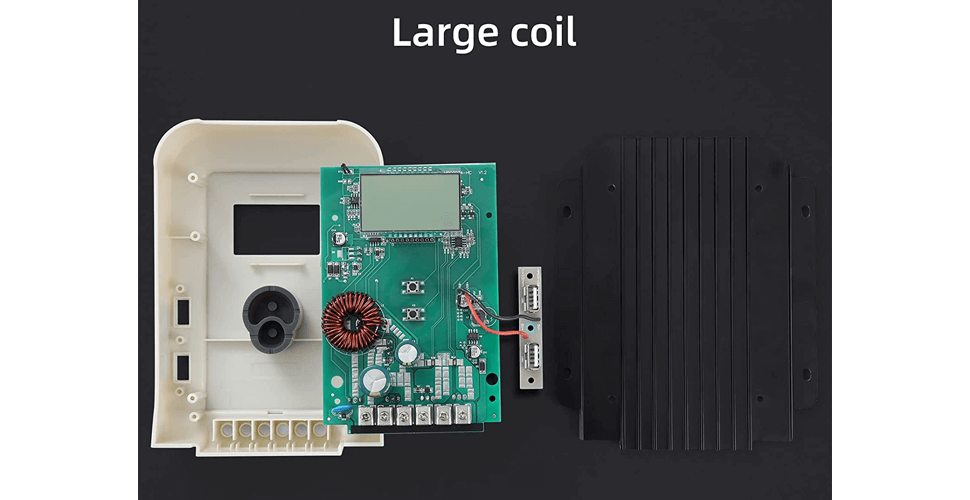

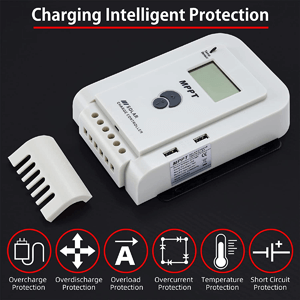

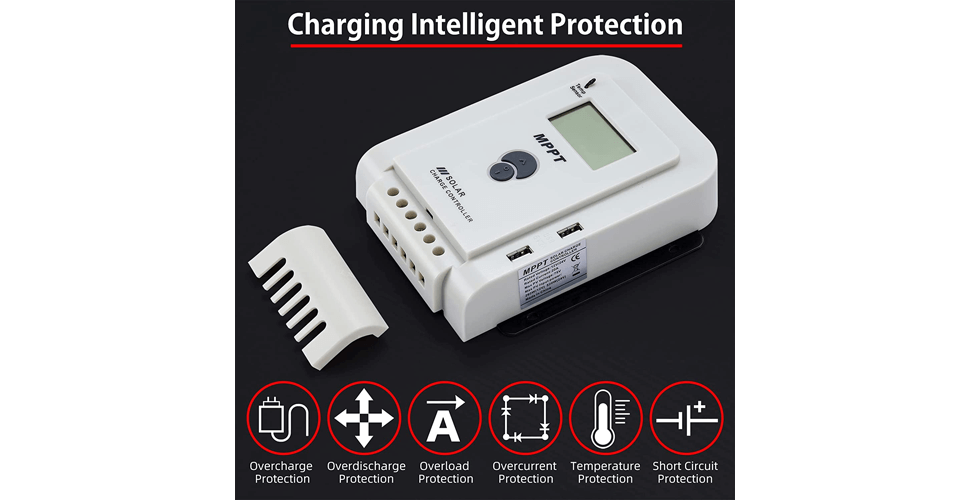

Excellent Heat Dissipation for Stable Charging The charge controller is designed with a die-cast aluminum heat sink on the back to maximize the surface area in contact with the surrounding air. The heat generated by the controller is transferred and dissipated to keep the temperature of the device at an optimal level. The excellent heat dissipation ensures stable and continuous charging.	Comprehensive Intelligent Protection system The built-in protection system can prevent the battery from overcharging, overdischarging, and photovoltaic reverse polarity protection, effectively ensuring the safer and more reliable operation of the solar energy system, and avoiding system failure or Damage caused by incorrect installation ensures efficient and safe charging of the battery.

The Specification of 10A 20A 30A 40A 50A 60A MPPT Solar Charge Controller:

Model:	MPX-10A	MPX-20A	MPX-30A	MPX-40A	MPX-50A	MPX-60A
Rated Charging Current:	10A	20A	30A	40A	50A	60A
Rated Discharge Current:	10A	10A	20A	20A	30A	30A
System Voltage:	12/24V  Automatic adaption
Types of Battery Charging:	Lithium Battery, Sealed lead acid battery, GEL lead acid battery, open lead acid battery (can also customize parameters for other types of battery charging
Charging mode:	MPPT Three stages: constant current, constant voltage, floating charge
Solar Photovoltaic Voltage:	12V battery with 18V solar panel, 24V battery with 36 solar panel
Full Voltage Value:	B01 Lithium Battery (12.2V) / B02 Colloidal Battery (14.2V) / B03 Open Cell (14.6V)
12V Floating Charge Voltage:	14.2 V ( default, Adjustable ) 12.0V-15.0V
12V Discharge cut-off voltage:	10.7 V ( default, adjustable ) 9.0V-11.5V
12V Discharge recovery voltage:	12.5 V ( default, adjustable ) 11.0V-13.0V
24V Floating Charge Voltage:	28.4 V ( default, Adjustable ) 24.0V-29.0V
24V Discharge cut-off voltage:	19.0 V ( default, Adjustable ) 18.0V-22.0V
24V Discharge recovery voltage:	22.0 V ( default, adjustable ) 22.0V-26.0V
Standby current:	10mA
USB Output:	5V / 2A MAX
Operating temperature:	-35℃ ~+60℃

The Production Process of 10A 20A 30A 40A 50A 60A MPPT Solar Charge Controller:

Since 2012, OSLEDER has gained rich experience in designing and manufacturing the most efficient and robust MPPT Solar Charge Controller. A focus on testing, quality control, and traceability ensures our solar power system offers an industry-leading warranty and reliability guarantee. Invest in yourself by going OSLEDER. This will be your most economical long-term investment yet.

•
•
•
•
•

OS-MPX Series MPPT Solar Charge Controller FAQs

Q1. How many watts (W) of solar panels can be connected?

A1. 30A Within 360W, 40A Within 480W, 50A within 600W, 60A within 720W.

Q2. Does this controller support lithium batteries?

A2.  The new controller can be used for lead-acid batteries and lithium batteries. If you charge lithium batteries, you must set the charging parameters after connecting to the power. Please refer to the manual for details.

Q3. My solar panel is 36V 200W, can I charge 12V battery?

A3. To charge a 12V battery, the working voltage of the solar panel can be between 17V and 23V, and for a 24V battery, the working voltage of the solar panel can be between 36V and 46V.

Please make sure that the working voltage of the power supply and solar panels are within this range. If it is too high, the controller will be damaged.

Q4. Can the inverter be connected to the load side of the controller?

A4. Please connect the inverter directly to the battery and not to the load terminal of the controller.

Q5. Does the controller have requirement for battery capacity?

A5. No, as long as the voltage corresponds to it (but the maximum current of the board and the battery capacity should correspond). For example, the current of the solar panel is 5A, the battery capacity is preferably 50 AH, the current of the solar panel is 10A, and the battery capacity is preferably 100 AH. Do not use a large board to charge a small battery, which may be dangerous.

Q6. How do you connect the solar panels, batteries, and controllers?

A6. Please be sure to connect the battery first (to ensure that the battery is fully charged), then connect the solar panel. When disassembling, please remove the solar panel first, then remove the battery, please connect it exactly as this order, otherwise the controller and other components probably damaged.
