Microwave Sensor LED Tri-proof Lighting PC Housing 1200mm 50w 5200Lm 4000K
| Power: | 50 W |
| LED efficiency: | 100-130 Lm/w |
| Color Temperature(CCT): | 4000 K |
| Sensor Principle: | Microwave Motion Detector |
| Certification: | CE, Rohs, SAA, C-Tick, UL |
| Warranty: | 5 Years |
Product benefits
- Functional design
- High light output thanks to high-power LED
- Quick and simple installation
- With exceptional rated lifetimes
- Zero restrike time
- A compact lightweight construction
- Provides additional benefits of energy savings
- Significantly reduced relamp maintenance costs.
Areas of application
- Suitable for indoor and outdoor applications
- Commercial lighting: Supermarket/Shops/Exhibition hall/Parking place/gas station;
- Public lighting: library/School/Tunnel/Metro/Bus/Train/Bus station, railway/station, airport;
- Industrial lighting: Factory/Warehouse and Etc.
Product features
- Lower Power Consumption = Lower Energy Bills and Less CO2 Emissions Maximum Energy Saving = Runs at 20% or 0% LED Power when no presence is detected
- CE(Europe), SAA (Australia) and RoHS
- Waterproof, dust-proof, corrosion proof, Pressure-proof
- Type of protection: IP65
- High efficiency with up to 130lm/W, super high brightness and effectiveness
- Environmental friendly : without mercury, ultraviolet(UV) and infra-red light
- Quality materials providing 50,000 hours lifetime
- 5 year warranty
Working mode you can choose:
-

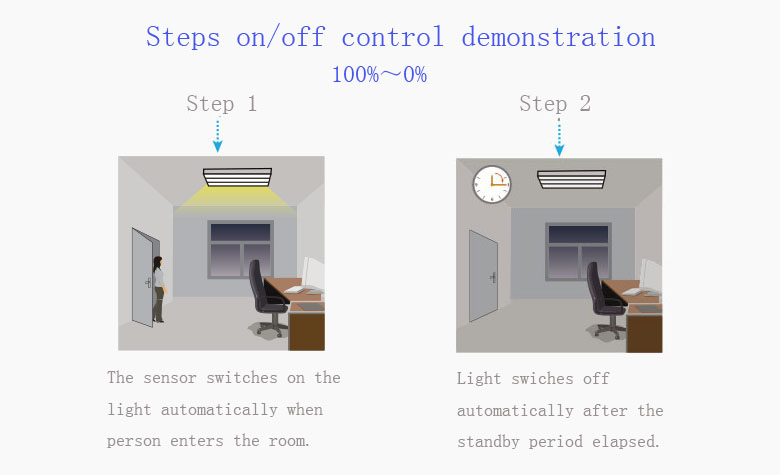

- Microwave Sensor On-off Function 100%～0%.
- This sensor is a motion switch, turn on the light on detection of people movement, and turn off after a per-selected hold time when there is no people around.
-

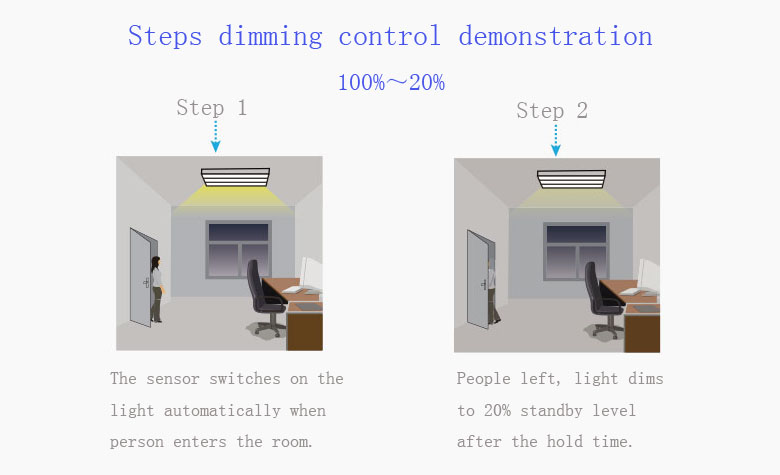

- Microwave Sensor Auto-dimming utilises 100%～dimmed light (10%, 20%, 30%, 40%, 50%, optional).
-
- Microwave Sensor On-off and Auto-dimming utilises 100%～dimmed light (10%, 20%, 30%, 40%, 50%, optional)～0%.

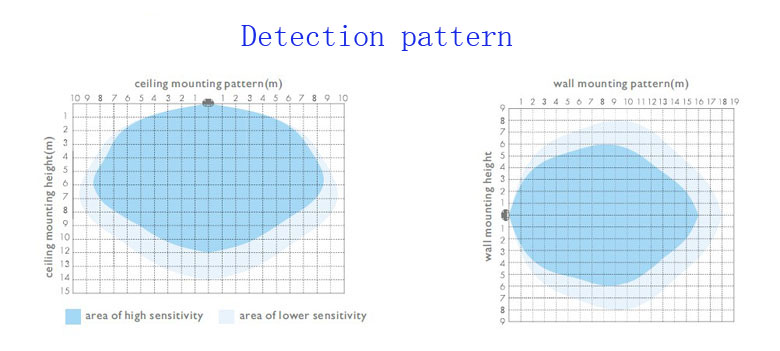

Detection Pattern:

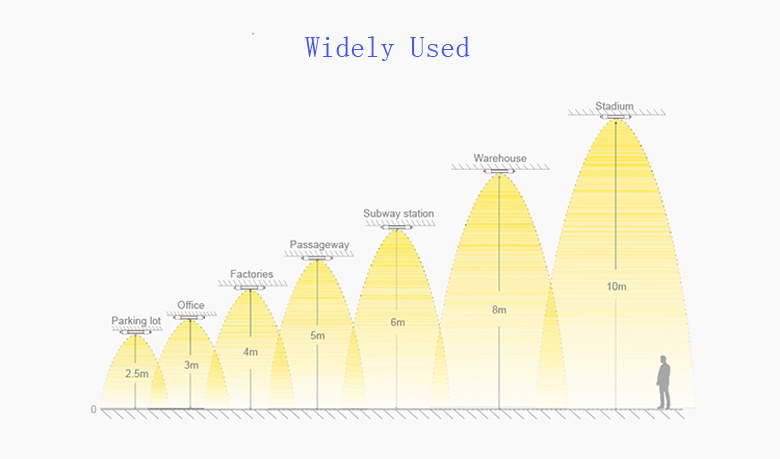

Microwave motion sensor LED tri-proof lighting application:
| Attribute | Value |
|---|---|
| Item No.: | OS-MSTPL50W-1.2m-PC |
| Product Type: | Tri-proof Light |
| Operating voltage: | AC85-265V |
| Switched power: | Max.400W(capacitive) Max.800w(resistive) |
| Standby power: | <1w |
| Working Mode: | 100%～0%，100%～20%，100%～20%～0% |
| Detection angle: | 30~ 170° |
| Detection Range: | 12m(Dia.)x6m(H) |
| Mounting height: | 2.5m～5m【Max: 10m】 |
| Sensor principle: | microwave motion detector |
| Microwave Frequency: | 5.8HGz+/-75MHz |
| Microwave power: | <0.2mW |
| Hold time: | 5s/30s/1min/5min/10min/20min/30min/1h |
| Standby period: | 0s/10s/1min/5min/10min/30min/1h/+∞ |
| Warranty: | 5 Yrs |
| Certificates & standards: | SAA, C-tick, CE, Rohs |
| Energy efficiency class: | A+ |
| IP65 | |
| Yes | |
| Temperature range in operation: | -20…+50 °C |
| Temperature range at storage: | -20…+80 °C |
| Attribute | Value |
|---|---|
| Body material: | Polycarbonate (PC) |
| Product color: | White |
| Cover: | Striped/ Frosted |
| Cover material | Polycarbonate (PC) |
| Length: | 1275 mm |
| Width: | 135 mm |
| Depth: | 93 mm |
| Weight (Unpackaged Single Unit): | 2600 g |
| Lum. Fixing: | Surface mounted, or suspended |
| Attribute | Value |
|---|---|
| Power Consumption: | 50.0 Watts |
| Voltage Range: | 85-265 V |
| Type of current: | AC |
| Nominal current: | 1200 mA |
| Frequency Range: | 50/60 Hz |
| Power Factor: | >=0.95 |
| LVD Certified: | Yes |
| EN: | EN-60598 |
| Attribute | Value |
|---|---|
| Luminous flux | >5000 lm |
| Lumens per Watt: | 100-130 lm/W |
| Correlated Colour Temperature (CCT): | 4000 K |
| Colour Temperature: | Neutral White |
| Colour Rendering Index (CRI): | >=80 Ra |
| Beam Angle: | 120º |
| LED Manufacturer: | Epistar |
| LED Type: | Surface mounted device (SMD) |
| LED Size: | 2835 |
| Lifetime: | 50000 h |
| Number of switching cycles: | 200000 |
| Attribute | Value |
|---|---|
| Dimensions (L x W x H): | 1280mm x 145mm x 103 mm |
| Gross weight: | 2.75kg |
| Volume: | 19.12 dm³ |
| Unit of 6 | |
| Dimensions (L x W x H): | 1300mm*430mm*210mm |
| Gross weight: | 16.13 kg |
| Volume: | 117.39 dm³ |
