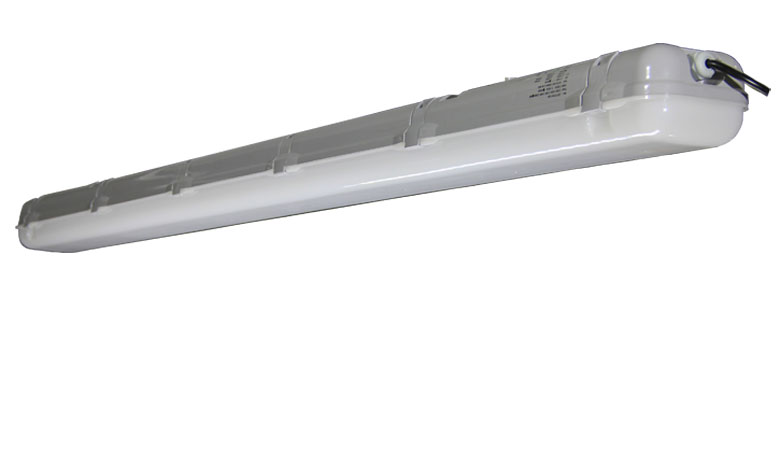

LED Tri-proof Lighting PC Housing 1500mm 60w 6600Lm 6000K
| Power: | 60 W |
| LED efficiency: | 110 -130Lm/w |
| Color Temperature(CCT): | 6000 K |
| Luminous Flux (LM): | >6000 LM |
| Certification: | CE, Rohs, SAA, C-Tick, UL |
| Warranty: | 3-5 Years |
Product benefits
- Functional design
- High light output thanks to high-power LED
- Quick and simple installation
- With exceptional rated lifetimes
- Zero restrike time
- A compact lightweight construction
- Provides additional benefits of energy savings
- Significantly reduced relamp maintenance costs.
Areas of application
- Suitable for indoor and outdoor applications
- Commercial lighting: Supermarket/Shops/Exhibition hall/Parking place/gas station;
- Public lighting: library/School/Tunnel/Metro/Bus/Train/Bus station, railway/station, airport;
- Industrial lighting: Factory/Warehouse and Etc.
Product features
- Waterproof, dust-proof, corrosion proof
- Type of protection: IP65
- Efficacy up to 100-130 LPW
- Input Voltage: 85-265VAC
- Powerfactor(PF):>95%
- Epistar Chip
| Attribute | Value |
|---|---|
| Item No.: | OS-TPL60W-1.5m-PC |
| Product Type: | Tri-proof Light |
| Warranty: | 3-5 Yrs |
| Certificates & standards: | SAA, C-tick, CE, Rohs |
| Energy efficiency class: | A+ |
| IP65 | |
| Yes | |
| Temperature range in operation: | -20…+50 °C |
| Temperature range at storage: | -20…+80 °C |
| Attribute | Value |
|---|---|
| Body material: | Polycarbonate (PC) |
| Product color: | White |
| Cover material: | Polycarbonate (PC) |
| Cover: | Striped/ Frosted |
| Construction: | Extruded Polycarbonate (PC), AL sheet and PC diffuser |
| Length: | 1575 mm |
| Width: | 135 mm |
| Depth: | 93 mm |
| Weight (Unpackaged Single Unit): | 3500 g |
| Lum. Fixing: | Surface mounted, or suspended |
| Attribute | Value |
|---|---|
| Power Consumption: | 60.0 Watts |
| Voltage Range: | 85-265 V |
| Type of current: | AC |
| Nominal current: | 1450 mA |
| Frequency Range: | 50/60 Hz |
| Power Factor: | >=0.95 |
| Dimming: | Non-dimmable |
| LVD Certified: | Yes |
| EN: | EN-60598 |
| Attribute | Value |
|---|---|
| Luminous flux | >6000 lm |
| Lumens per Watt: | 110-130 lm/W |
| Correlated Colour Temperature (CCT): | 6000 K |
| Colour Temperature: | White |
| Colour Rendering Index (CRI): | >=80 Ra |
| Beam Angle: | 120º |
| LED Manufacturer: | Epistar |
| LED Type: | Surface mounted device (SMD) |
| LED Size: | 2835 |
| Lifetime: | 50000 h |
| Number of switching cycles: | 200000 |
| Attribute | Value |
|---|---|
| Dimensions (L x W x H): | 1590mm x 140mm x 100mm |
| Gross weight: | 3.55 kg |
| Volume: | 22.26 dm³ |
| Unit of 6 | |
| Dimensions (L x W x H): | 1600mm x 430mm x 210mm |
| Gross weight: | 21.70 kg |
| Volume: | 144.48 dm³ |
