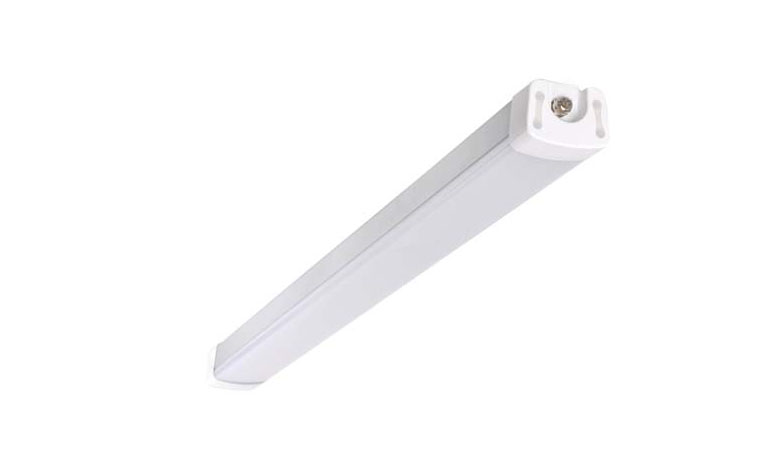

LED Tri-proof Lighting AL Housing 900mm 40w 4200Lm 4000K
| Power: | 40 W |
| LED efficiency: | 100-130 Lm/w |
| Color Temperature(CCT): | 4000 K |
| Luminous Flux (LM): | >4000 LM |
| Certification: | CE, Rohs, SAA, C-Tick, UL |
| Warranty: | 5 Year |
Product benefits
- Functional design
- Multi proof LED fixture
- Excellent heat dissipation
- High light output thanks to high-power LED
- Quick and simple installation
- With exceptional rated lifetimes
- Zero restrike time
- A compact lightweight construction
- Provides additional benefits of energy savings
- Significantly reduced relamp maintenance costs.
Areas of application
- Suitable for indoor and outdoor applications
- Commercial lighting: Supermarket/Shops/Exhibition hall/Parking place/gas station;
- Public lighting: library/School/Tunnel/Metro/Bus/Train/Bus station, railway/station, airport;
- Industrial lighting: Factory/Warehouse and Etc.
Product features
- Waterproof, dust-proof, corrosion proof and impact proof(IK10).
- Type of protection: IP65
- Efficacy up to 130 LPW
- Input Voltage: 85-265VAC
- Powerfactor(PF):>95%
- Epistar Chip
| Attribute | Value |
|---|---|
| Item No.: | OS-TPL40W-0.9m-AL |
| Product Type: | Tri-proof Light |
| Warranty: | 5 Yrs |
| Certificates & standards: | SAA, C-tick, CE, Rohs |
| Energy efficiency class: | A+ |
| IP65 | |
| Yes | |
| Temperature range in operation: | -20…+50 °C |
| Temperature range at storage: | -20…+80 °C |
| Attribute | Value |
|---|---|
| Body material: | Aluminium (AL) |
| Product color: | Silver |
| Cover material: | Polycarbonate (PC) |
| Cover color: | Milky or Clear cover |
| Length: | 900 mm |
| Width: | 90 mm |
| Depth: | 74 mm |
| Weight (Unpackaged Single Unit): | 2.60 Kg |
| Lum. Fixing: | Surface mounted, or suspended |
| Attribute | Value |
|---|---|
| Power Consumption: | 40.0 Watts |
| Voltage Range: | 85-265 V |
| Type of current: | AC |
| Nominal current: | 1000 mA |
| Frequency Range: | 50/60 Hz |
| Power Factor: | >=0.95 |
| Dimming: | Non-dimmable |
| LVD Certified: | Yes |
| EN: | EN-60598 |
| Attribute | Value |
|---|---|
| Luminous flux | >4000 lm |
| Lumens per Watt: | 100-130 lm/W |
| Lighting Method: | Back-lit |
| Correlated Colour Temperature (CCT): | 4000 K |
| Colour Temperature: | Neutral White |
| Colour Rendering Index (CRI): | >=80 Ra |
| Beam Angle: | 120º |
| LED Manufacturer: | Epistar |
| LED Type: | Surface mounted device (SMD) |
| LED Size: | 2835 |
| Lifetime: | 50000 h |
| Number of switching cycles: | 200000 |
| Attribute | Value |
|---|---|
| Dimensions (L x W x H): | 930mm x 95mm x 80mm |
| Gross weight: | 2.8 kg |
| Volume: | 7.06 dm³ |
| Unit of 6 | |
| Dimensions (L x W x H): | 950mm*250mm*210mm |
| Gross weight: | 16.90 kg |
| Volume: | 49.87 dm³ |
