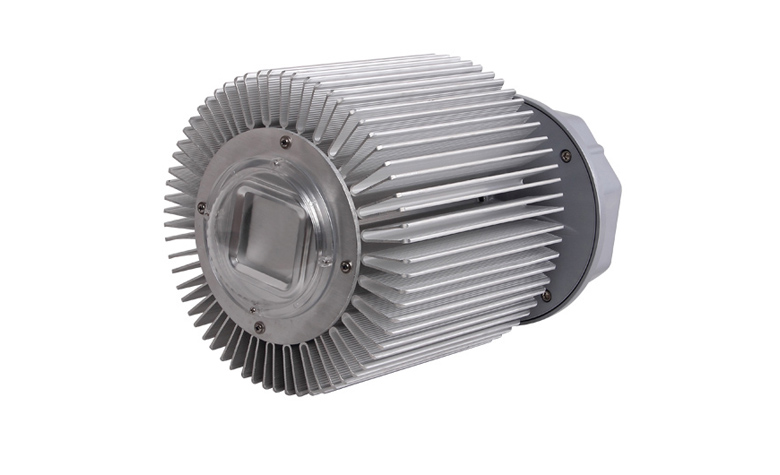

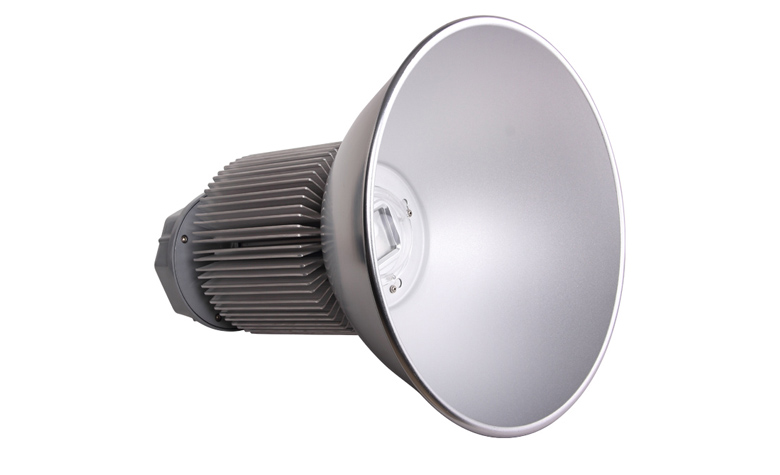

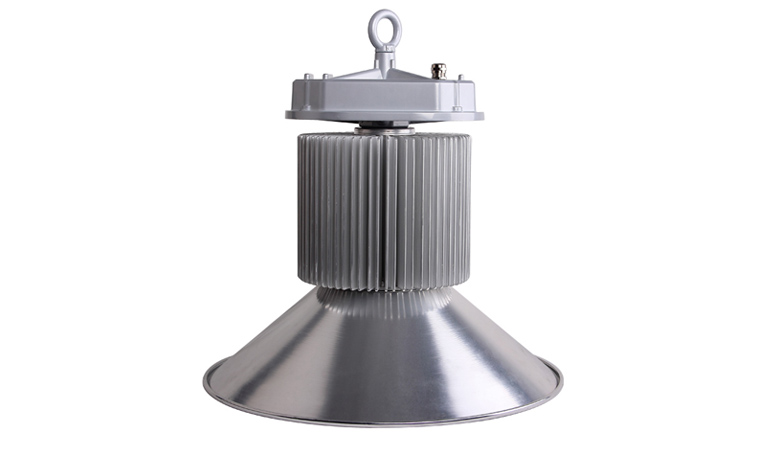

led patriot lighting products 250W high power China warehouse lamp
| Power: | 250 W |
| LED efficiency: | 130 Lm/w |
| Color Temperature(CCT): | 6000 K |
| Luminous Flux (LM): | >32,000 LM |
| Certification: | CE, Rohs, SAA, C-Tick, UL TUV |
| Warranty: | 5 Year |
Product benefits
- Functional design
- High light output thanks to high-power LED
- Quick and simple installation
- With exceptional rated lifetimes
- Zero restrike time
- A compact lightweight construction
- Provides additional benefits of energy savings
- Significantly reduced relamp maintenance costs.
Areas of application
- For over 40 ft. (12 meter) applications
- Education Facilities Lighting
- Industrial & Warehouse
- Recreation & Public Venue Lighting
- Retail & Grocery Lighting
- assembly lines
- inspection areas
- production bays
- storage areas
- commercial and retail areas
Product features
- Very bright and functional outdoor LED luminaires
- Efficacy up to 130 LPW
- Input Voltage: 85-265VAC
- Meanwell Driver
- Cree or Bridgelux chip
- Type of protection: IP54
| Attribute | Value |
|---|---|
| Item No.: | OS-HBL-250W01 |
| Product Type: | High Bay Light |
| Warranty: | 5 Yrs |
| Certificates & standards: | SAA, C-tick, CE, Rohs UL TUV |
| Energy efficiency class: | A+ |
| IP54 | |
| Yes | |
| Temperature range in operation: | -20…+50 °C |
| Temperature range at storage: | -20…+80 °C |
| Attribute | Value |
|---|---|
| Body material: | Aluminum |
| Product color: | Grey/Black |
| Cover material: | Aluminum Body |
| Reflector material: | Aluminum |
| Length: | 200 mm |
| Diameter: | 240 mm |
| Weight (Unpackaged Single Unit): | 9900 g |
| Lum. Fixing: | Recessed in ceiling grid, surface mounted, or suspended |
| Attribute | Value |
|---|---|
| Power Consumption: | 250.0 Watts |
| Voltage Range: | 85-265 V |
| Type of current: | AC |
| Nominal current: | 4800 mA |
| Frequency Range: | 50/60 Hz |
| Power Factor: | >0.95 |
| Dimming: | Non-dimmable |
| LVD Certified: | Yes |
| EN: | EN-60598 |
| Attribute | Value |
|---|---|
| Luminous flux | 32,000 lm |
| Lumens per Watt: | 130.0 lm/W |
| Correlated Colour Temperature (CCT): | 6000 K |
| Colour Temperature: | Nature White |
| Colour Rendering Index (CRI): | >=80 Ra |
| Beam Angle: | 45º/60º/90º/120º |
| LED Manufacturer: | Bridgelux or Cree |
| LED Type: | COB LED or SMD led |
| Lifetime: | 50000 h |
| Number of switching cycles: | 200000 |
| Attribute | Value |
|---|---|
| Dimensions (L x W x H): | 300mm x 300mm x 420mm |
| Gross weight: | 10700.00 g |
| Volume: | 37.80 dm³ |
