LED panel light square 200x200mm 14w 6000k 1400lm
| Power: | 14 W |
| Dimension: | 200x200mm*H13mm |
| Color Temperature(CCT): | 6000 K |
| Luminous Flux (LM): | >1400 LM |
| Certification: | CE, Rohs, SAA, C-Tick, UL |
| Warranty: | 5 Year |
Product benefits
- Evenly distributed light
- Designed to easily install in T-grid drop ceiling systems
- LED Driver and Light Engine accessible from below the ceiling
- Uniform light distribution across the entire face of the luminaire with no hotspots or banding
Areas of application
- T-Grid Ceiling Applications
- Office
- Healthcare
- Commercial
- Retail
- Conference rooms
- Corridors
- Living rooms
Product features
- Ceiling LED luminaires with aluminum frame in high value design
- For ceiling mounting or pendant mounting
- Energy efficient luminaire delivers 90-110 Lumens per Watt
- Long rated life: L85 @ 50,000 hours
| Attribute | Value |
|---|---|
| Item No.: | OS-SP4-F20020014W |
| Product Type: | Panel Light |
| Warranty: | 5 Yrs |
| Certificates & standards: | SAA, C-tick, CE, Rohs,UL |
| 0/1-10V, PWM Available | |
| Available | |
| 1h, 2h or 3h Available | |
| Energy efficiency class: | A+ |
| IP44 | |
| Yes | |
| Temperature range in operation: | -20…+50 °C |
| Temperature range at storage: | -20…+80 °C |
| Attribute | Value |
|---|---|
| Body material: | Aluminum |
| Product color: | White |
| Cover material: | PMMA+PC |
| Construction: | Extruded Alumnium, PMMA sheet and PC diffuser |

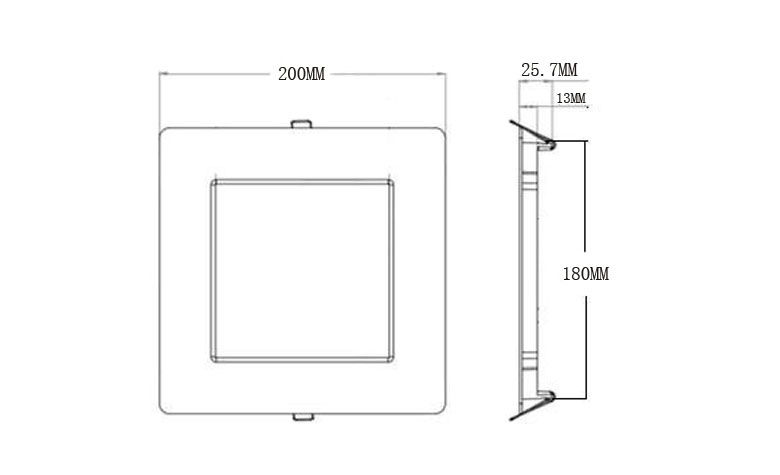

| Dimension: | 200x200mm*H13mm |
| Cut-out: | 180x180mm |
| Weight (Unpackaged Single Unit): | 510 g |
| Lum. Fixing: | Recessed in ceiling grid |
| Attribute | Value |
|---|---|
| Power Consumption: | 14.0 Watts |
| Voltage Range: | 85-265 V |
| Type of current: | AC |
| Nominal current: | 600 mA |
| Frequency Range: | 50/60 Hz |
| Power Factor: | >=0.95 |
| LVD Certified: | Yes |
| EN: | EN-60598 |
| Attribute | Value |
|---|---|
| Luminous flux | 1400 lm |
| Lumens per Watt: | 100 lm/W |
| Lighting Method: | Edge-lit |
| Correlated Colour Temperature (CCT): | 6000 K |
| Colour Temperature: | Nature White |
| Colour Rendering Index (CRI): | >=80 Ra |
| Beam Angle: | 120º |
| LED Manufacturer: | Epistar |
| LED Type: | Surface mounted device (SMD) |
| LED Size: | 2835 |
| Lifetime: | 50000 h |
| Number of switching cycles: | 200000 |
| Attribute | Value |
|---|---|
| Dimensions (L x W x H): | 220mm x 220mm x 30mm |
| Gross weight: | 550.00 g |
| Volume: | 1.46 dm³ |
