You are here: Home » Offroad LED Light Bars » 11″-20″Offroad LED Light Bars » 20 inch LED Light Bar 240w Dual Row Spot Beam Truck Light Bar

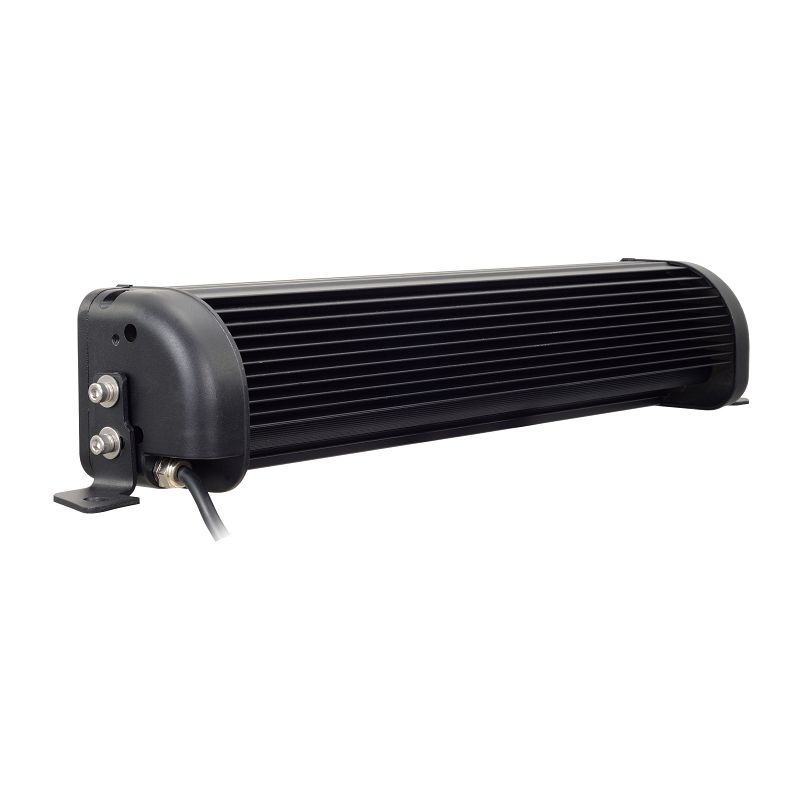

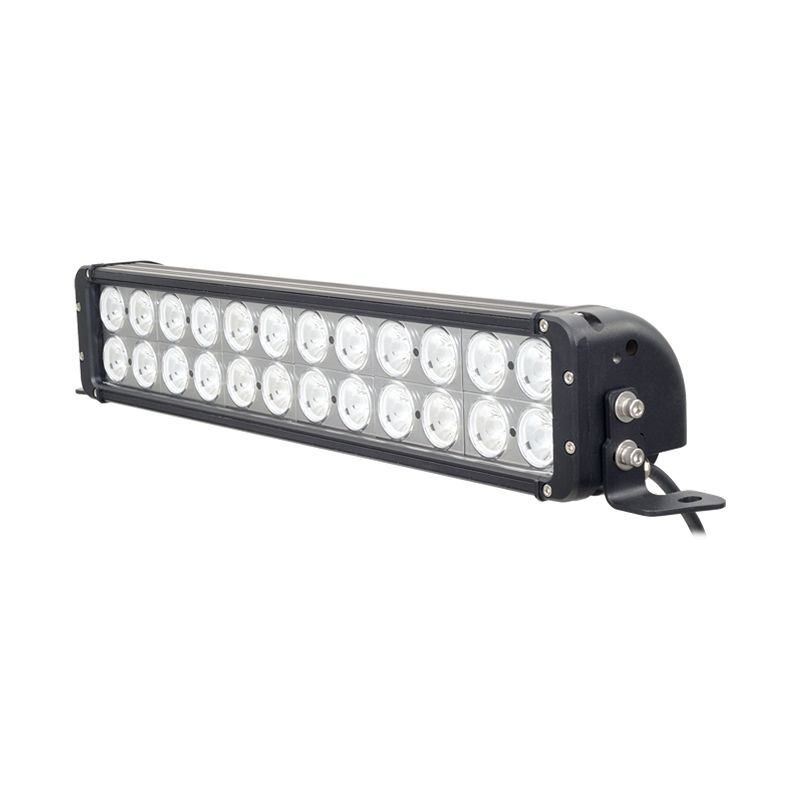

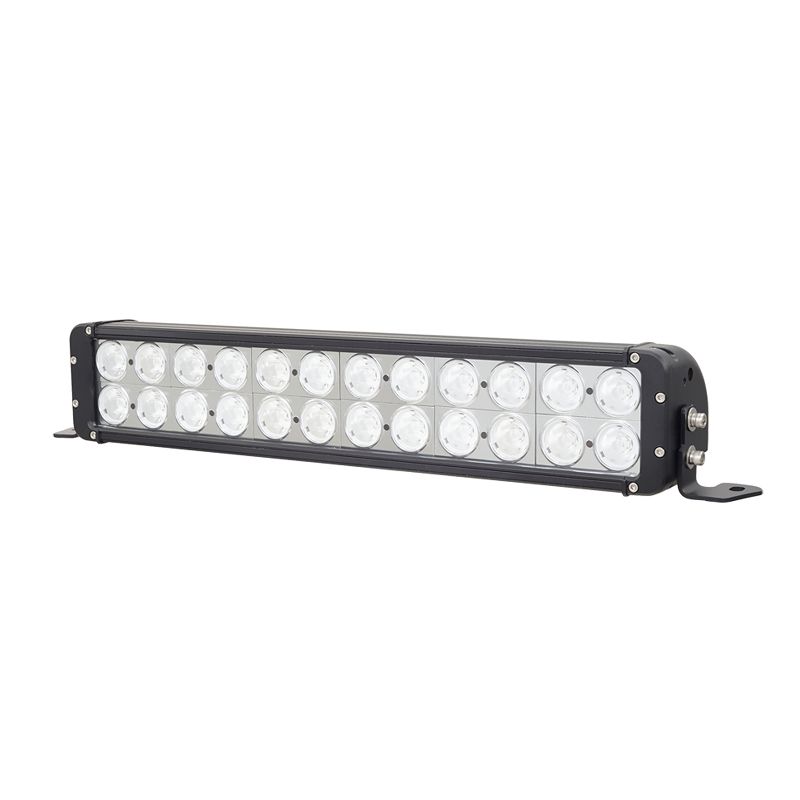

20 inch LED Light Bar 240w Dual Row Spot Beam Truck Light Bar
| Size: | 20inch |
| Power: | 240W |
| Chip Brand: | CREE |
| Protection Rate: | IP67 |
| Certifications: | CE/FCC/ROHS Compliant |
| Single LED power | 10W |
Power: 240W
Number of chips: 24pcs 10w OSRAM/CREE chips
Operating Voltage: 9~60V DC
Lumens Output: 20640 LM
Color Temperature: 6000k
Working Temp.: -40 °C~+80 °C
Beam: 10°spot beam, 30°Flood
Life Time: above 30,000 hours
Dimension (mm) :517*98*92
Remark:
1. Spot/Flood for 20W~80W.Spot/Flood/Combo for 120W~240W
2. Two mounting brackets options (bottom mount brackets, side mount brackets). The lamp is with bottom mount bracket by default. $3/set for the side mount brackets.
| Attribute: | Value: |
|---|---|
| Item: | OS-LLB-045 |
| Volt: | 9~60V DC |
| LED Chip: | 10W |
| Chip brand: | OSRAM/CREE |
| Lumens: | 86 lm/W |
| Color Temperature: | 6000k |
| Material: | Die-cast aluminum housing |
| Lens Material: | PC |
| Working Temp: | -40 °C~+80 °C |
| Beam: | 10°spot beam, 30°Flood |
| Life Time: | Above 30,000 hours |
| Warranty: | 1 Year |
