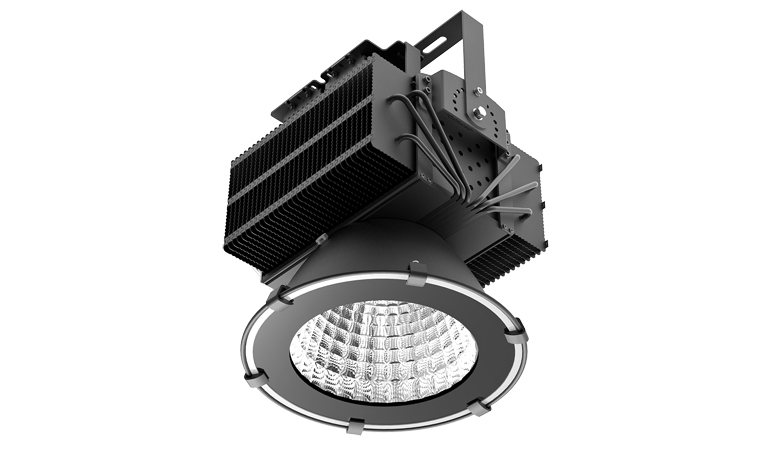

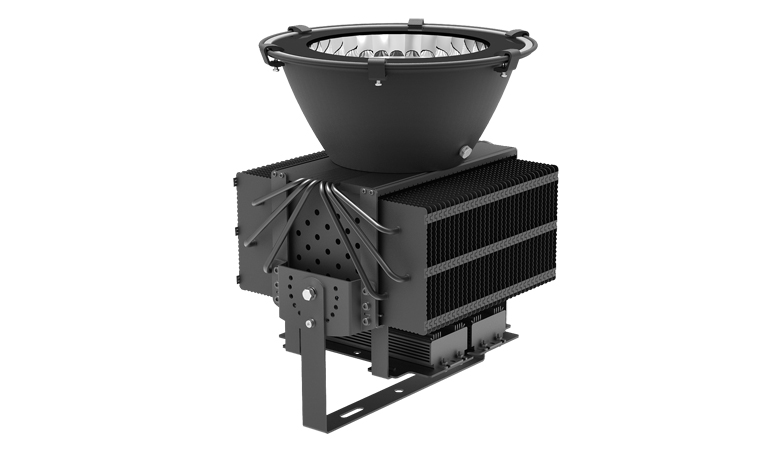

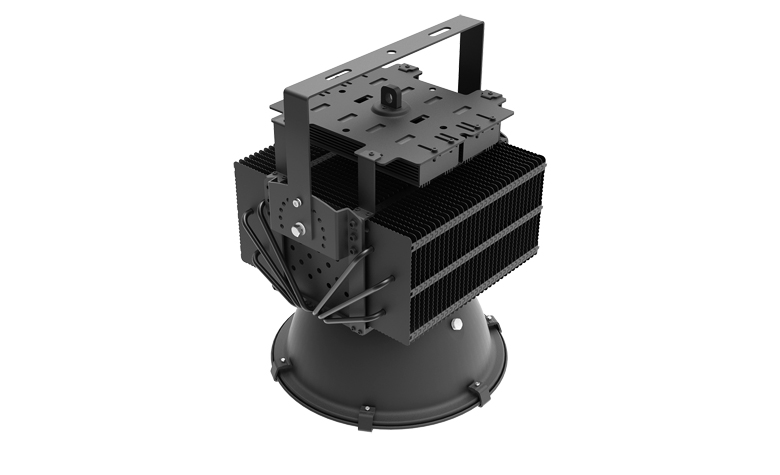

led high bay light 500w 6000k 110lm/w Cree outdoor 5years warranty
| Power: | 500 W |
| LED efficiency: | 110 Lm/w |
| Color Temperature(CCT): | 6000 K |
| Luminous Flux (LM): | >55,000 LM |
| Certification: | CE, Rohs, SAA, C-Tick, UL |
| Warranty: | 5 Year |
Product benefits

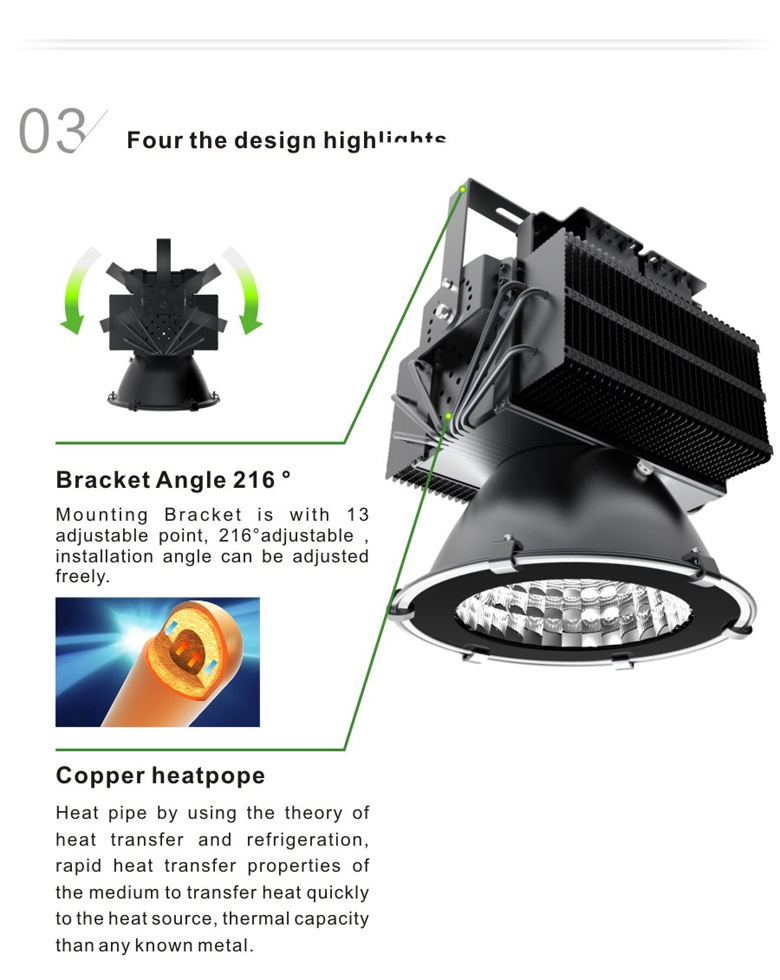

- Bracket Angle 216°

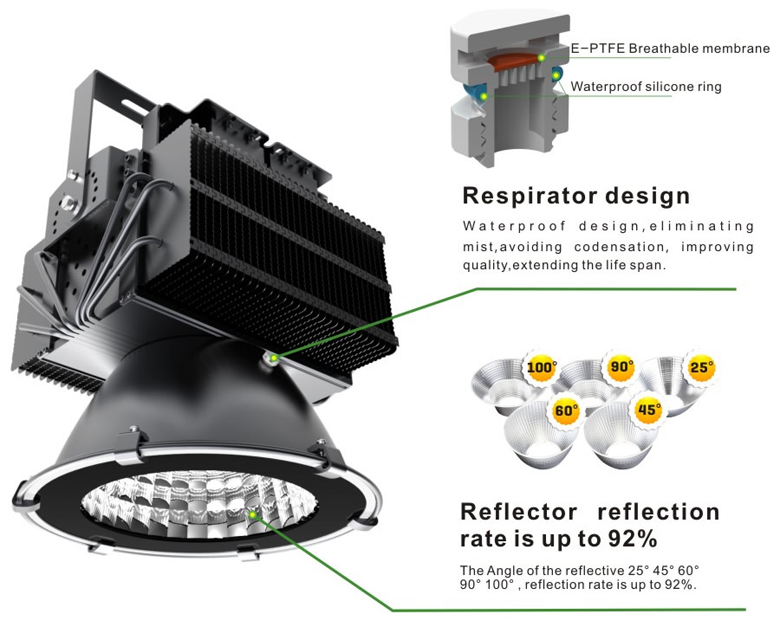

- Respirator design
- Reflector reflection rate is up to 92%

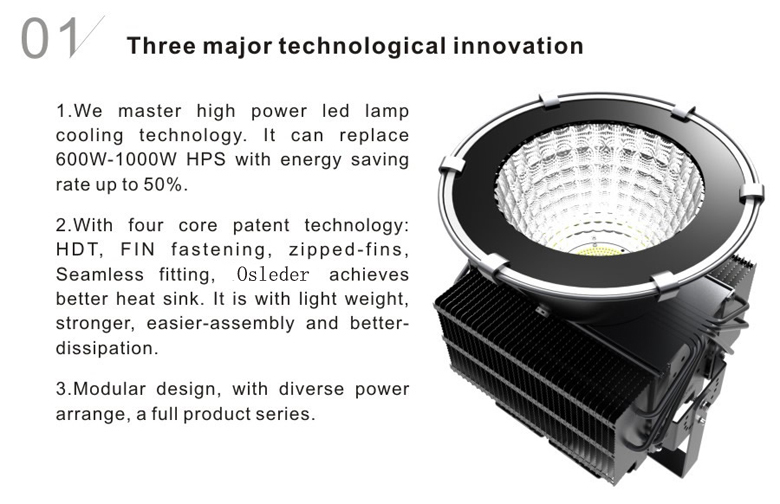

- Efficient heat dissipation
- Light weight
- Professional design
- Protection rate: IP67
- Coopper heatpipe
Areas of application
- For over 40 ft. (12 meter) applications
- Education Facilities Lighting
- Industrial & workshops
- Stadiums
- Docks
- Golf courses
- Construction lighting
- Square
Product features
- Very bright and functional indoor and outdoor LED luminaires
- Efficacy up to 110 LPW
- Input Voltage: 90-305VAC
- Meanwell Driver
- Cree or Bridgelux chip
- Type of protection: IP67
| Attribute | Value |
|---|---|
| Item No.: | OS-HBL-500WHF |
| Product Type: | High Bay Light |
| Warranty: | 5 Yrs |
| Certificates & standards: | SAA, C-tick, CE, Rohs, UL |
| Energy efficiency class: | A+ |
| IP67 | |
| Yes | |
| Temperature range in operation: | -20…+50 °C |
| Temperature range at storage: | -20…+80 °C |
| Attribute | Value |
|---|---|
| Body material: | Aluminum |
| Product color: | Grey/Black |
| Cover material: | Glass |
| Reflector material: | Aluminum |

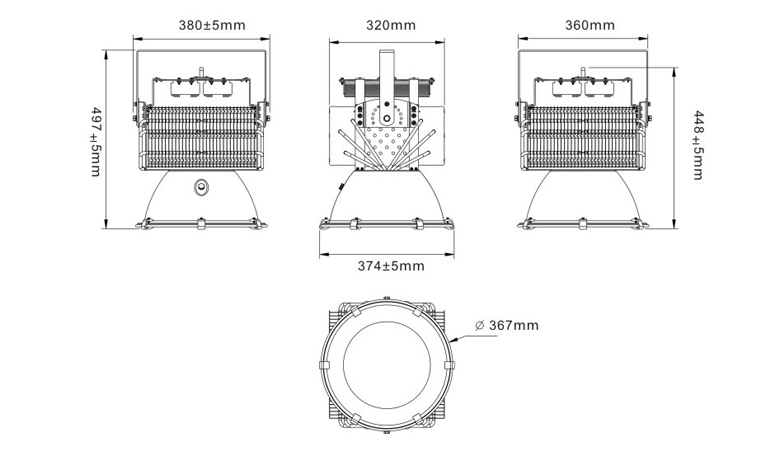

| Dimension: | D374* H497 mm |
| Weight (Unpackaged Single Unit): | 13.40 kg |
| Lum. Fixing: | Recessed in ceiling grid, surface mounted, or suspended |
| Attribute | Value |
|---|---|
| Power Consumption: | 500.0 Watts |
| Voltage Range: | 90-305 V |
| Type of current: | AC |
| Nominal current: | 6000 mA |
| Frequency Range: | 50/60 Hz |
| Power Factor: | >0.95 |
| Dimming: | Non-dimmable |
| LVD Certified: | Yes |
| EN: | EN-60598 |
| Attribute | Value |
|---|---|
| Luminous flux | 55,000 lm |
| Lumens per Watt: | 110.0 lm/W |
| Correlated Colour Temperature (CCT): | 6000 K |
| Colour Temperature: | Day White |
| Colour Rendering Index (CRI): | >=80 Ra |
| Beam Angle: | 25°/45º/60º/90º/120º |
| LED Manufacturer: | Cree |
| LED Type: | SMD led |
| Lifetime: | 50000 h |
| Number of switching cycles: | 200000 |
| Attribute | Value |
|---|---|
| Dimensions (L x W x H): | 485mm x 485mm x 550mm |
| Gross weight: | 15.90 kg |
| Volume: | 129.38 dm³ |
