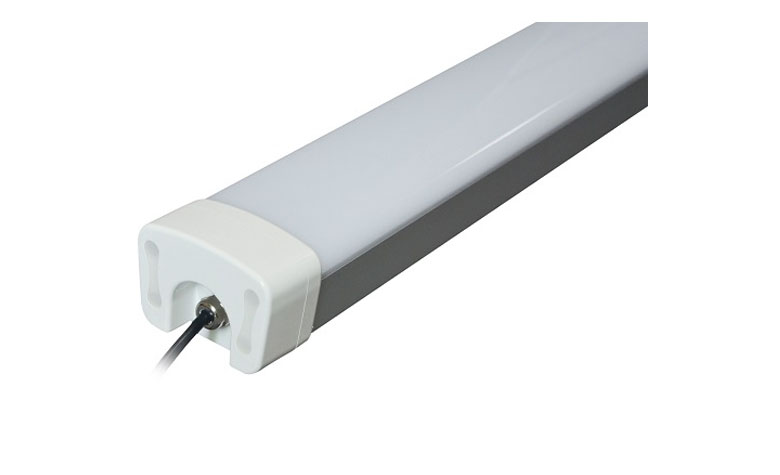

DALI Dimmable LED Tri-proof Lighting AL Housing 1200mm 50w 5500Lm 6000K
| Power: | 50 W |
| Control type: | DALI Dimming |
| Color Temperature(CCT): | 6000 K |
| Luminous Flux (LM): | >5500 LM |
| Certification: | CE, Rohs, SAA, C-Tick, UL |
| Warranty: | 5 Year |
An Introduction to DALI
Reliable, bi-directional digital communication
DALI is the acronym for Digital Addressable Lighting Interface. DALI as a concept stands for an intelligent lighting management system that provides maximum control and flexibility in an completely open standard.
DALI is not a single feature. It is a standard industry protocol which allows DALI-compliant components (ballasts, control systems, sensors, controllers, switches, etc.) from different manufacturers to be mixed and matched together seamlessly into complete systems. With DALI, design and user flexibility are dramatically improved vs. conventional, proprietary systems.
DALI benefits
- Reliable communication under all conditions
- Reduced maintenance costs and complexity
- Detailed system status at individual component level
- Continuous dimming
- Extended control features
- Global and open standard
Operation Reference No.1:
Operation Reference No.2:
Operation Reference No.3:
Product benefits
- Functional design
- High light output thanks to high-power LED
- Quick and simple installation
- With exceptional rated lifetimes
- Zero restrike time
- A compact lightweight construction
- Provides additional benefits of energy savings
- Significantly reduced relamp maintenance costs.
Areas of application
- Suitable for indoor and outdoor applications
- Commercial lighting: Supermarket/Shops/Exhibition hall/Parking place/gas station;
- Public lighting: library/School/Tunnel/Metro/Bus/Train/Bus station, railway/station, airport;
- Industrial lighting: Factory/Warehouse and Etc.
Product features
- Waterproof, dust-proof, corrosion proof
- Type of protection: IP65
- Efficacy up to 110 LPW
- Input Voltage: 85-265VAC
- Powerfactor(PF):>95%
- Epistar Chip
| Attribute | Value |
|---|---|
| Item No.: | OS-DALITPL50W-1.2m-AL |
| Product Type: | DALI Dimmable Tri-proof Light |
| Control type: | DALI Dimming |
| Warranty: | 5 Yrs |
| Certificates & standards: | SAA, C-tick, CE, Rohs |
| Energy efficiency class: | A+ |
| IP65 | |
| Yes | |
| Temperature range in operation: | -20…+50 °C |
| Temperature range at storage: | -20…+80 °C |
| Attribute | Value |
|---|---|
| Body material: | Aluminium (AL) |
| Product color: | Silver |
| Cover material: | Polycarbonate (PC) |
| Cover color: | Milky or Clear cover |
| Length: | 1200 mm |
| Width: | 90 mm |
| Depth: | 74 mm |
| Weight (Unpackaged Single Unit): | 3.20 Kg |

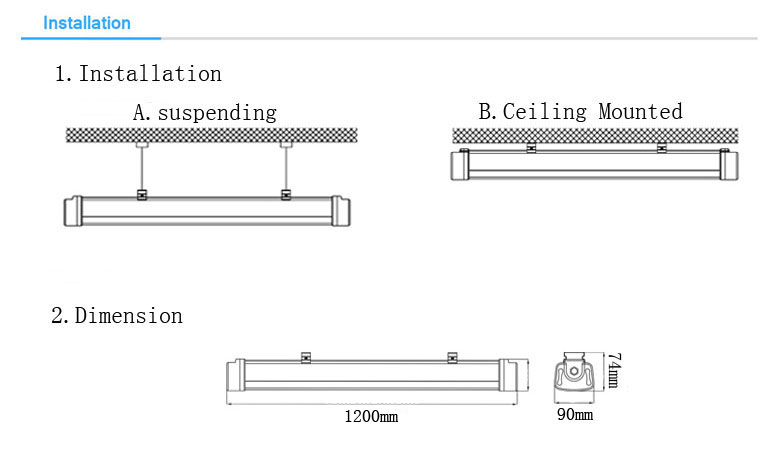

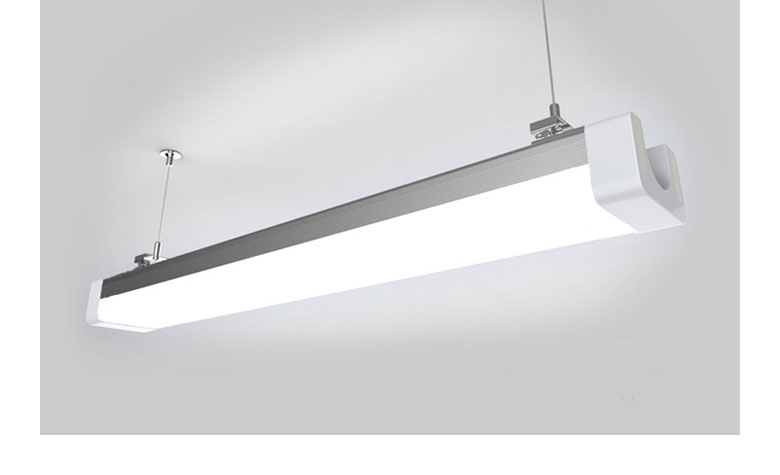

| Lum. Fixing: | Surface mounted, or suspended |
| Attribute | Value |
|---|---|
| Power Consumption: | 50.0 Watts |
| Voltage Range: | 85-265 V |
| Type of current: | AC |
| Nominal current: | 1200 mA |
| Frequency Range: | 50/60 Hz |
| Power Factor: | >=0.95 |
| Dimming: | DALI Dimmable |
| LVD Certified: | Yes |
| EN: | EN-60598 |
| Attribute | Value |
|---|---|
| Luminous flux | 5500 lm |
| Lumens per Watt: | 110.0 lm/W |
| Lighting Method: | Back-lit |
| Correlated Colour Temperature (CCT): | 6000 K |
| Colour Temperature: | Pure White |
| Colour Rendering Index (CRI): | >=80 Ra |

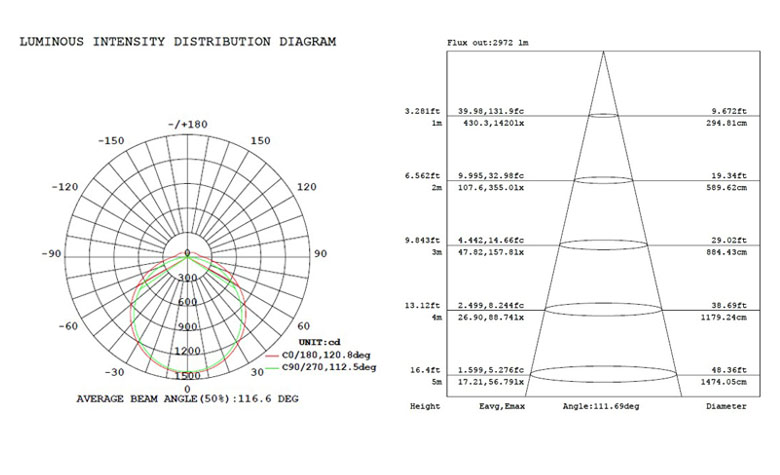

| Beam Angle: | 120º |
| LED Manufacturer: | Epistar |

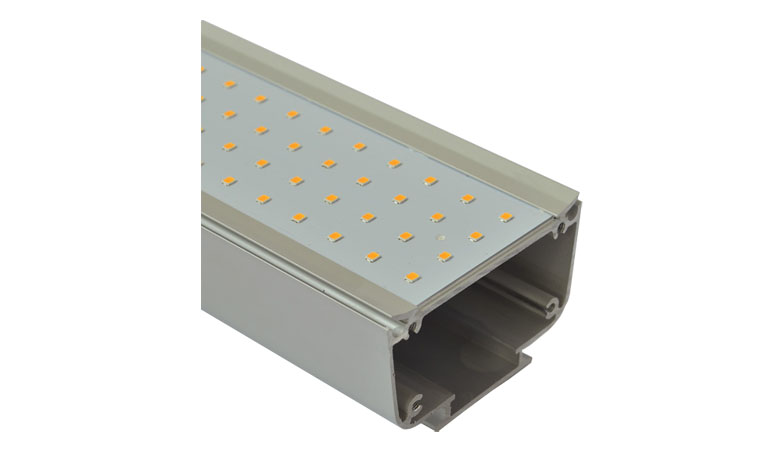

| LED Type: | Surface mounted device (SMD) |
| LED Size: | 2835 |
| Lifetime: | 50000 h |
| Number of switching cycles: | 200000 |
| Attribute | Value |
|---|---|
| Dimensions (L x W x H): | 1230mm x 95mm x 80mm |
| Gross weight: | 3.4 kg |
| Volume: | 9.34 dm³ |
| Unit of 4 | |
| Dimensions (L x W x H): | 1250mm*210mm*170mm |
| Gross weight: | 13.90 kg |
| Volume: | 44.62 dm³ |
