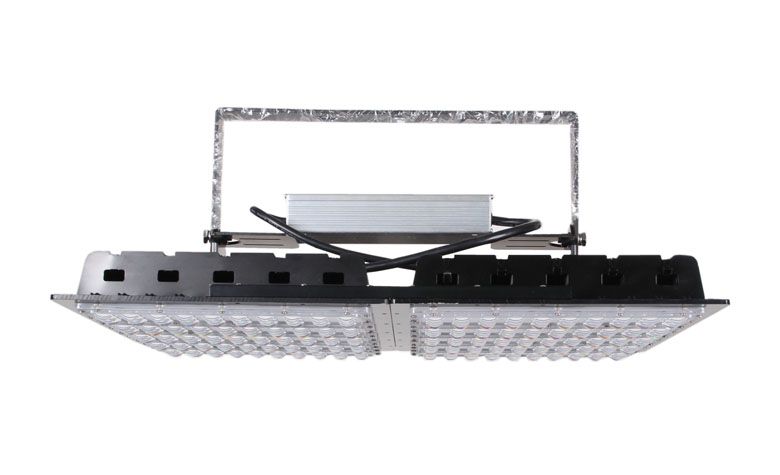

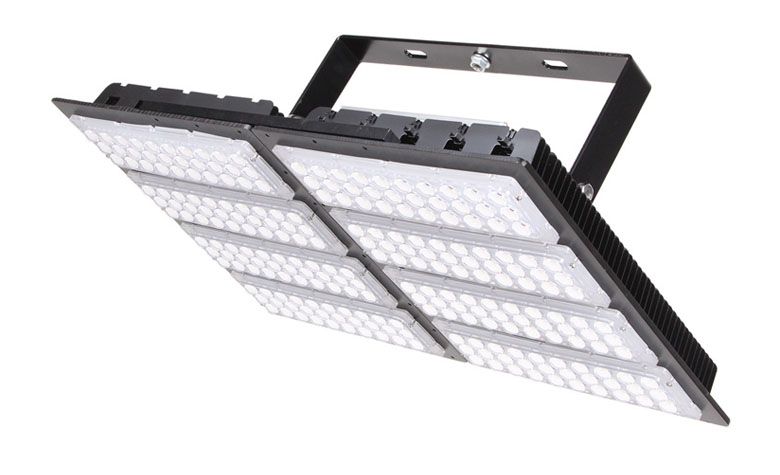

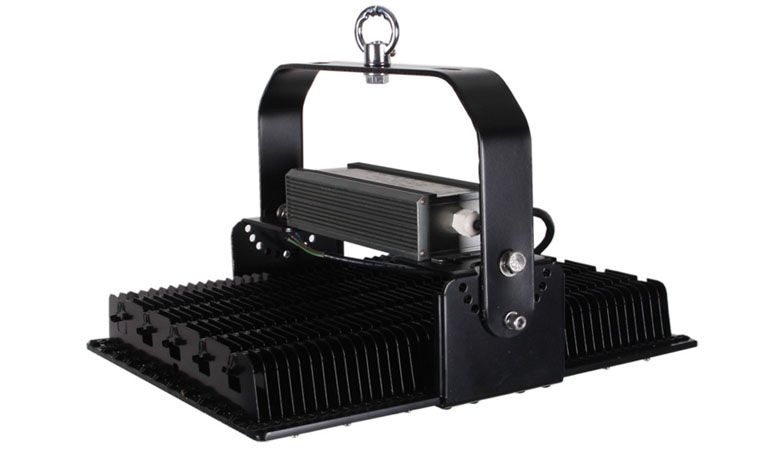

Moudle LED Flood Light 384W 4000k 46080Lm
| Power: | 384 W |
| LED efficiency: | 120 Lm/w |
| Color Temperature(CCT): | 4000 K |
| Luminous Flux (LM): | >46,080 LM |
| Certification: | CE, Rohs, SAA, C-Tick, UL |
| Warranty: | 5 Year |
Product benefits
- Bring the security and safety of high quality illumination to a variety of outdoor areas. With a great look, performance and durability, these fixtures offer versatility while meeting your outdoor lighting requirements.
- High light output thanks to high-power LED
- Quick and simple installation
- With exceptional rated lifetimes
- Zero restrike time
- A compact lightweight construction
- Provides additional benefits of energy savings
- Significantly reduced relamp maintenance costs.
Areas of application
- Building security
- Shipping yards
- Rail yards
- Airport Lighting
- Corporate Campus Lighting
- Healthcare Facilities Lighting
- Parking Structure Lighting
- Petroleum & Convenience Lighting
- Roadway Lighting
- Government Facilities Lighting
Product features
- Very bright and functional outdoor LED luminaires
- Efficacy up to 130 LPW
- Input Voltage: 85-265VAC
- Meanwell Driver
- Epistar or Bridgelux chip
- Type of protection: IP65
| Attribute | Value |
|---|---|
| Item No.: | OS-AERO-384W |
| Product Type: | Flood Light |
| Warranty: | 5 Yrs |
| Certificates & standards: | SAA, C-tick, CE, Rohs,UL |
| Energy efficiency class: | A+ |
| IP65 | |
| Yes | |
| Temperature range in operation: | -20…+50 °C |
| Temperature range at storage: | -20…+80 °C |
| Attribute | Value |
|---|---|
| Body material: | Aluminum |
| Product color: | Black |
| Cover material: | Tempered Glass |
| Reflector material: | Aluminum |
| Length: | 367 mm |
| Width: | 554 mm |
| Depth: | 49 mm |
| Weight (Unpackaged Single Unit): | 5.6 kg |
| Lum. Fixing: | Suspended |
| Attribute | Value |
|---|---|
| Power Consumption: | 384.0 Watts |
| Voltage Range: | 85-265 V |
| Type of current: | AC |
| Nominal current: | 9600 mA |
| Frequency Range: | 50/60 Hz |
| Power Factor: | >0.95 |
| Dimming: | Dimming available |
| LVD Certified: | Yes |
| EN: | EN-60598 |
| Attribute | Value |
|---|---|
| Luminous flux | 46,080 lm |
| Lumens per Watt: | 120.0 lm/W |
| Correlated Colour Temperature (CCT): | 4000 K |
| Colour Temperature: | Nature White |
| Colour Rendering Index (CRI): | >=80 Ra |
| Beam Angle: | 60°, 90°, 120° |
| LED Manufacturer: | Cree, OSRAM, Philips, Nichia, Bridgelux |
| LED Type: | SMD LED |
| Lifetime: | 50000 h |
| Number of switching cycles: | 200000 |
| Attribute | Value |
|---|---|
| Dimensions (L x W x H): | 620mm x 410mm x 190mm |
| Gross weight: | 7.80 kg |
| Volume: | 48.3 dm³ |
